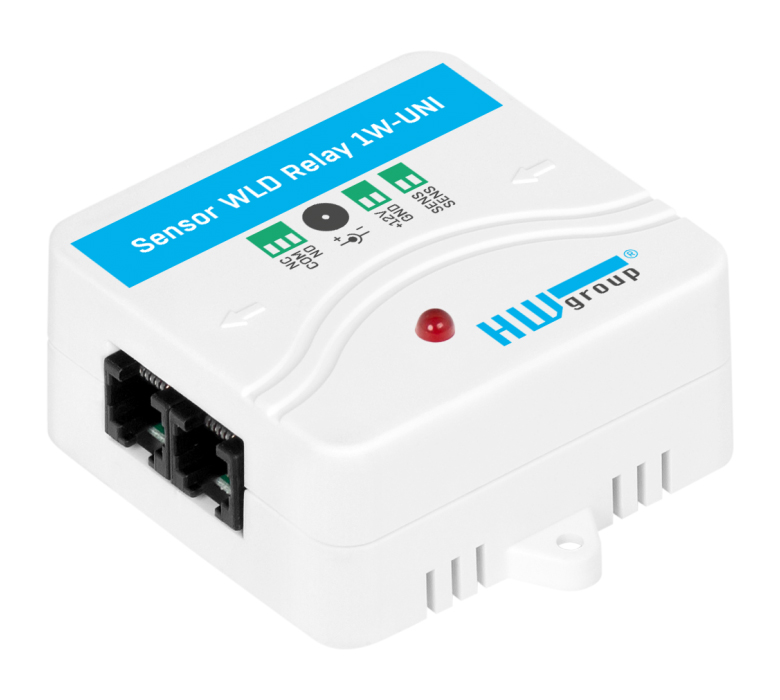

HW Group - Sensor WLD Relay 1W-UNI - 600514
Water leakage relay (NO/NC) with sensor - 2 meters
Producentens varenummer:
600514
Vores artikelnummer:
930038
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - Sensor WLD Relay 1W-UNI - 600514"
A universal water flood sensor detects the occurrence of flooding through a soak detection cable. Soaking or interrupting the cable causes the relay contact (NO / NC) to switch. The sensor cable detects a small amount of water or other liquids. The " WLD sensor cable A " is supplied with a length of 0.4 to 85 m. It can be connected with an extension cable with a length of up to 100 m.
The sensor WLD relay can be used separately with 12 V power supply and relay output or as a sensor with Poseidon 2 connected via a 1-Wire UNI bus.
Sensor WLD relay 1W-UNI detects water, ethylene glycol or other conductive liquids along the length of the connected sensor cable. A water leak or cable disconnection is indicated by activating a relay (NO / NC), or the sensor can be connected to a Poseidon unit via a 1-Wire UNI bus (RJ11).
Scope of delivery: HW Group Sensor WLD Relay 1W-UNI - 600514
The sensor WLD relay can be used separately with 12 V power supply and relay output or as a sensor with Poseidon 2 connected via a 1-Wire UNI bus.
Sensor WLD relay 1W-UNI detects water, ethylene glycol or other conductive liquids along the length of the connected sensor cable. A water leak or cable disconnection is indicated by activating a relay (NO / NC), or the sensor can be connected to a Poseidon unit via a 1-Wire UNI bus (RJ11).
Scope of delivery: HW Group Sensor WLD Relay 1W-UNI - 600514
Features
- Universal water detector for use with Poseidon, Damocles, Ares or HWg-STE plus units.
- The 1W-UNI sensor WLD relay can be connected as a detector via its digital output or as a sensor via the 1Wire-UNI bus
- The connected detection cable can be extended up to 85 metres sensor part
- Soaked detection cables can be dried and reused
Technical details
Applications and use
- Cable length: 2 metres
- Protection: IP33
- Connections: RJ12, terminal block
- Power supply: 9-15V
- Consumption: 20mA
- Operating environment: -30 ° C - 85 ° C / 0% rH - 100% rH
- Storage environment: -30 ° C - 60 ° C / 5% rH - 95% rH
- Dimensions: 79 x 68 x 34 (WxHxD) / 122 g
Applications and use
- Water leak detector for safety systems
- Water detection under raised floors
- Leaking pipe detection (cable wound along pipe)
- Flood protection through roof lighting (sensor cable wrapped along walls)
- Detection of water leaks in drip pans
- Water leak detection under air conditioning outlets
