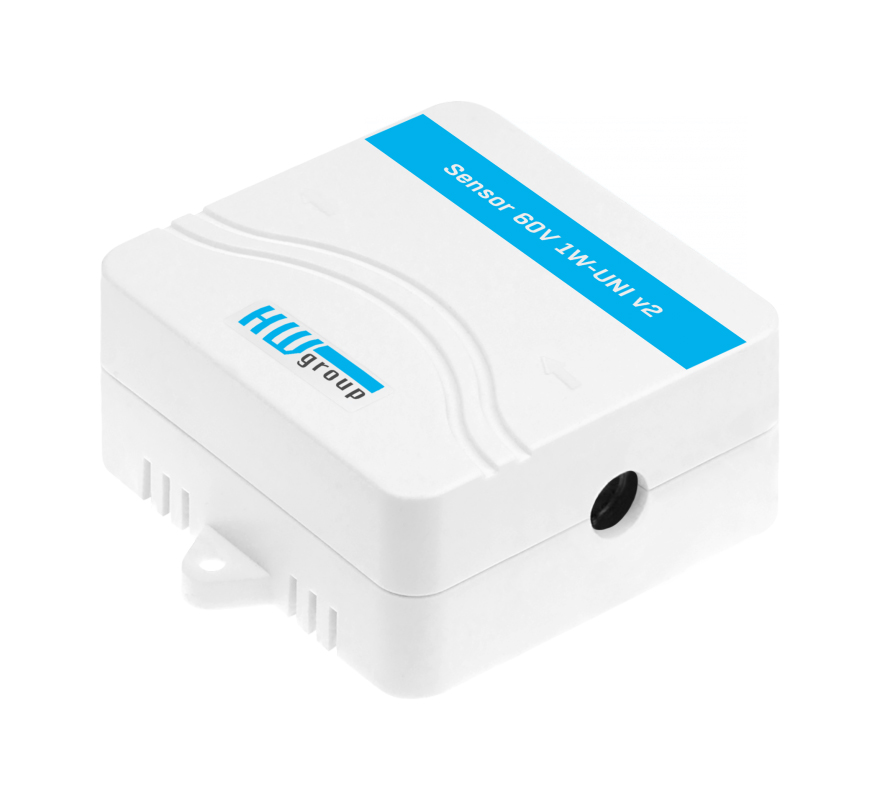

HW Group - Sensor 60V 1W-UNI v2 - 600534
DC voltage sensor (converter) with a 0 to 60V DC input and a 1-Wire UNI (RJ11) output. Recommended for measuring -48V DC power supply, galvanically isolated. Can be connected to the Ares and Poseidon2 units.
Producentens varenummer:
600534
Vores artikelnummer:
930096
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - Sensor 60V 1W-UNI v2 - 600534"
Galvanically isolated voltage sensor for up to 60VDC with 1Wire UNI output. Typical applications are measurement of voltage on industrial sensors (0-10V) or battery voltage. Often used for measurements on 48V power supplies in telecommunications (48V standard). The voltage can be monitored via LAN ( Poseidon2 or GSM (Ares).
The sensor is equipped with an 8-point calibration table/curve to adjust the measurement output to match related industrial sensors. The calibration process is supported by the 1W-UNI USB calibrator.
Galvanically isolated sensor for measuring voltages from 0 to 60VDC. Typical applications are connecting external sensors (0-10V) to a monitoring system or monitoring the voltage of 12V batteries. The sensor can be connected to Poseidon and SiteMon devices via 1-Wire UNI bus to read out values via IP (web, e-mail, SNMP, Modbus/TCP).
The sensor is equipped with an 8-point calibration table/curve to adjust the measurement output to match related industrial sensors. The calibration process is supported by the 1W-UNI USB calibrator.
Galvanically isolated sensor for measuring voltages from 0 to 60VDC. Typical applications are connecting external sensors (0-10V) to a monitoring system or monitoring the voltage of 12V batteries. The sensor can be connected to Poseidon and SiteMon devices via 1-Wire UNI bus to read out values via IP (web, e-mail, SNMP, Modbus/TCP).
| Monitoring: | Power Outages |
|---|
Features
- 0 - 60V DC voltage monitoring
- High measuring accuracy (can also be used for 0-10V)
- Sensors can be connected in series (two RJ11 connections)
- Power supply via the 1-Wire UNI bus (RJ11) or via an external power supply unit
- Sensor can also measure negative voltages from 0 to -60VDC
Technical details
Bus
Type: 1Wire-UNI (RJ11)
Connects to: Poseidon2 xxxx, Ares xx, Poseidon 2250, Poseidon 4002, SiteMon5

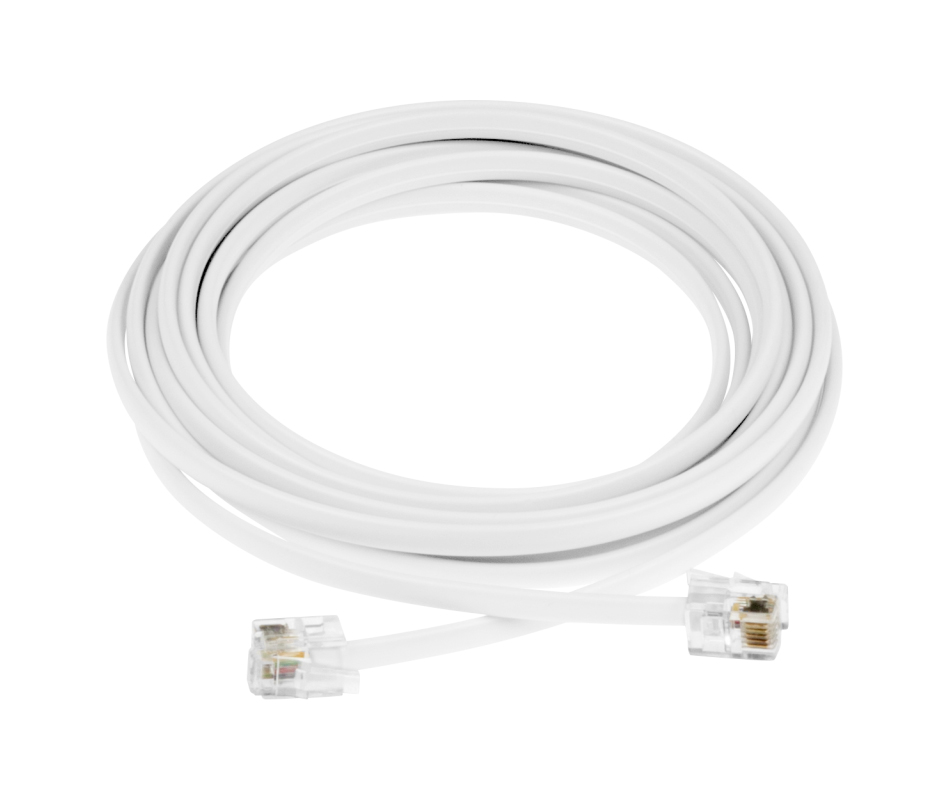

Connection: 2x RJ11 (sensors can be connected in series)
Maximum distance: 60m (total cable length from active port)
Electrical isolation: 1Wire-UNI bus is galvanically isolated from the 0-60V input
Power supply
Power supply: 1Wire-UNI bus + external power adapter
External power supply: 5VDC external power adapter can be used
Power limits: One active RJ11 connector can power a maximum of two sensors.
To increase power, use our "1-Wire Hub Power" or an external power adapter.
Electrical isolation: 0-60V input galvanically isolated from 1Wire-UNI (RJ11)
Sensor input
Connection: 2-pole terminal strip ( V+ , V- )
Dimensions: Electrical voltage 0 to 60VDC (0-1V, 0-10V, -48V DC, 0-60V)
Input range: 0 to 60VDC (max. 70V)
Accuracy: 2% of full 60V range / 25°C
Sensor output
Resolution: 1 decimal place
Displayed units: Default: [V]
If you need a conversion (e.g. in [m], [mm], [hPa], [ppm]), please contact us.
Measuring period: Once per second
Other
Operating conditions: -40 to +85 °C (-40 to +185 °F) / 5 to 70 % RH
Dimensions / Mass: 65 x 80 x 30 [mm] / 200 g
Applications and use
Bus
Type: 1Wire-UNI (RJ11)
Connects to: Poseidon2 xxxx, Ares xx, Poseidon 2250, Poseidon 4002, SiteMon5
Connection: 2x RJ11 (sensors can be connected in series)
Maximum distance: 60m (total cable length from active port)
Electrical isolation: 1Wire-UNI bus is galvanically isolated from the 0-60V input
Power supply
Power supply: 1Wire-UNI bus + external power adapter
External power supply: 5VDC external power adapter can be used
Power limits: One active RJ11 connector can power a maximum of two sensors.
To increase power, use our "1-Wire Hub Power" or an external power adapter.
Electrical isolation: 0-60V input galvanically isolated from 1Wire-UNI (RJ11)
Sensor input
Connection: 2-pole terminal strip ( V+ , V- )
Dimensions: Electrical voltage 0 to 60VDC (0-1V, 0-10V, -48V DC, 0-60V)
Input range: 0 to 60VDC (max. 70V)
Accuracy: 2% of full 60V range / 25°C
Sensor output
Resolution: 1 decimal place
Displayed units: Default: [V]
If you need a conversion (e.g. in [m], [mm], [hPa], [ppm]), please contact us.
Measuring period: Once per second
Other
Operating conditions: -40 to +85 °C (-40 to +185 °F) / 5 to 70 % RH
Dimensions / Mass: 65 x 80 x 30 [mm] / 200 g
Applications and use
- Battery voltage monitoring in telecommunication systems (Telco -48V)
- Independent measurement of individual battery cells (galvanically isolated)
- 12V or 24V car battery voltage sensor
- Signal converter for 0-10V industrial sensors
- DC current sensor in -48V systems (with a current measuring resistor)
