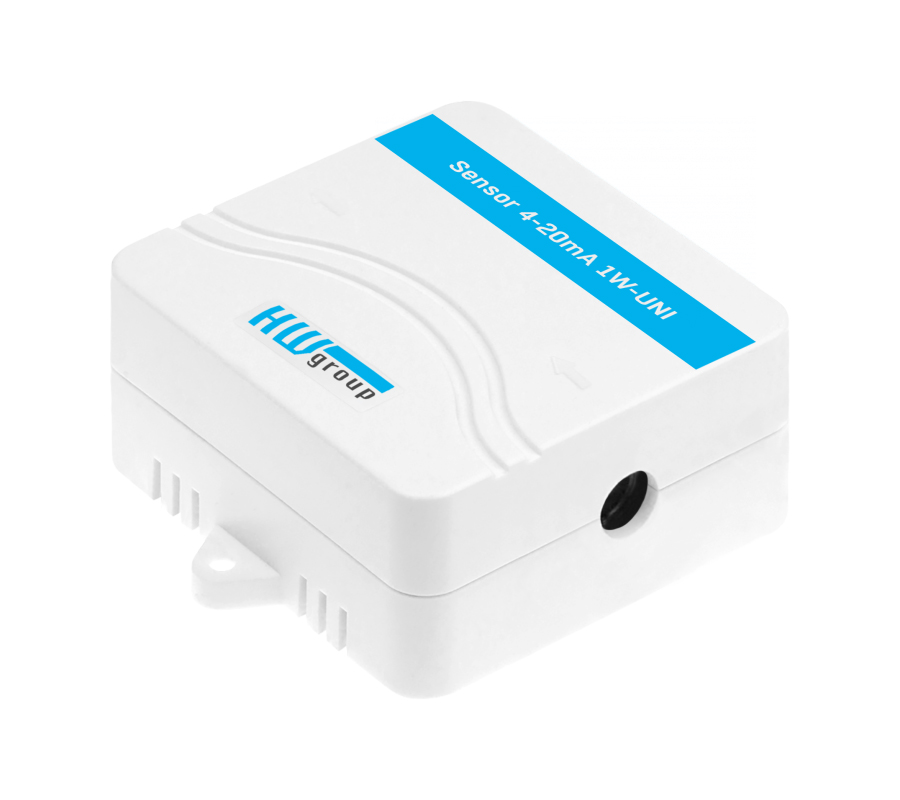

HW Group - Sensor 4-20mA 1W-UNI Set - 600605
4 to 20mA DC current transformer for the 1-Wire UNI (RJ11) bus. Electrically isolated, provides current to supply an external "sink" probe. The 1-Wire UNI (RJ11) output can be connected to Ares, Poseidon2 and other devices.
Producentens varenummer:
600605
Vores artikelnummer:
930117
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - Sensor 4-20mA 1W-UNI Set - 600605"
Isolated direct current sensor for the 1Wire-UNI bus
Isolated direct current sensor for the 1Wire-UNI bus. Sensor for measuring currents in the range 0-20mA. It is typically used to connect an industrial probe with 4-20mA output - 2-wire current loop ("sink" type). The current output of the sensor is processed in the Poseidon2 or Ares units and is accessible via LAN or GSM.
The sensor is equipped with an 8-point calibration table/curve to adjust the measured output according to related industrial sensors. The calibration process is supported by the 1W-UNI USB calibrator.USB dongle.
For 4-wire industrial sensors 0-20mA, use sensor 0-20mA 1W-UNI as an alternative.
Isolated direct current sensor for the 1Wire-UNI bus. Sensor for measuring currents in the range 0-20mA. It is typically used to connect an industrial probe with 4-20mA output - 2-wire current loop ("sink" type). The current output of the sensor is processed in the Poseidon2 or Ares units and is accessible via LAN or GSM.
The sensor is equipped with an 8-point calibration table/curve to adjust the measured output according to related industrial sensors. The calibration process is supported by the 1W-UNI USB calibrator.USB dongle.
For 4-wire industrial sensors 0-20mA, use sensor 0-20mA 1W-UNI as an alternative.
| Monitoring: | Power Outages |
|---|
Features
- Input: 4-20mA (connect a "sink" type probe).
- Electrical insulation
- Fuse protection: 63 mA fuse
- Options: Unit conversion, calibration

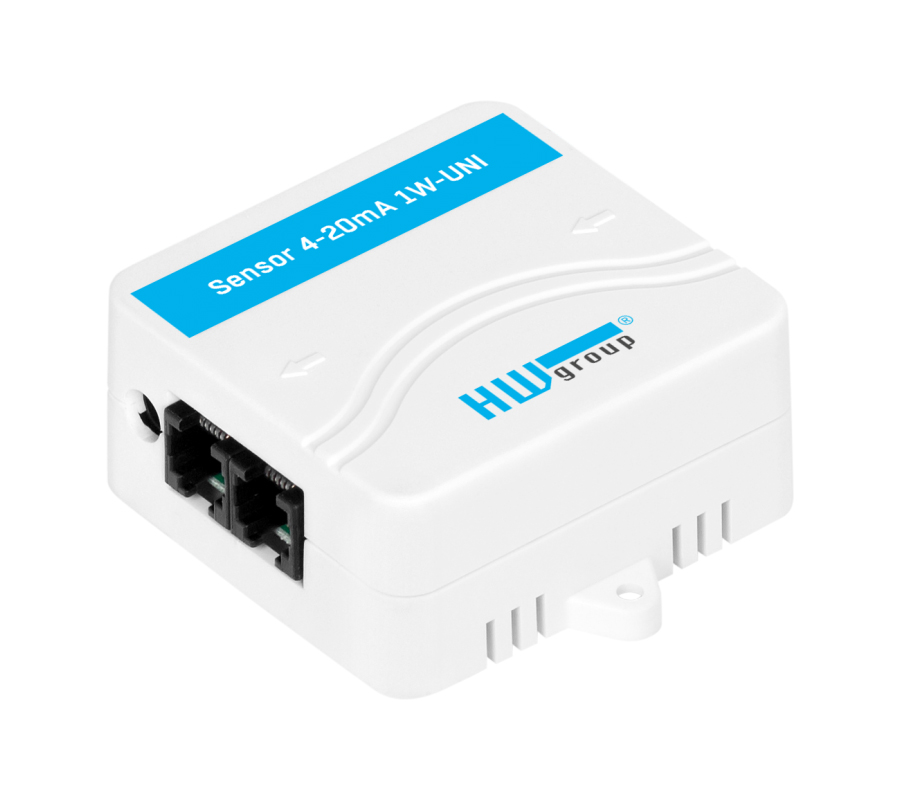

- Interface: 1-Wire UNI (2x RJ11 for daisy-chaining)
- Connection to: Ares 12/14, Poseidon2 or Poseidon 2250
- Environment: Converter for indoor installation
- Power supply: Requires an external 12-30 V supply.
Technical details
Bus
Power supply
Sensor input
Sensor output
Other
Applications and use
Bus
- Type: 1Wire UNI (RJ11)
- Connects to: Poseidon2 xxxx, Ares xx,Poseidon 2250, Poseidon 4002, SiteMon5

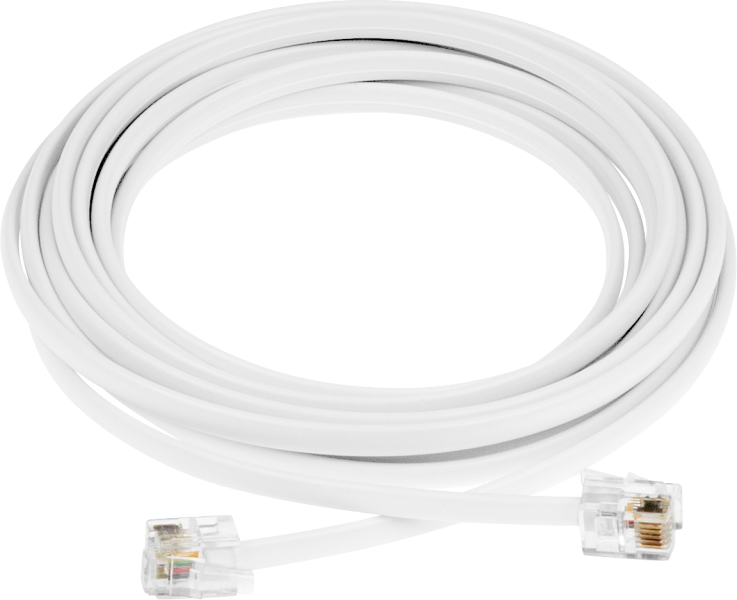

- Connection: 2x RJ11 (sensors can be connected in series)
- Maximum distance: 60m (total cable length from active port)
- Electrical isolation: 1Wire-UNI bus is galvanically isolated from 4-20mA input and external power supply
Power supply

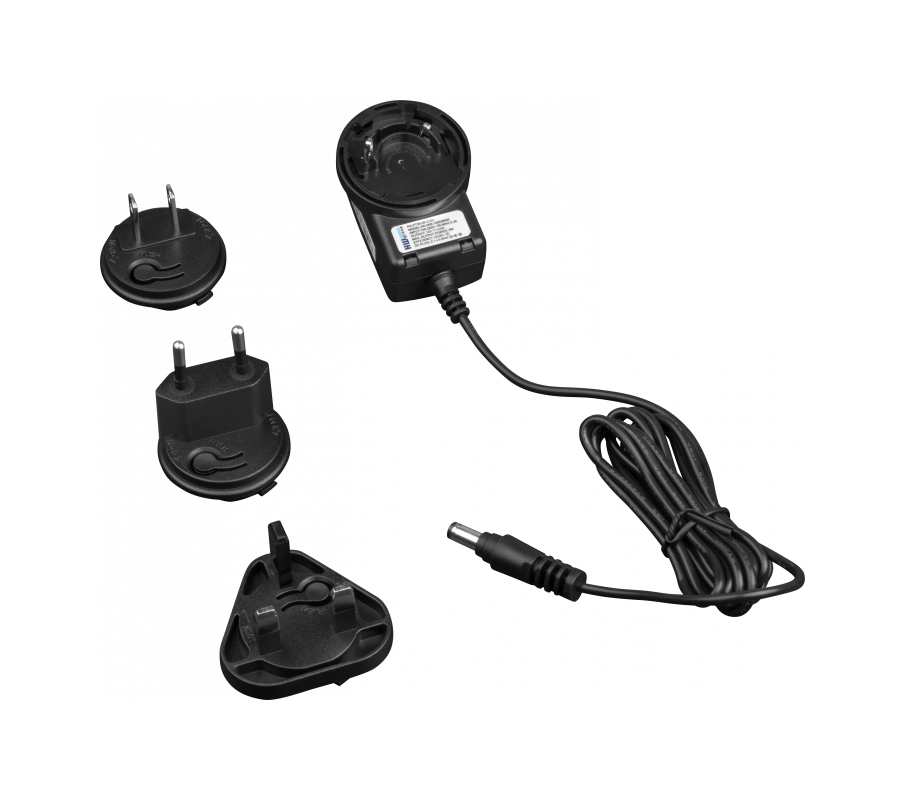

- Power supply: Requires an external 12-30VDC power supply.
- Connection: Female (inner ø 2.5 mm, outer ø 6.3 mm), GND on outer pin + o)
- Electrical isolation: External power supply is galvanically connected to the 4-20mA input
Sensor input
- Connection: 2-pole terminal block ( I+ , I-)Supported sensorsExternal sensor supplied by the 4-20mA DC current loop (sink)
- Input range: 4-20 mA (max. 30V external supply)
- Input protection: fuse (fast-blow) -63 mA
- Accuracy: 2% of full 4-20mA range / 25°C
Sensor output
- Resolution: 1 decimal place
- Displayed units: Default: [mA]
If you need a conversion (e.g. in [m], [mm], [hPa], [ppm]), please contact your dealer. - Measuring period: Once per second
Other
- Operating conditions: -40 to +85 °C (-40 to +185 °F) / 5 to 70 % RH
- Dimensions / Mass: 65 x 80 x 30 [mm] / 200 g
Applications and use
- Connection of industrial sensors to Poseidon or Ares systems
- Measurement of the fuel level in a tank
- Measuring the concentration of CO2 or other gases
- Connection of pressure transmitters, pH sensors or other industrial sensors
