HW Group - Sensor 230V AC 1W-UNI - 600602

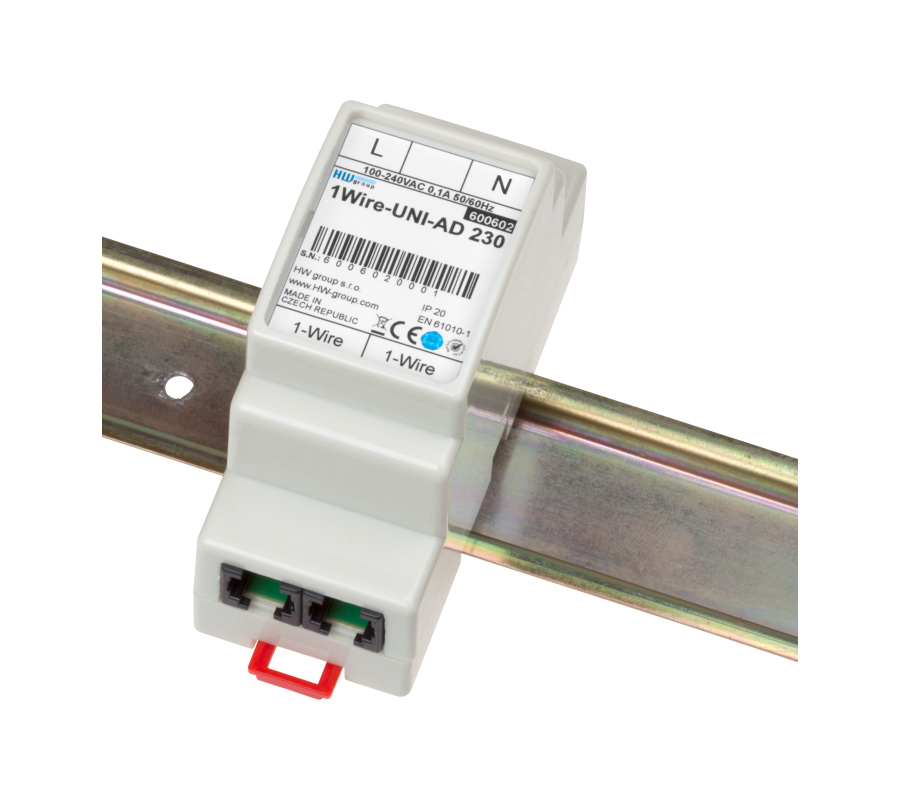

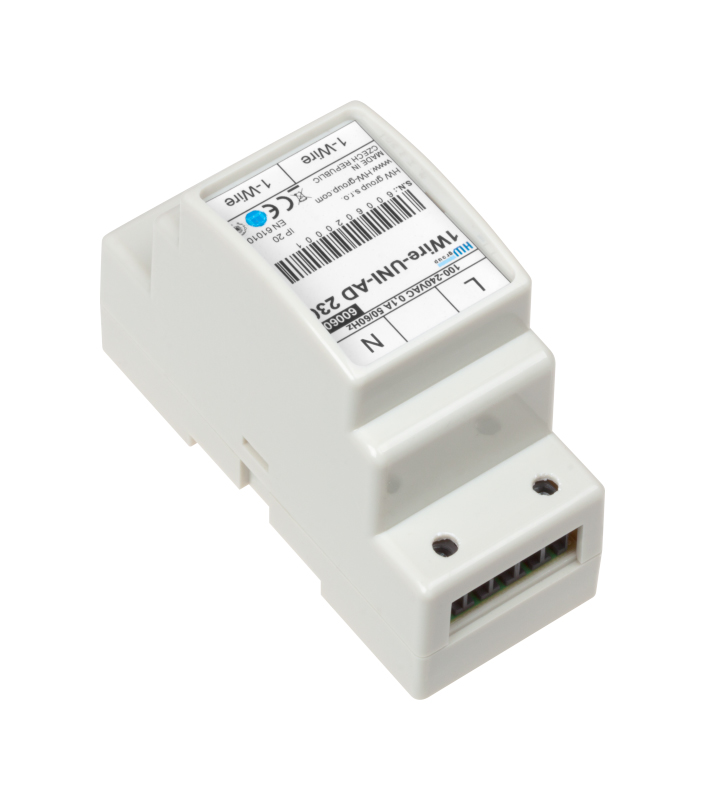

Voltage sensor 0-230V AC - converter for the 1-Wire UNI (RJ11) bus. Galvanically isolated, mounting on DIN rail. The 1-Wire UNI (RJ11) output can be connected to Ares, Poseidon2 and other devices.
Producentens varenummer:
600602
Vores artikelnummer:
930139
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - Sensor 230V AC 1W-UNI - 600602"
The sensor is designed to measure AC voltage in the range of 100 - 250V AC. The 1W-uni output bus is isolated. Typical applications of the sensor are the detection of voltage fluctuations or voltage failures. The measured values are processed by Poseidon2 (LAN) or Ares (GSM) to be accessible for monitoring apps.
| Monitoring: | Power Outages |
|---|
Features
- 100-240V AC sensor
- 1-Wire UNI output for connection to Poseidon2 and HWg-Ares units
- Accuracy 5%
- Resolution 1V
- Measuring time approx. 1s
- 1-Wire galvanically isolated from the power supply
- Designed for DIN-rail mounting (2 modules wide)
- Mechanical dimensions 88 x 64 x 37 mm
Technical details
Applications and use
- 100-240V AC sensor
- 1-Wire UNI output for connection to Poseidon2 and HWg-Ares units
- Accuracy 5%
- Resolution 1V
- Measuring time approx. 1s
- 1-Wire galvanically isolated from the power supply
- Designed for DIN-rail mounting (2 modules wide)
- Mechanical dimensions 88 x 64 x 37 mm
Applications and use
- Monitoring of mains voltage fluctuations.
- Monitoring of the mains voltage over a longer period of time.
- Detection of the presence of mains voltage.
- Monitoring of the voltage supply at the input or output of a UPS.
