HW Group - Sensor 0-20mA 1W-UNI - 600566
0 to 20mA DC current sensor - converter for the 1-Wire UNI (RJ11) bus. Galvanically isolated, measures externally supplied current. Compatible with Ares, Poseidon2 and more.
Producentens varenummer:
600566
Vores artikelnummer:
930194
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - Sensor 0-20mA 1W-UNI - 600566"

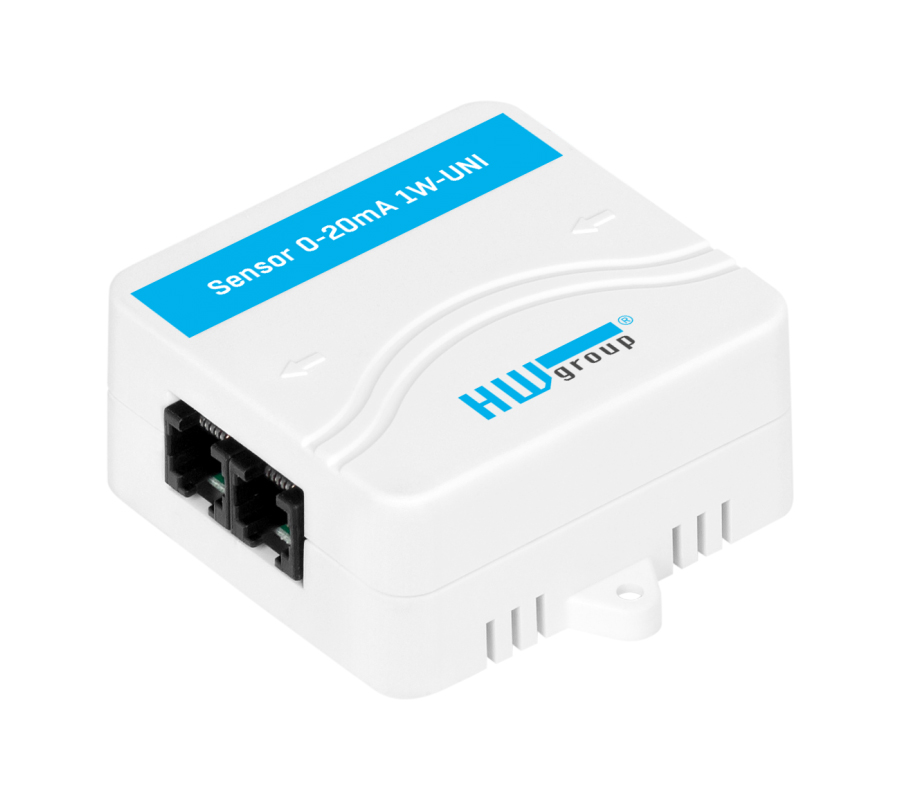

Isolated direct current sensor for the 1Wire-UNI bus
Isolated direct current sensor for the 1Wire-UNI bus. Sensor for measuring currents in the range 0-20mA. It is typically used to connect an industrial probe with 4-20mA output - 4Wire with a discrete power supply (e.g. to measure the fuel level in a tank). The current output of the sensor is processed in the Poseidon2 or Ares units to be accessible via LAN or GSM.
The sensor is equipped with an 8-point calibration table/curve to adjust the measured output to match the corresponding industrial sensor. The calibration process is supported by the 1W-UNI USB calibrator.
For two-wire industrial sensors 4-20mA use alternatively sensor 4-20mA 1W-UNI
Isolated direct current sensor for the 1Wire-UNI bus. Sensor for measuring currents in the range 0-20mA. It is typically used to connect an industrial probe with 4-20mA output - 4Wire with a discrete power supply (e.g. to measure the fuel level in a tank). The current output of the sensor is processed in the Poseidon2 or Ares units to be accessible via LAN or GSM.
The sensor is equipped with an 8-point calibration table/curve to adjust the measured output to match the corresponding industrial sensor. The calibration process is supported by the 1W-UNI USB calibrator.
For two-wire industrial sensors 4-20mA use alternatively sensor 4-20mA 1W-UNI
| Monitoring: | Power Outages |
|---|
Features
- Input: 0-20mA (connect a "source" type probe).
- Electrical insulation: Yes
- Protection: 63 mA fuse
- Options: Unit conversion, calibration
- Interface: 1-Wire UNI (2x RJ11 for daisy-chaining)
- Connection to: Ares 12/14, Poseidon2 or Poseidon 2250
- Environment: Converter for indoor installation
- Power supply: Bus-powered (1-Wire UNI) - max. 2 sensors per active port
Technical details
Bus
Power supply
Sensor input
Sensor output
Other
Applications and use:
Bus
- Type: 1Wire UNI (RJ11)
- Connects to: Poseidon2 xxxx, Ares xx,Poseidon 2250, Poseidon 4002, SiteMon5

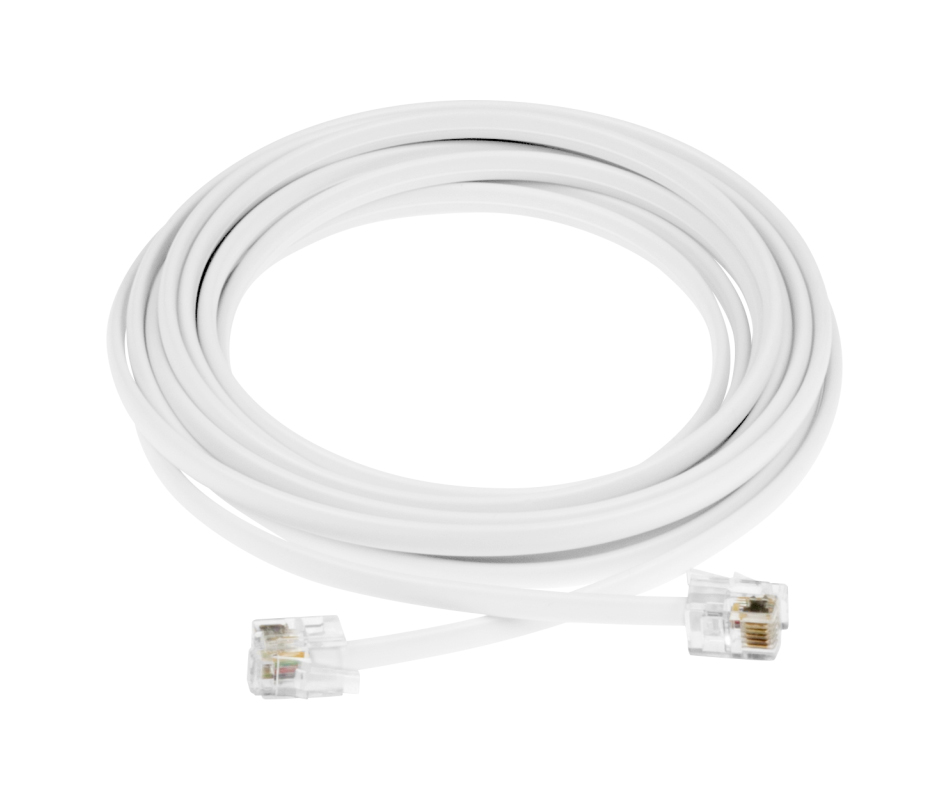

- Connection: 2x RJ11 (sensors can be connected in series)
- Maximum distance: 60m (total cable length from active port)
- Electrical isolation: 1Wire-UNI bus is galvanically isolated from 4-20mA input and external power supply
Power supply
- Power supply: 1-wire UNI bus
- Power limits: An active RJ11 connection can supply a maximum of two sensors.
- To increase the power, use our "1-Wire Hub Power".
- Electrical isolation: 0-20mA input galvanically isolated from 1Wire-UNI (RJ11)

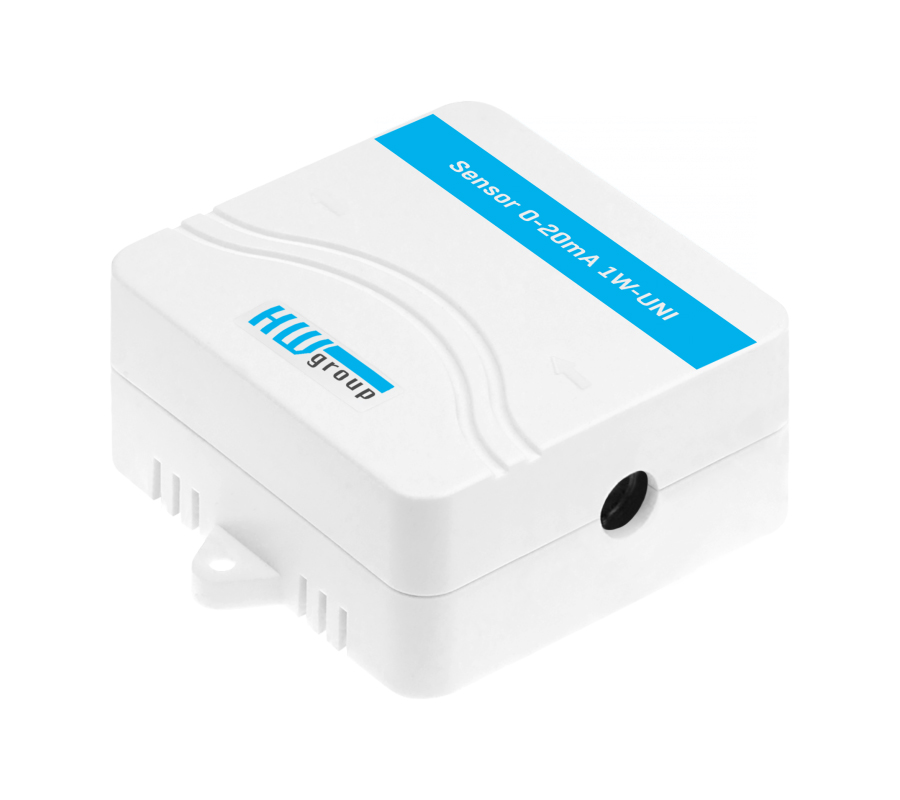

Sensor input
- Connection: 2-pole terminal strip ( I+ , I-)

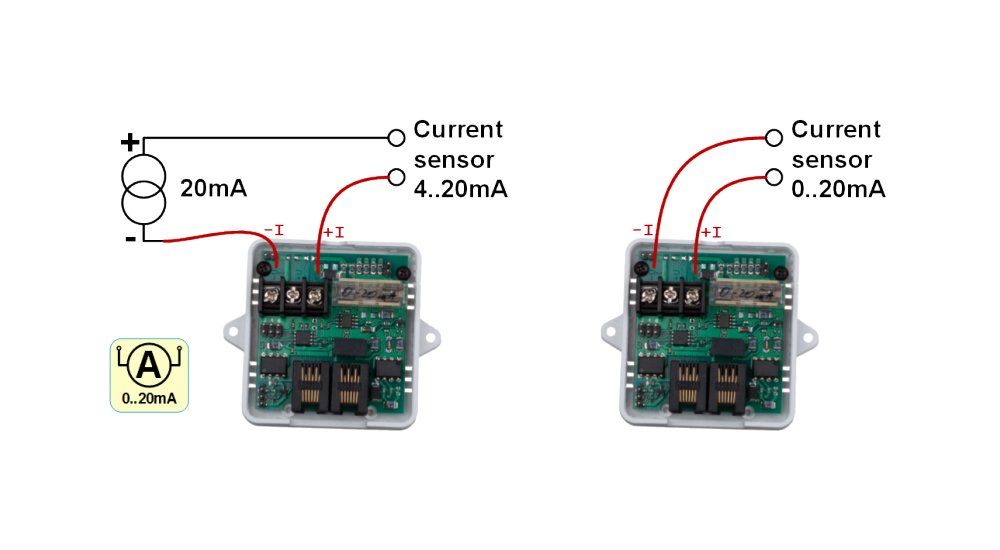

- Supported sensors: External current supplying probe, type "0-20mA DC (source)
- Input range: 0-20 mA (max. 30V)
- Input protection: Fuse (fast) -63 mA
- Accuracy: 2% of full 20mA range / 25°C
Sensor output
- Resolution: 1 decimal place
- Displayed units: Standard: [mA]If you need a conversion (e.g. in [m], [mm], [hPa], [ppm])
- Measuring period: Once per second
Other
- Operating conditions: -40 to +85 °C (-40 to +185 °F) / 5 to 70 % RH
- Dimensions / Mass: 65 x 80 x 30 [mm] / 200 g
Applications and use:
- Connection of industrial sensors to Poseidon or Ares systems
- Connection of current transformers
- Connection of electronic scales
- Measuring the concentration of CO2 or other gases
- Connection of pressure transmitters or other industrial sensors
