HW Group - Relay output 1W-UNI ind - 600752
Relay output control for Ares 12 and Ares 14 Remote control of up to 4 relay outputs with one floating contact (NO/NC up to 50V / 1A load)
Producentens varenummer:
600752
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktets levetid er udløbet!
Opfølgende produkt:
Produktinformation "HW Group - Relay output 1W-UNI ind - 600752"

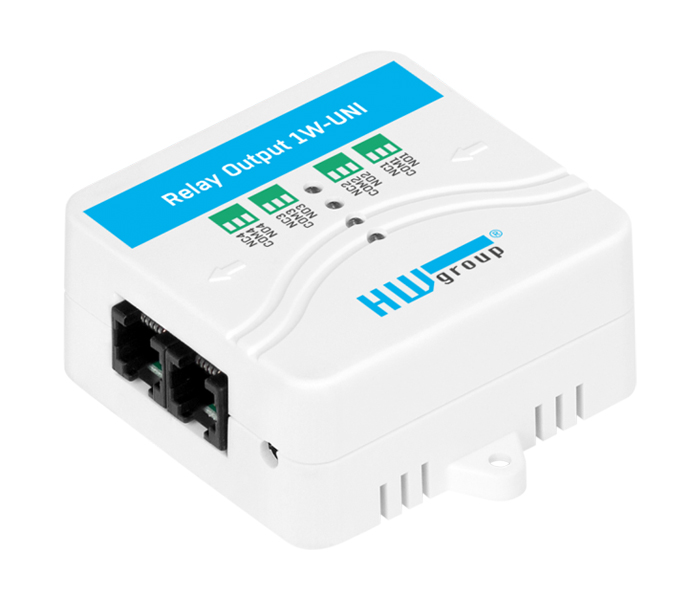

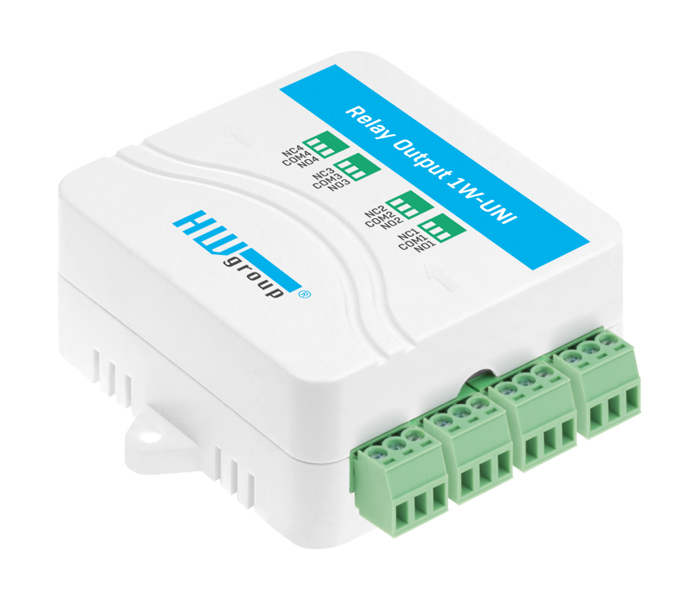

External relay output With the 1W-UNI module we can extend the functions of Ares 12 and Ares 14 by remotely controlling up to 4 relay outputs with a dry contact (NO / NC) of up to 50 V / 1A load. The relay output 1W-UNI for Ares allows manual switching of the external system via SMS or SensDesk. Each contact can be switched automatically when an alarm is detected by the sensor connected to the Ares unit. The unit can be used as a thermostat, automatic switch for backup units, visual or audible alarms, etc.
The relay output 1W-UNI reduces energy by using bistable relays with low power consumption. It is not suitable for mobile apps. The time update time of the switches is 3s.
Scope of delivery: HW Group Relay output 1W-UNI ind - 600752
The relay output 1W-UNI reduces energy by using bistable relays with low power consumption. It is not suitable for mobile apps. The time update time of the switches is 3s.
Scope of delivery: HW Group Relay output 1W-UNI ind - 600752
| Device: | Expansion Board |
|---|---|
| Monitoring: | Control Relays |
Features
- Can connect devices with DI / DO interface.
- Allows remote control of connected units.
- Metal housing
Technical details
Applications and Usage:
4x relay output expansion module for Ares 12 and Ares 14 for remote control of devices such as:
- Output load voltage: 24 V DC / 60 V AC
- Output load current: 1000mA

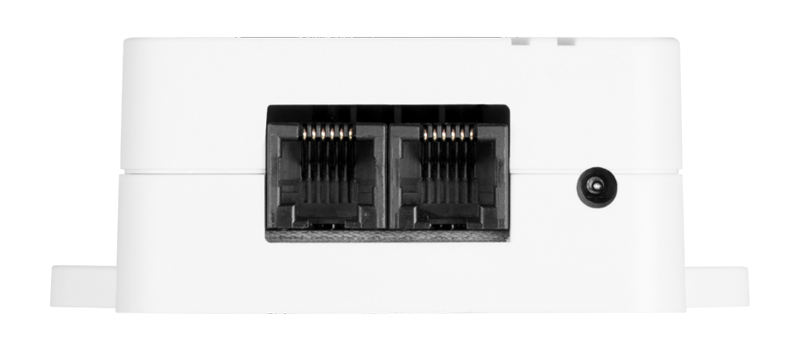

- Connectors: RJ12
- Galvanic isolation: Yes
- Power supply: 5V
- Consumption: 5mA
Applications and Usage:
4x relay output expansion module for Ares 12 and Ares 14 for remote control of devices such as:
- visual and audible alarms
- air conditioning or heating systems
- Emergency power supplies, etc.
