HW Group - Probe Pt100 TR125 2m - 600615
Temperature sensor 2 meter, Pt100/B (-190° - 150°), 4-wire, IP67
Producentens varenummer:
600615
Vores artikelnummer:
930126
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - Probe Pt100 TR125 2m - 600615"

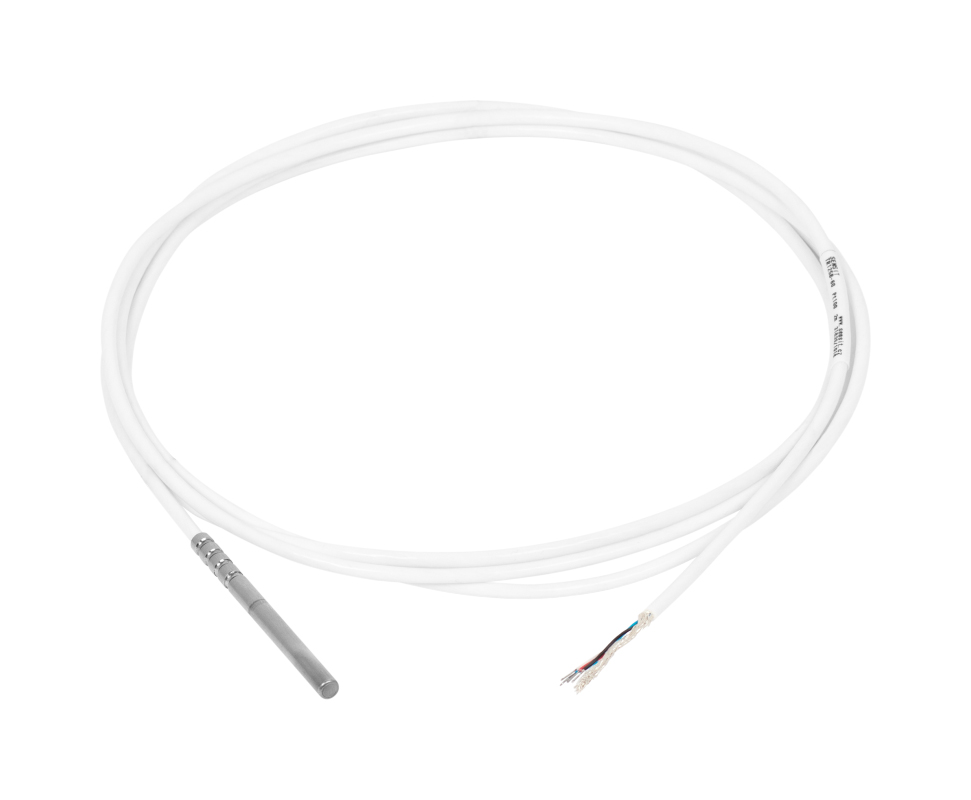

Pt100 resistance temperature sensor with 2 m cable.
Suitable for measuring very low temperatures. Enclosed in a stainless steel rod and connected with a 4-wire cable. A 2-, 3-, or 4-wire connection can be used.
Scope of delivery: Probe Pt100 TR125 2m - 600615
Suitable for measuring very low temperatures. Enclosed in a stainless steel rod and connected with a 4-wire cable. A 2-, 3-, or 4-wire connection can be used.
Scope of delivery: Probe Pt100 TR125 2m - 600615
| Monitoring: | Temperature |
|---|
Features
- Sensor temperature range -190 to +150°C; (-310 to +300°F)
- Accuracy ±(0.3+0.005t) [°C] in the range -190°C to 150°C
- Measuring element Pt100/B
- Rod length 50 mm
- Cover IP67 (EN 60529)
- Sensor diameter 5 ± 0.1 mm
- Housing material 17240 stainless steel (DIN 1.4301)
- Cable 2 m long, 4 x 0.14 mm 2 , shielded PTFE
- Standard ISO/IEC 17050-1
Technical details
Applications and use
- Temperature range: -190-150 °C
- Measuring accuracy:
± 0.3 °C in the range from - 50 °C to +150
± 0.6 °C in the range from - 190 °C to -50 °C - Resolution: 0.10
- Technology: PT100 / PT1000
- Cable length: 2 meters
- Operating environment: -190°C - 150°C / 0%RH - 100%RH
- Storage environment: -30°C - 60°C / 5%RH - 95%RH
- Dimensions: 64g
- Environment: Industrial
- Protection class: IP67
- Connector: RJ11
- Version: With shaft
Applications and use
- Up to two external temperature sensors (Pt100 or Pt1000) can be connected
- Measured temperature range is -200 to +850 °C (-328 to 1560 °F)
- Supports 2/3/4-wire probe connection
- High temperature measurement accuracy, automatic measuring range
- Sensors can be connected in series (two RJ11 connectors)
- Transducer can be calibrated at 8 points
- Power supply via 1-wire Uni-Bus (RJ11)
