HW Group - PowerEgg2 - 600599
Power detection and control for 110 and 230V AC. Mains plug IEC-320. Galvanically isolated relay output (DO) for power detection, dry contact input (DI) for power output control.
Producentens varenummer:
600599
Vores artikelnummer:
930041
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - PowerEgg2 - 600599"
PowerEgg2 detects failures of a power supply (110/230V single-phase, max. load 8A) and can also be controlled with a relay. It is possible to connect the PowerEgg to any device with digital inputs (DI) and/or digital outputs (DO). The controlling and controlled circuits are galvanically isolated, low-voltage make contacts are only used for power detection and output control.

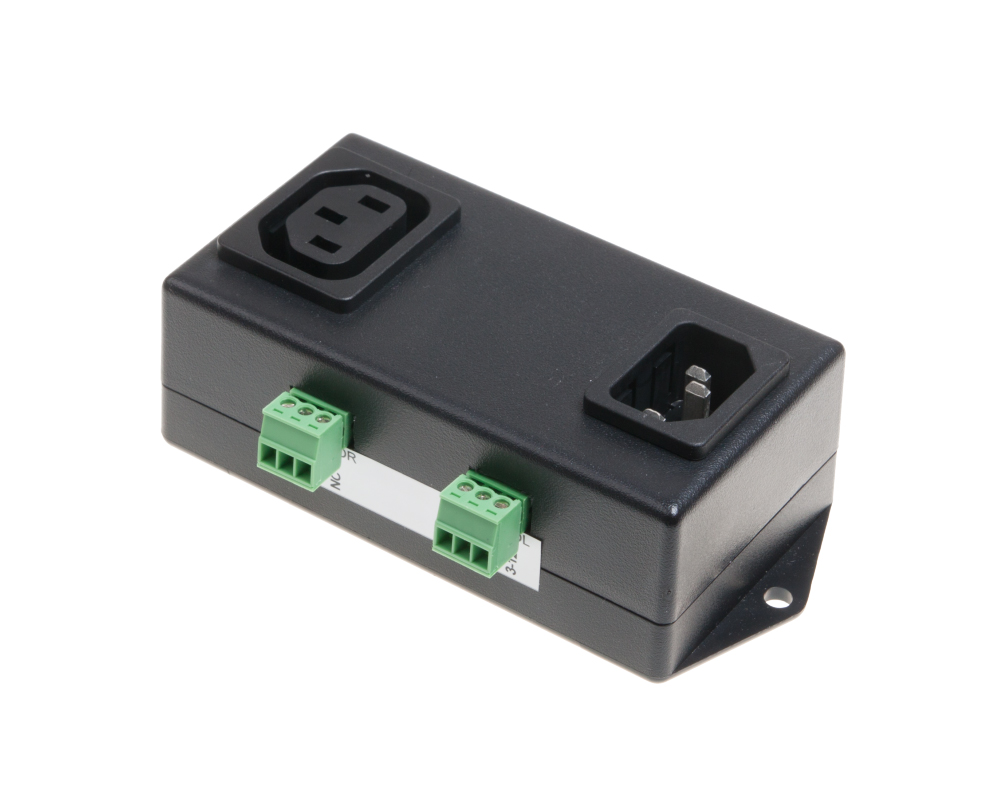

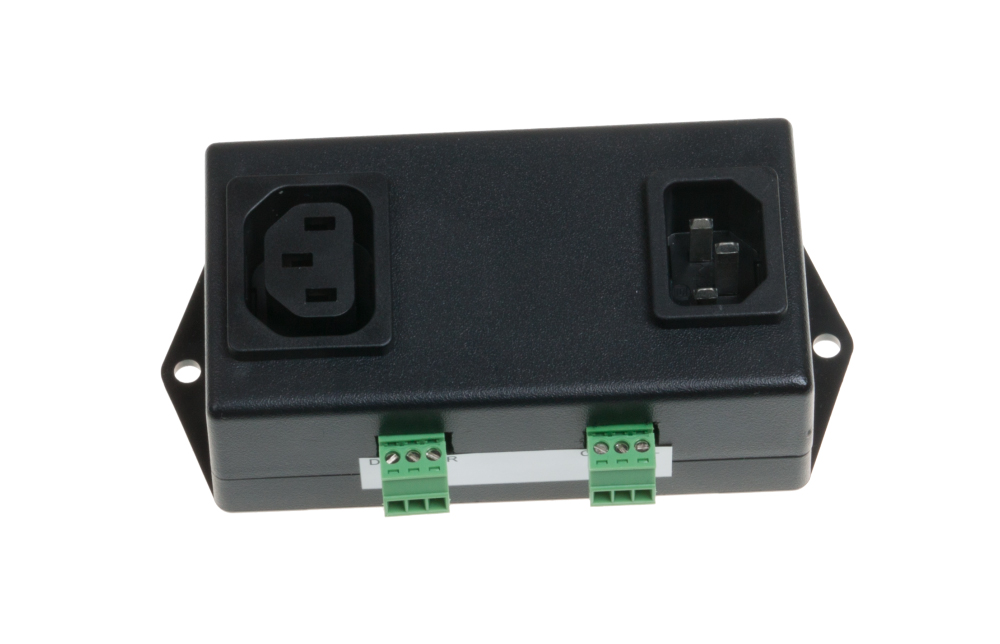

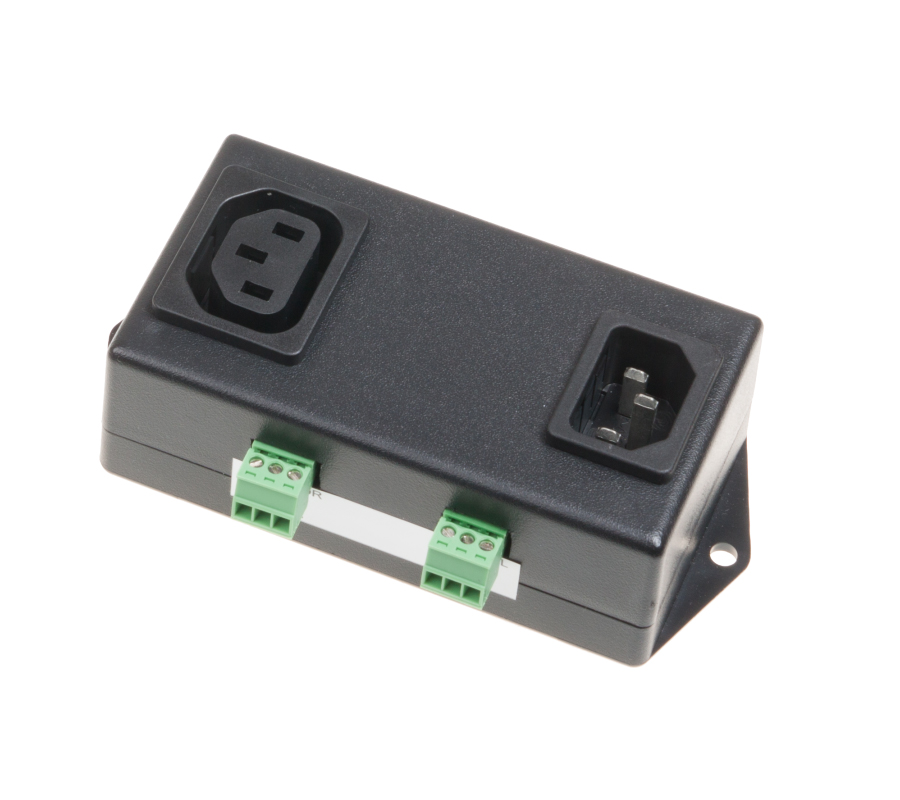

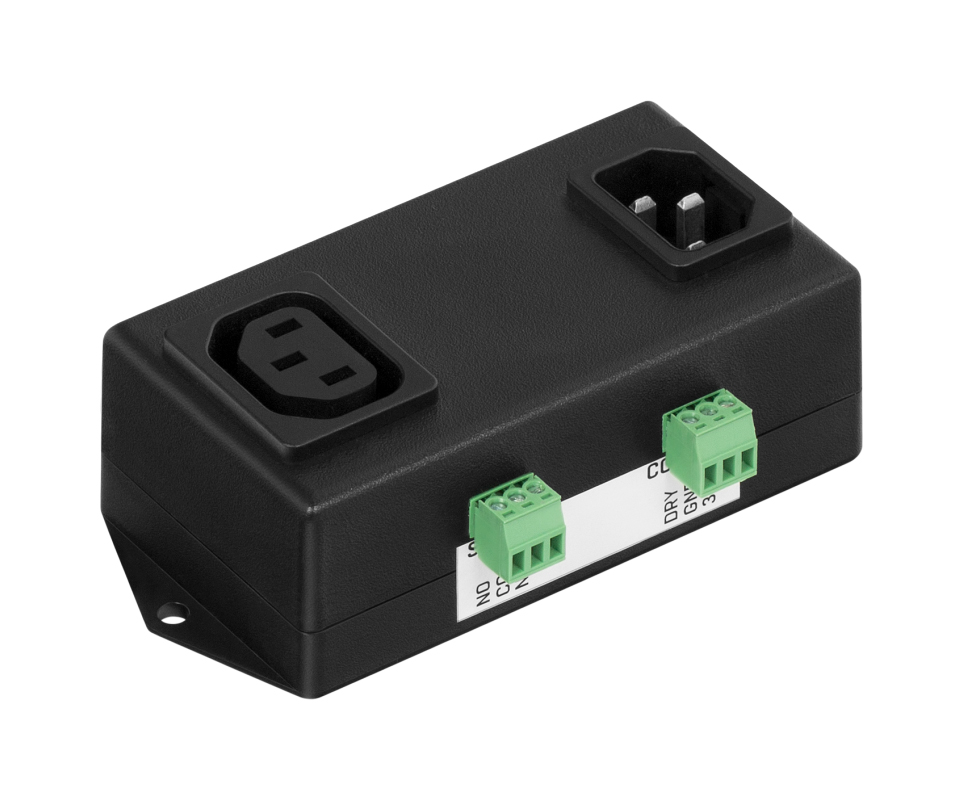

PowerEgg is a "pass-through" mains socket with two IEC-320 connections - a plug (C14) at the input and a socket (C13) at the output.
The PowerEgg combines two functions in a single device:
DETECTOR: Detects the presence of mains voltage at the input (indicated by a changeover contact).
CONTROL: Switches off the output voltage (control with external DC voltage or a contact).
PowerEgg is a "pass-through" mains socket with two IEC-320 connections - a plug (C14) at the input and a socket (C13) at the output.
The PowerEgg combines two functions in a single device:
DETECTOR: Detects the presence of mains voltage at the input (indicated by a changeover contact).
CONTROL: Switches off the output voltage (control with external DC voltage or a contact).
| Device: | Accessories |
|---|---|
| Monitoring: | Power Outages |
Features
- Detector input: voltage detection (110/230V)
- Detector interface: connection to any potential-free contact DI (digital input)
- Detection by: Any DI (digital input) on the Poseidon, Damocles or I/O controller.
- Control output: Switches the 110/230 V output voltage on/off (max. 8 A) - can be connected to any digital output
- Control interface: connect to any DO (digital output) - relay or open collector or 3-12V voltage
- Control by: Any DO (digital output) on the Poseidon, Damocles or I/O controller.
Technical details
DETECTOR: Detects 110 to 230V AC mains voltage.
CONTROL: Controlled output Voltage is switched through when the control voltage/contact is interrupted (Power output = Power input).
Applications and use
DETECTOR: Detects 110 to 230V AC mains voltage.
- Mains failure is indicated by a relay contact
- Output contact is galvanically isolated
CONTROL: Controlled output Voltage is switched through when the control voltage/contact is interrupted (Power output = Power input).
- The control input is galvanically isolated
- Two options for controlling the output:
- Control voltage 3 to 12V, or low voltage, normally open contact.
- Operating environment: -20°C - 80°C / 0%RH - 80%RH
- Storage environment: -30°C - 60°C / 5%RH - 95%RH
- Dimensions: 58 x 124 x 41 (WxHxD) / 146g
- Environment: Industrial, SoHo, IT
- Installation: Rack, table, wall
- Protection class: IP23
Applications and use
- Alarm activation in the event of a power failure.
- Monitoring the output voltage of a UPS input/output.
- Remote switch-on / switch-off of a server.
- Triggering of emergency cooling/ventilation
- Shutdown of the load in case of battery supply
