HW Group - Power Detector 110-230V INT - 600666
Pluggable voltage detector with international socket set
Producentens varenummer:
600666
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - Power Detector 110-230V INT - 600666"

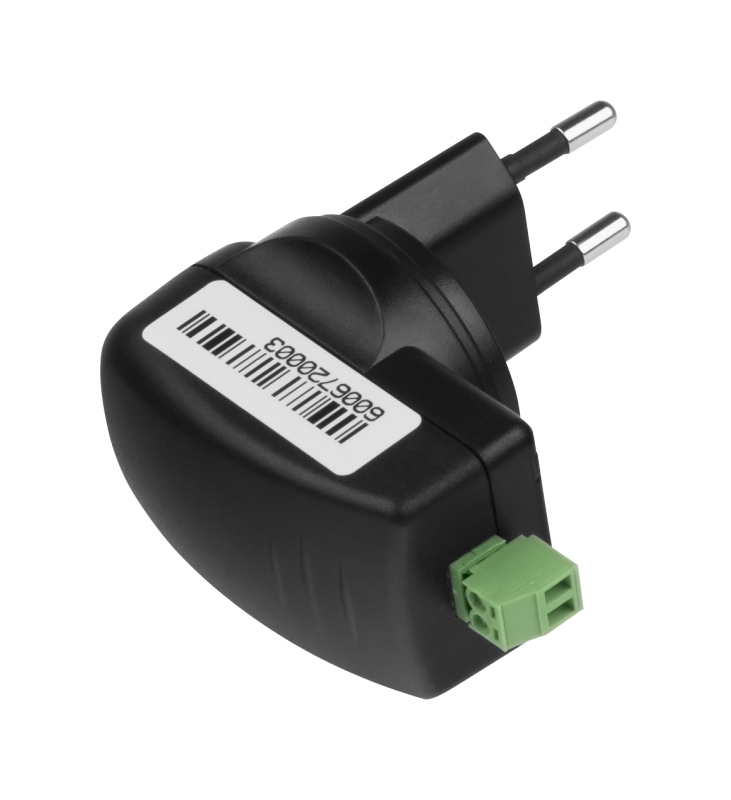

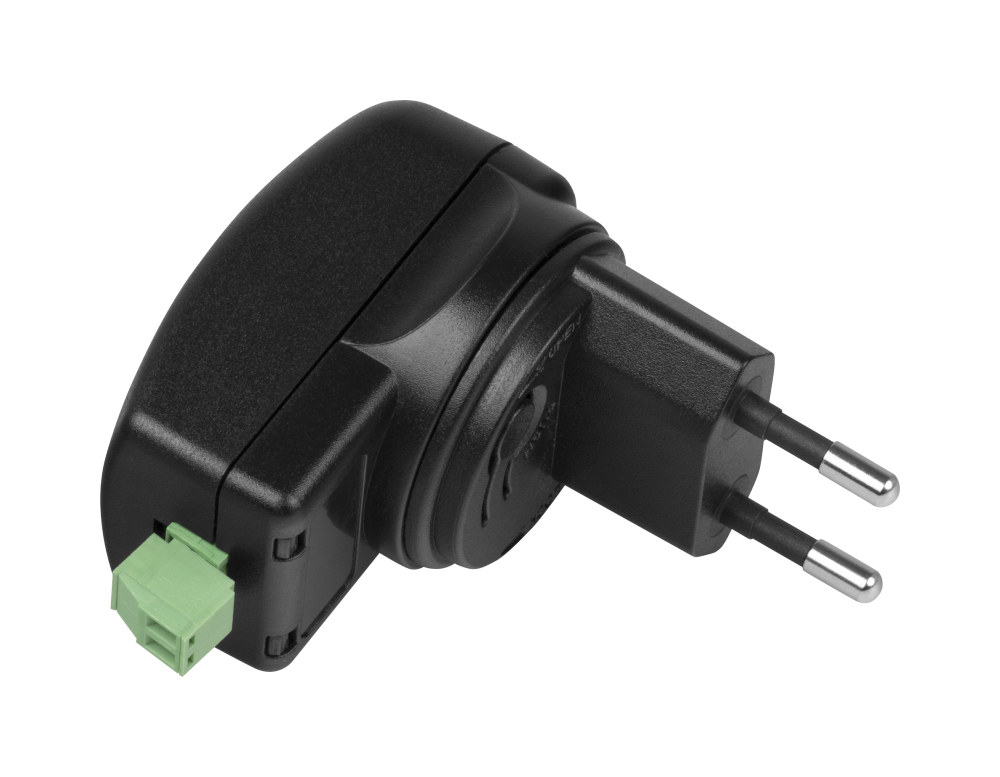

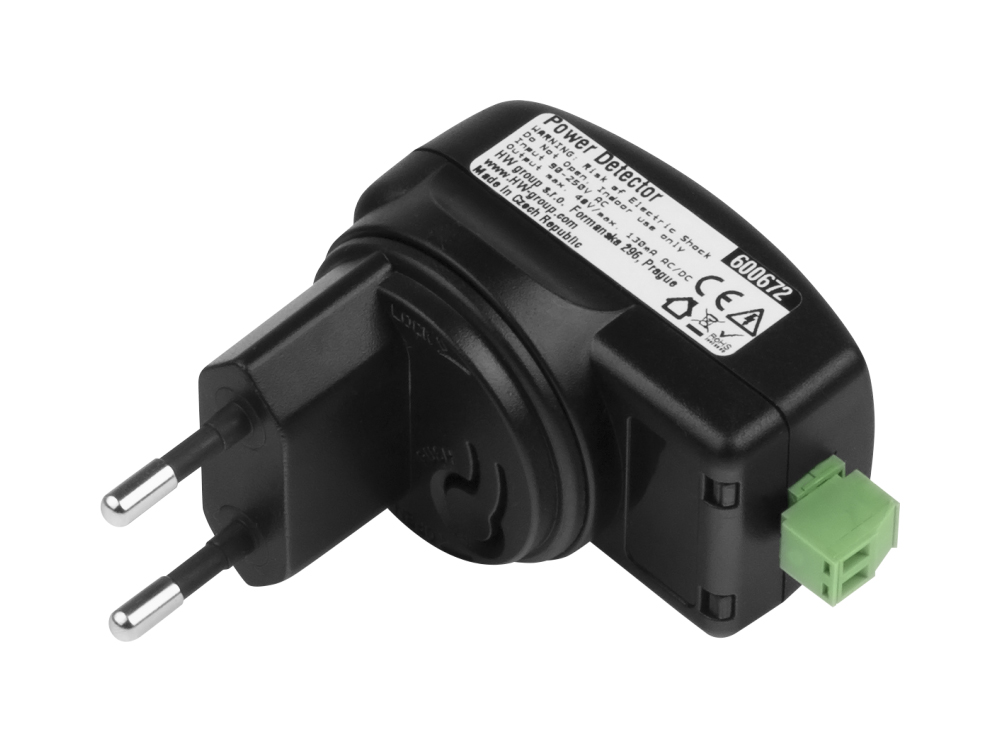

Detector for 110/230 V voltage run/failure that can be connected directly to a socket. The galvanically isolated relay output (NO) can be connected to any digital input (DI) of any product of the HW group.
Power Detector detects the presence of voltage, which it signals via a relay output (galvanically isolated).
Power Detector can, for example, be connected to a DI of Poseidon2 3266 or Damocle2 MINI and detect the presence of charging voltage at the input of a UPS.
The Power Detector can be supplied in versions for different socket systems or even in the international version with all sockets (EU / US / UK).
The relay output is NO, the status "connected" signals the presence of 110-230V. It can handle a load of up to 50V/130mA and the resistance of max. 10 Ohm.
Power Detector detects the presence of voltage, which it signals via a relay output (galvanically isolated).
Power Detector can, for example, be connected to a DI of Poseidon2 3266 or Damocle2 MINI and detect the presence of charging voltage at the input of a UPS.
The Power Detector can be supplied in versions for different socket systems or even in the international version with all sockets (EU / US / UK).
The relay output is NO, the status "connected" signals the presence of 110-230V. It can handle a load of up to 50V/130mA and the resistance of max. 10 Ohm.
| Monitoring: | Power Outages |
|---|
Features
- ready-to-plug-in version

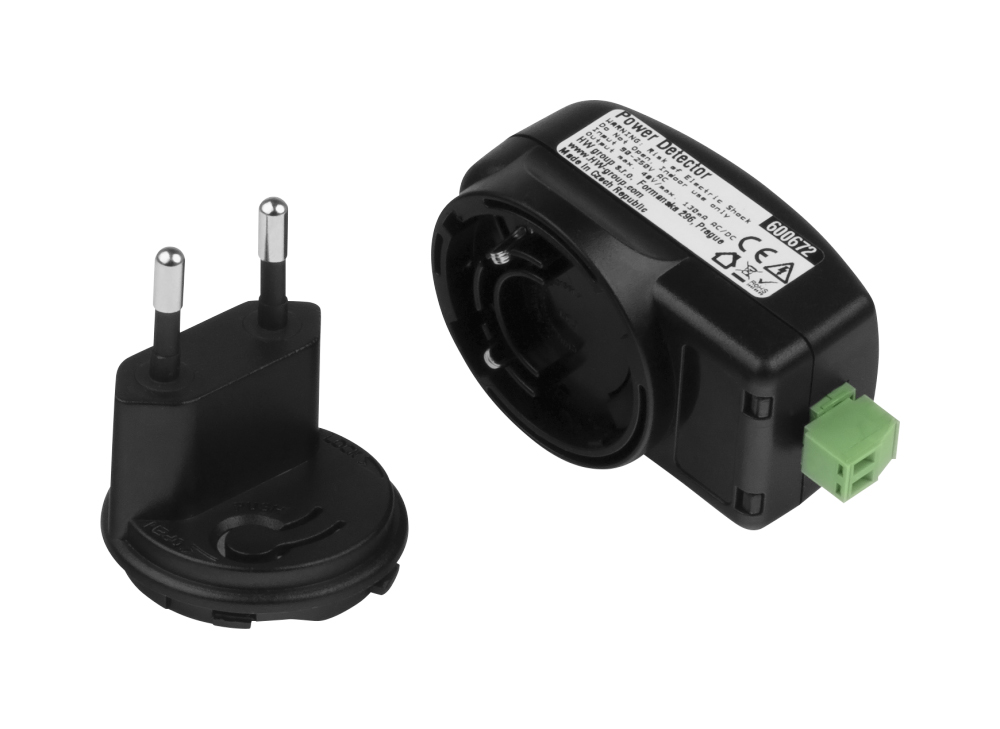

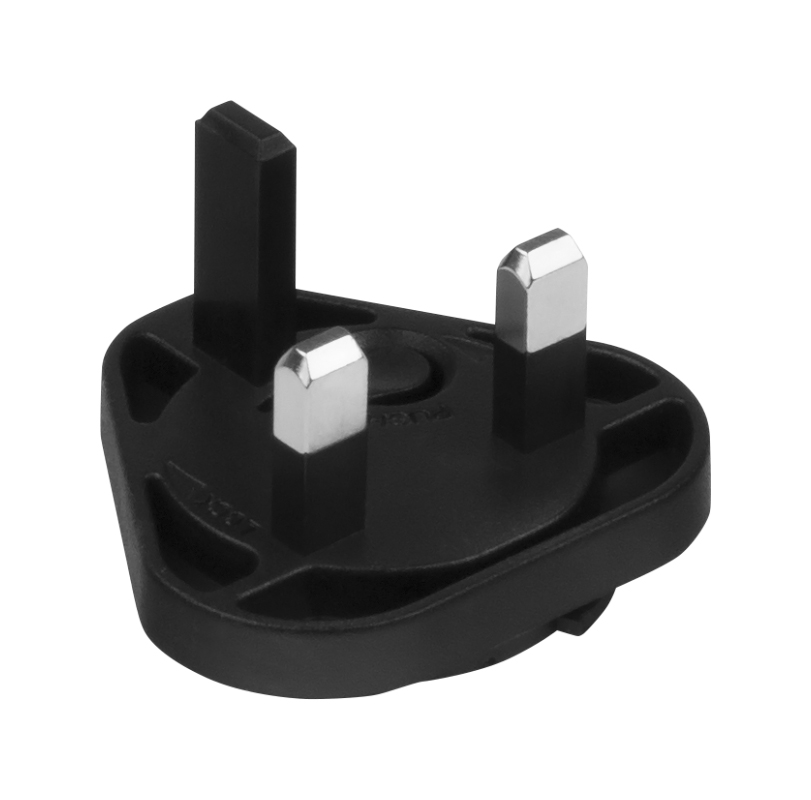

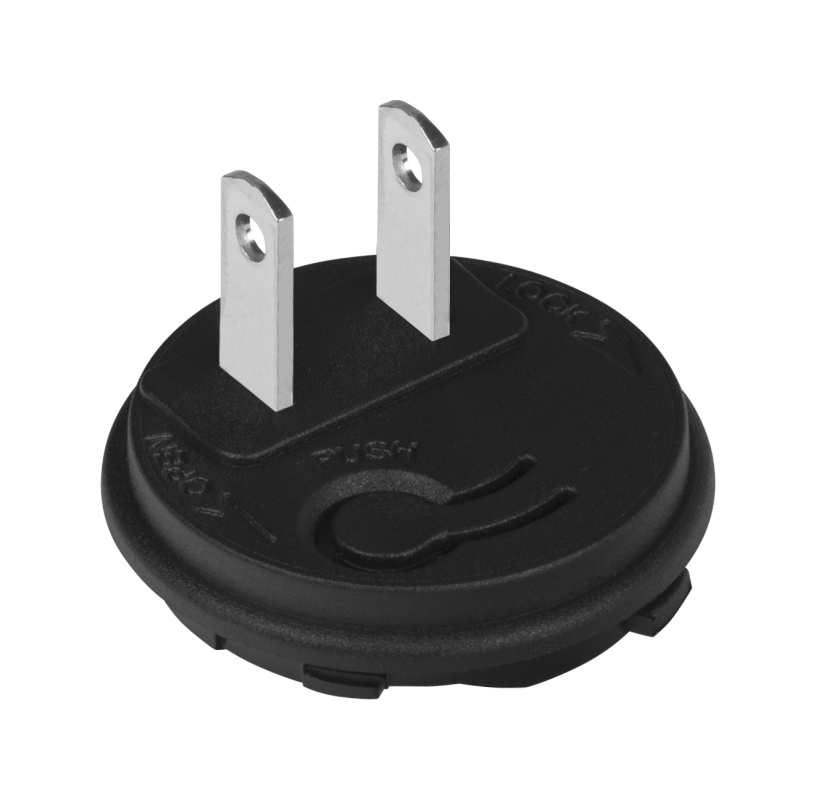

- interchangeable sockets (International, US, EU and UK)
- isolated relay output up to 50 V / 130 mA
- Resistance in closed state max. 10 Ohm
Technical details
Voltage measurement
Power supply
Applications and use:
The Power Detector can be connected to the digital input (DI) of all units of the HW group.
Voltage measurement
- Inputs: Wet contact
- Outputs: Open colectors
- Output load voltage: 50V
- Output load current: 130mA
- Quantity: 1
Power supply
- Mains connection: 230V
- Consumption: 3mA
- Operating environment: -30°C - 60°C / 0%RH - 100%RH
- Storage environment: -30°C - 60°C / 5%RH - 95%RH
- Dimensions: 60 x 60 x 50 (WxHxD) / 80gv
- Environment: Industry, SoHo, IT
- Connector: Terminal strip
Applications and use:
The Power Detector can be connected to the digital input (DI) of all units of the HW group.
- Input: Voltage detection 110/230V (type A, type C, type G)
- Output: Relay output NO (max 50V / 130mA / max 10 Ohm)
- Compatibility list: Poseidon2 3266, 3268, 3468, 4002, Damocles2 1208, MINI, 2404, STE2, I/O controller XXXX, HWg-Ares
