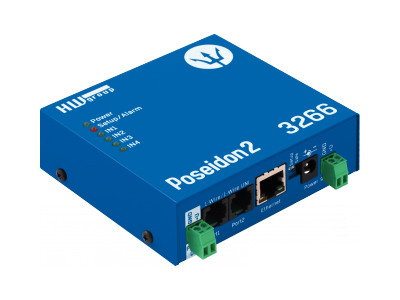

HW Group - Poseidon2 3266 - 600568
Sensor remote monitoring with 4x DI and 2x RJ11 - max. 8x sensors, WEB, XML, SNMP, Modbus/TCP
Producentens varenummer:
600568
Vores artikelnummer:
930017
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - Poseidon2 3266 - 600568"
Poseidon2 3266 supports up to 8 sensors connected via 1-Wire UNI / 1-Wire and up to 4 detectors connected to digital inputs.
An integrated web server is used for configuration. The unit can be monitored remotely via the free SensDesk portal in combination with the SensDesk mobile app for iOS and Android. It works with HWg-PDMS and HWg-Trigger.
Poseidon2 devices are used to monitor and control sensors and digital I/O over the network using secure M2M protocols (HTTPs, IPv6, SNMPv3) . With support for over 50 SNMP and SCADA applications, Poseidon2 devices can be integrated into a wide range of monitoring and control systems. The MQTT protocol enables integration into IoT solutions.
Scope of delivery: HW Group Poseidon2 3266 - 600568
An integrated web server is used for configuration. The unit can be monitored remotely via the free SensDesk portal in combination with the SensDesk mobile app for iOS and Android. It works with HWg-PDMS and HWg-Trigger.
Poseidon2 devices are used to monitor and control sensors and digital I/O over the network using secure M2M protocols (HTTPs, IPv6, SNMPv3) . With support for over 50 SNMP and SCADA applications, Poseidon2 devices can be integrated into a wide range of monitoring and control systems. The MQTT protocol enables integration into IoT solutions.
Scope of delivery: HW Group Poseidon2 3266 - 600568
| Alerts: | E-Mail with Transport Encryption, SMGT Traps, SMTP Get |
|---|---|
| Classification: | Big Server Rooms and Datacenter |
| Device: | Monitoring Device |
| Device Classes: | 8 Sensors, Expandable with DI/DO |
Features
- 8x 1-wire UNI / 1-wire input; 4x digital input; data logger for more than 250,000 data sets; digital inputs have 32-bit S0 pulse counters that retain their value even in the event of a power failure.
- 5x SNMP trap; 5x e-mail; 5x "SMS + Ring" (via external GSM gateway or modem).
- MQTT compatibility enables connection to IoT Hub, MS Azure, Bluemix Internet of Things and other cloud services.
- Connected via LAN. Configuration via built-in web server.
- A sensor reading outside a specified safety range and a change in DI status send an alert via email, SMS, SNMP trap or activate a remote relay at another Poseidon2 of the Damocles2 unit.
- For ring or SMS alarms, use the HWg Trigger software (external GSM modem required) or a HWg SMS GW3 gateway on the same LAN.
- With the HWg-PDMS software, S0 pulses can be converted into cost per period and exported to MS Excel.
- Compatible with a range of third party SWs (SCADA, etc.). Examples for programmers to use the product can be found in the HWg SDK (Borland C ++, MS Visual, VB, C #, PHP, JAVA and more).
Technical details
Applications and use
- Digital inputs: 4
- Sensors: 1-Wire / 1-Wire-UNI (2x 60 m): 8
- SMS-GW client: Yes
- Modbus / TCP: Yes
- Logger: 250,000 data records
- SNMP: Yes
- E-mail alarms (regular): Yes
- HWg push: Yes
- Power supply: 9-30 V
- PoE / 48V: Optional
- Operating environment: -30 ° C to 85 ° C / 20% rH - 80% rH
- Storage environment: -30 ° C to 60 ° C / 5% rH - 95% rH
- Dimensions: 105 x 94 x 33 (WxHxD) / 270 g
Applications and use
- Remote monitoring in IT environments
- Connects to any SNMP system
- Temperature monitoring at multiple locations
- Cooler and freezer monitoring
- UPS monitoring
- Monitoring systems
- Industrial applications
