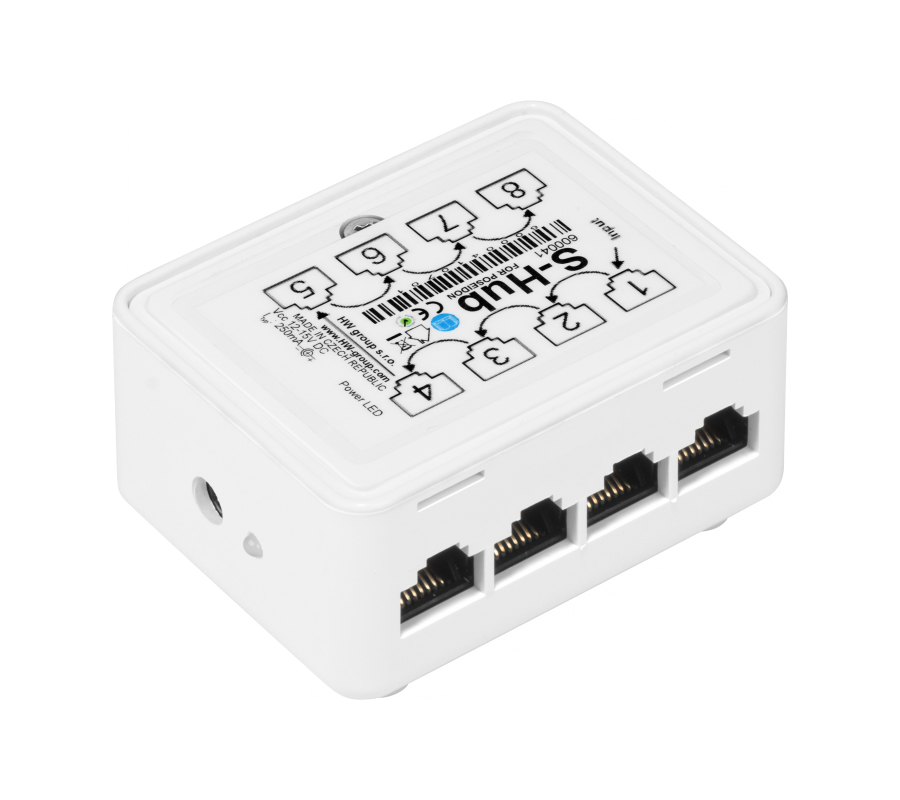

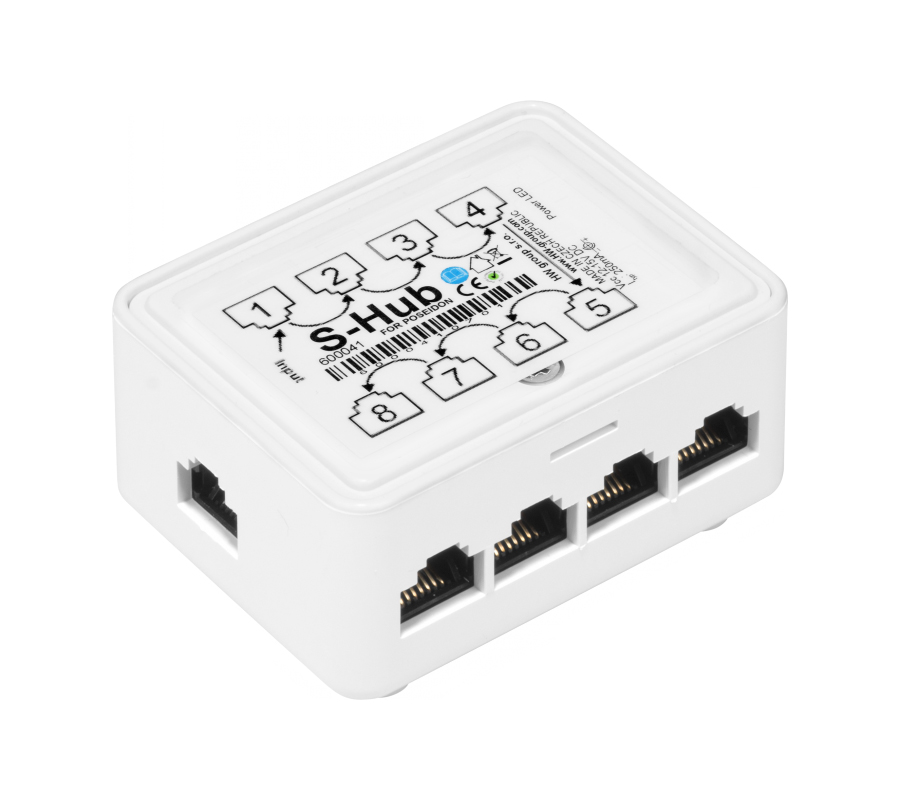

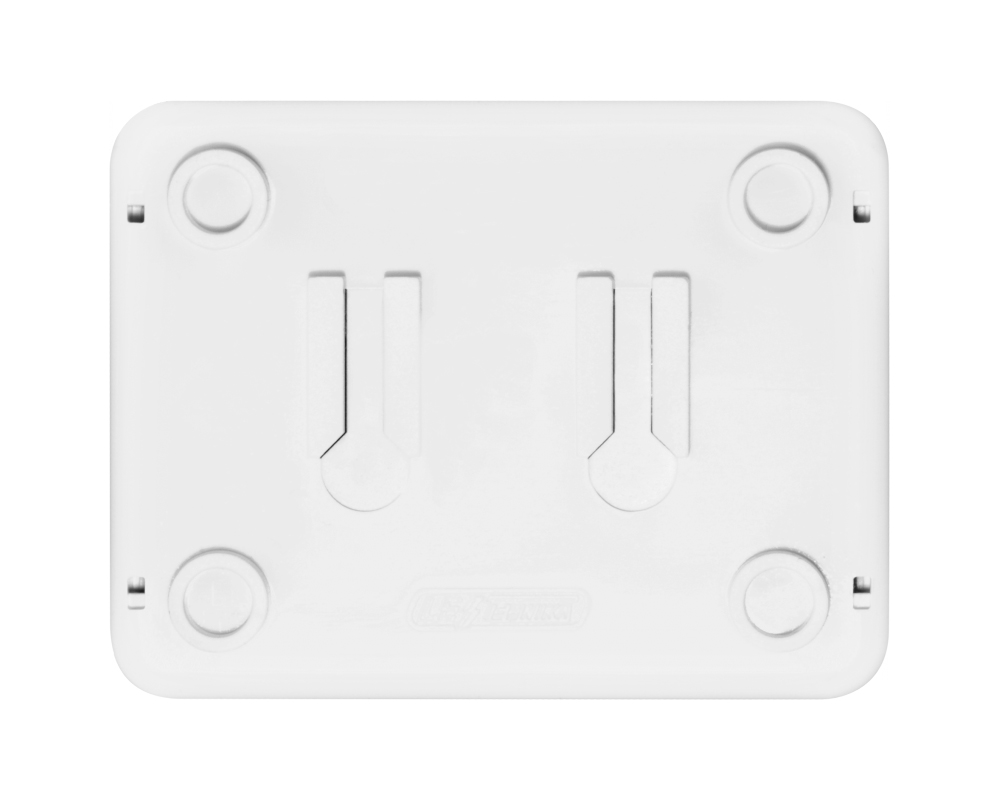

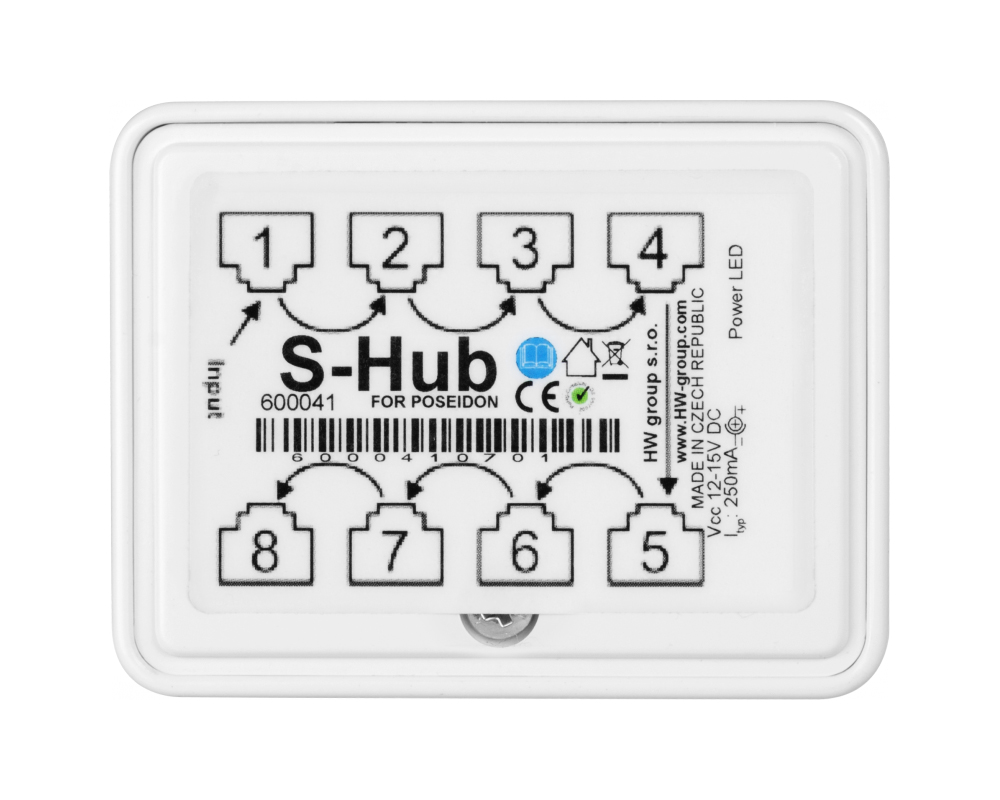

HW Group - Poseidon S-Hub - 600041
Splitter for up to 8 sensors on RS-485 bus (8+1x RJ45)
Listepris:
953,60 kr.*
Forhandlerpris - Login
2 stykker til rådighed, leveringstid: 2 - 3 arbejdsdage
Producentens varenummer:
600041
Vores artikelnummer:
930070
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - Poseidon S-Hub - 600041"

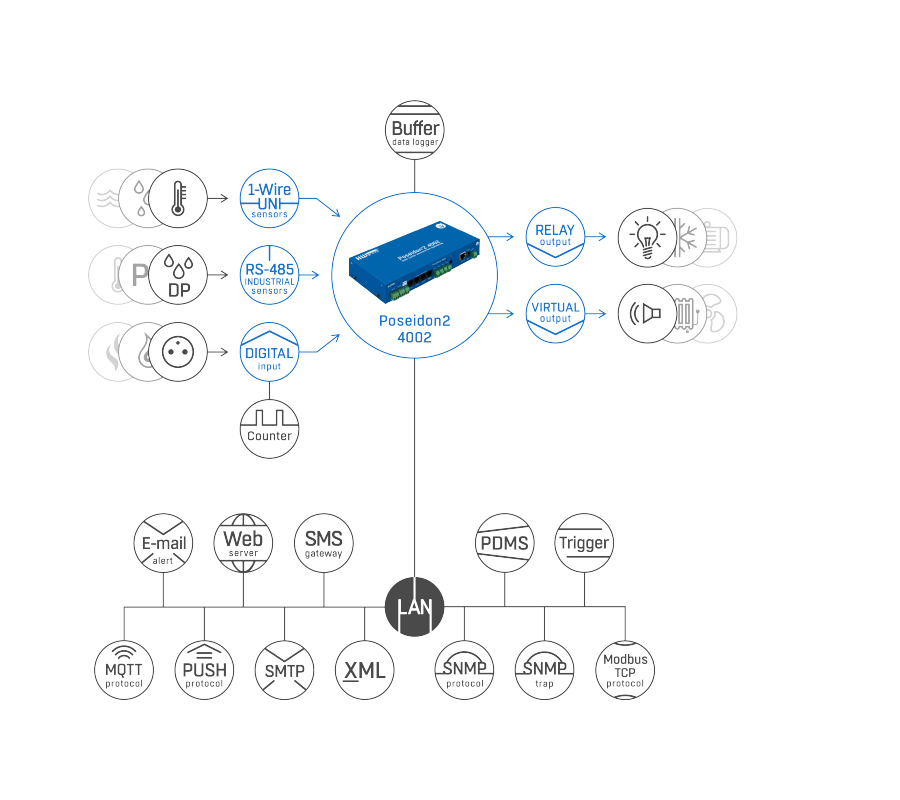

S-Hub represents a device that allows RS-485 sensors to be connected to Poseidon family devices such as Poseidon2 4002. The RS-485 bus is connected to the Poseidon model 1250 via TP cable and RJ45 connector. S-Hub allows connection of up to 8 sensors via RJ45 to a single Poseidon unit. S-Hubs can be connected in series. Although the topology of S-Hub is similar to Hub on Ethernet, it cannot be switched.
The RS-485 bus also works reliably over long distances in industrial environments, but some principles must be observed when connecting. To make it easier to connect the sensors, we supply the S-Hub with the Poseidon. This is really a great help when installing sensors. Standard TP cables can be used in the star connection.
The RS-485 bus also works reliably over long distances in industrial environments, but some principles must be observed when connecting. To make it easier to connect the sensors, we supply the S-Hub with the Poseidon. This is really a great help when installing sensors. Standard TP cables can be used in the star connection.
| Device: | Accessories |
|---|
Features
- Simplification of cabling (especially for larger installations)
- Use of common RJ45 sensors
- Easy expansion with additional sensors
- Simplified power supply connection for individual sensors. The power supply is connected directly to the S-Hub unit. It is possible to use standard mains adapters.
Technical details
Spannungsversorgung:
Betriebsumgebung: -30°C - 70°C / 0%RH - 100%RH
Lagerumgebung: -30°C - 60°C / 5%RH - 95%RH
Abmessungen: 71 x 55 x 37 (BxHxT) / 68g
Applications and use
Spannungsversorgung:
- Klinke (Buchse, innen 2,1 mm außen 5,5 mm) Spannungsversorgung: 12V
- RJ-45 (von RS-485) Stromversorgung: 12V
Stromverbrauch: 250mA
Verbrauch: 250mA
Betriebsumgebung: -30°C - 70°C / 0%RH - 100%RH
Lagerumgebung: -30°C - 60°C / 5%RH - 95%RH
Abmessungen: 71 x 55 x 37 (BxHxT) / 68g
Applications and use
- Temperature and humidity monitoring in industrial environment (RS-485 sensors)
