HW Group - PortBox2 - 600532
The RS-232/485 to Ethernet converter. Full RS-232 serial port, web interface, TCP/IP, Windows Virtual Serial Port free of charge. Simple device only.
Producentens varenummer:
600532
Vores artikelnummer:
930090
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - PortBox2 - 600532"

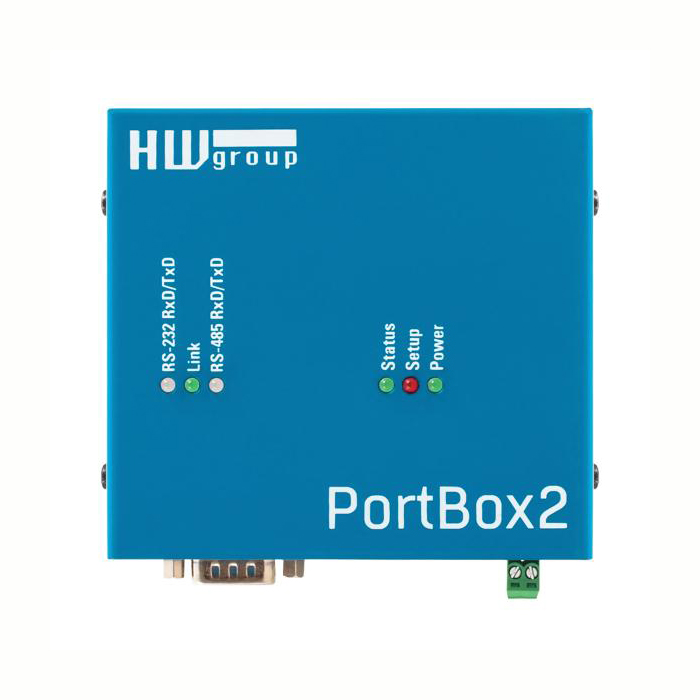

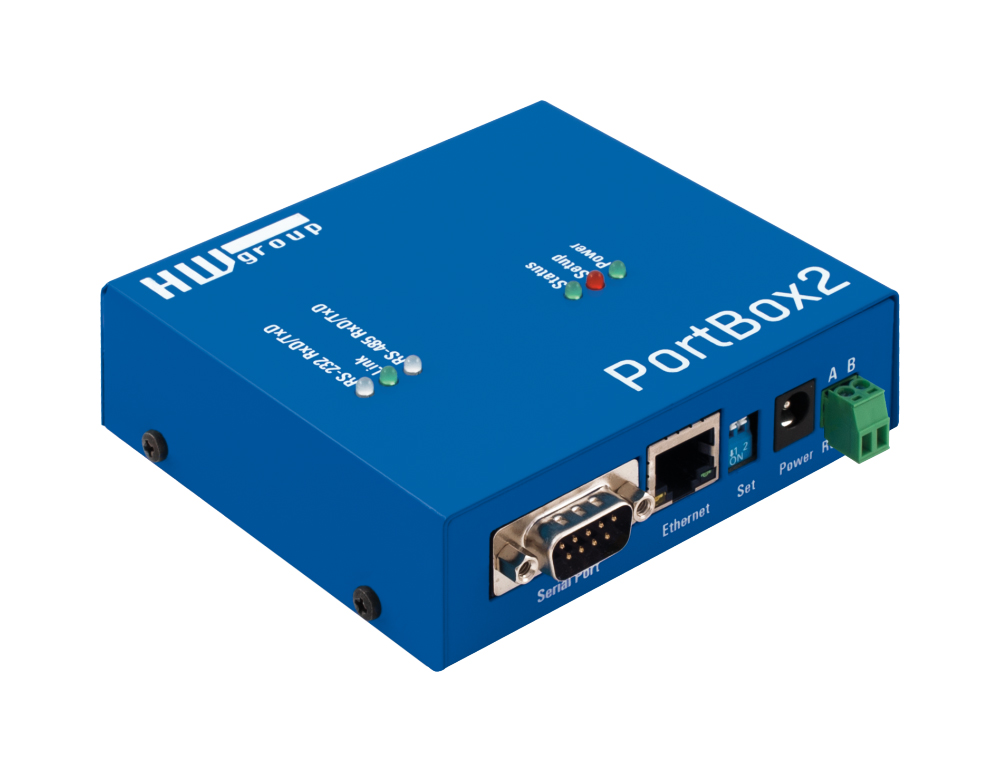

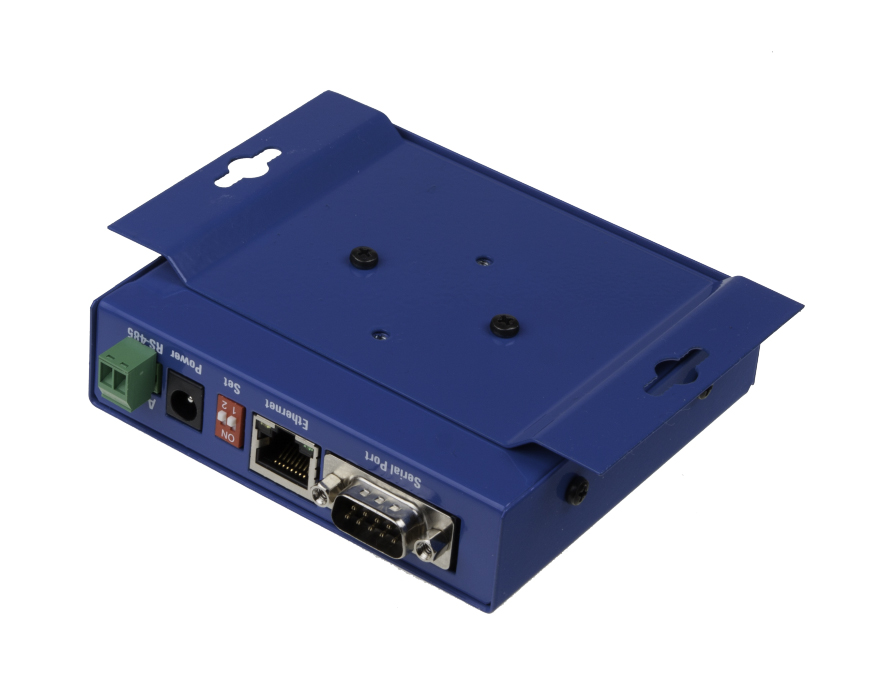

The PortBox2 is an RS-232 and RS-485 converter for serial interfaces to Ethernet. The PortBox2 has a really full-fledged serial RS-232 interface (9-pin). The serial port converter can be connected to a PC via the LAN, with the serial port accessible in Windows as a Virtual Serial Port (VSP).
A built-in web server is used for configuration. The free application HW VSP3 can be used to connect up to 100 remote serial ports to a PC.
The RS-232 port of the PortBox2 can be used simultaneously for data collection (CDR/SMDR, PBX Call Accounting) and for remote access as a Virtual Serial Port. Two devices can be connected in Box-2-Box mode. In this mode, the RS232/485 serial line is extended (tunneled) over the LAN.
Scope of delivery: HW Group PortBox2 - 600532
A built-in web server is used for configuration. The free application HW VSP3 can be used to connect up to 100 remote serial ports to a PC.
The RS-232 port of the PortBox2 can be used simultaneously for data collection (CDR/SMDR, PBX Call Accounting) and for remote access as a Virtual Serial Port. Two devices can be connected in Box-2-Box mode. In this mode, the RS232/485 serial line is extended (tunneled) over the LAN.
Scope of delivery: HW Group PortBox2 - 600532
| RS 232 to x: | Ethernet, RS 485 |
|---|---|
| RS 232/422/485 to x: | Ethernet |
| RS 422/485 to x: | RS 232 |
Features
- 1x full serial interface RS-232/485 with 9-bit communication support.
- M2M communication protocols: http, Telnet, TCP Server, TCP Client/Server.
- Connected via LAN. Configuration via built-in web server, Telnet.
- Full RS-232 serial interface (9 pins: RxD, TxD, GND, CTS, RTS, DSR, DTR, RI, CD).
- RS-485 serial interface: up to 115,200 bd.
- Free SW HW VSP3 : Virtual serial port for Windows (NT service, x64 systems). Supports up to 100 remote serial ports.
- Compatible with a range of third party SW. Examples for programmers to use the product are available in the HWg SDK (Borland C++, MS Visual, VB, C#, PHP, JAVA and more).
Technical details
Applications and use
- Ethernet: 100 Mbit/s
- IP protocols: ARP, UDP/IP, TCP/IP (HTTP, Telnet + RFC2217)

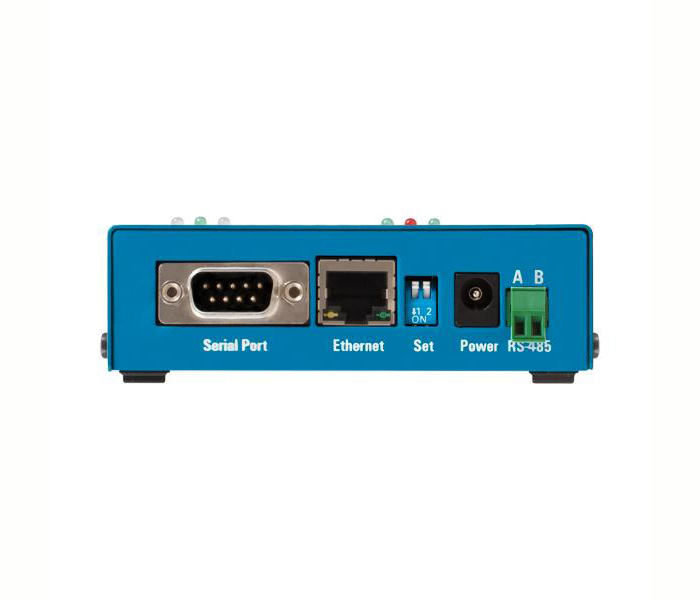

- RS-232: Cannon DB9M (RxD, TxD, CTS, RTS, DSR, DTR, RI, CD, GND)
- RS-485: Terminals
- Power: 8-30V / 0.25A
- Dimensions: 105 x 105 x 25 [mm]
- Operating conditions: 0°C to +75°C (+14°F to +167°F)
Applications and use
- Remote control of power and other technology via RS-232 and RS-485
- Remote control of displays and signal lights
- RFID card readers, online access control systems
- Vending machines
- Security alarms
- Access control systems
- Barcode scanners
