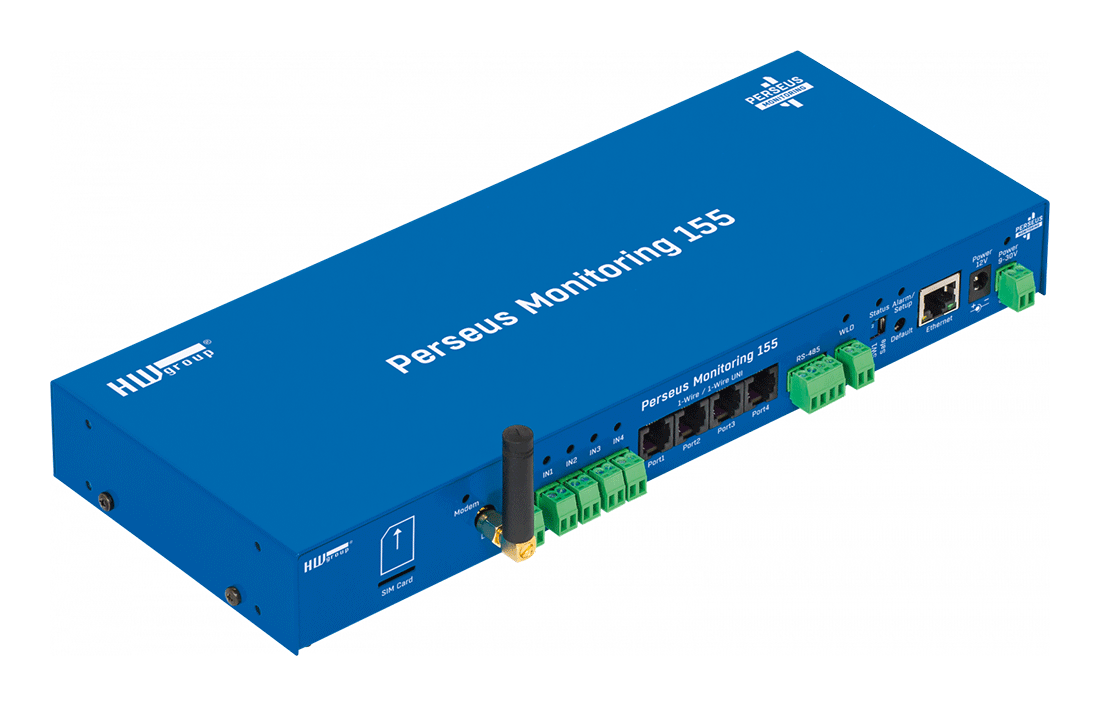

HW Group - Perseus Monitoring 155 Tset
Product information "HW Group - Perseus Monitoring 155 Tset"
Perseus Monitoring 155 is a complex 1U solution for a 19“ rack monitoring system in data centers, AV installations, telecommunications, etc. Integrated LTE modem provides backup connectivity and SMS / Call alerts
Perseus Monitoring 155 uses LAN as the primary connection and LTE as a backup connection when LAN is unavailable. The device connects external physical sensors (°C, %RH, A, V, …), DI (Digital Inputs), WLD (Water Leak Detection) zone, DO (Digital Outputs) and 3 rd party meters via LAN or RS-485 (Modbus/RTU). All sensor data is analyzed and processed by the Perseus device. There is a limit of 100 meters / 1000 values (variables).
A unique feature of the Perseus family is the ability to connect other HWg devices connected via LAN as external meters. Local conditions, Lua scripting, and calendar help with measured data processing.
Physical RS-485 supports Modbus/RTU meters (R/W), it allows to connect 3rd party devices. Many devices from other vendors such as electricity meters, UPS or GenSet can be connected to Perseus and the SensDesk Technology-based Portal this way.
For email alerting, we recommend to use Portal - it‘s faster and more reliable in case of LAN / LTE connectivity combination.
Typical Applications
- Remote site data concentrators from all local sensors / meters
- Remote environmental monitoring inside the cabinet or telco site
- Data Center / Single rack monitoring
- Remote technical room monitoring
- Telecommunication installations
- Remote infrastructure monitoring
PACKAGE CONTENTS: Perseus Monitoring 155, Universal power adaptor 12V 1.5A, Temp-1Wire 3m IP67, LTE antena quadband pigtail . No simcard included
| Alerts: | E-Mail, SMS |
|---|---|
| Device: | Monitoring Device |
| Interface: | Ethernet |
| Monitoring: | Temperature |
| Mounting: | Rackmount |
| Temperature Range: | Standard Temperature Range |
Features
- Ethernet: RJ45 (100BASE-T); WEB: Built-in web server
- LTE: Global
- Sensors: 8xRJ11 port - max. 100 external sensors (1-Wire / 1-Wire UNI)
- RJ11 sensors: Temperature, Relative Humidity (Indoor / Outdoor), Voltage, Current (0-30A or 4-20mA) and much more
- RS-485 (Modbus/RTU): 1x terminal block
- WLD: 1 zone for external Water Leak Detection sensing cable
- DO (Digital Outputs): 4x DO (relays)
- DI (Digital Inputs): 16x DI (dry contact)
- Detectors: Smoke, door contact, fan failure detector, power presence, etc
- Device Alerts: SNMP trap, email, SMS / Calls
- Portal Alerts: Email, SMS / Calls, Device Invalid Alert
- Open API: SNMP, XML, Modbus/TCP, MQTT
- Professional product: IPv6, SNMP Traps, SNMP v3
- Security: Radius - IEEE 802.1X, Admin and user accounts, HTTPs (customer certificate)
Protocols
- HTTP: YES
- HTTPS: YES
- DHCP: YES
- SNMP: SNMP v1 + SNMP v3
- COAP: NO
- SNMP trap: YES
- SNTP: YES
- SMTP: YES
- SMTP TLS: YES
- XML: YES
- HWg-Push (SensDesk): YES
- NB-Push: NO
- HWg-DCD: NO
- MQTT: YES
- IPv6: YES
- Modbus/TCP: YES
- Syslog: NO
- Net-GSM (SMS GW): YES
Sensors
- Meters limit: 100
- Variables limit: 1000
- 1-Wire values*: 100
- RS-485 values*: 100
Meters API
- Meters API: 1-Wire: YES
- Meters API: Modbus/RTU: YES
- Meters API: RS-485/HWg: NO
- Meters API: Modbus/TCP: YES
- Meters API: SNMP: YES
- Meters API: MQTT: YES
- Meters API: HWg XML : YES
- Meters API: M-Bus: NO
- Number of 1-Wire ports: 8
- Number of RS-485 ports: 1
- Comm monitor: NO
- Virtual Values (conversions): YES
- Calibration-shift: YES
Inputs
- Dry Contact
- Quantity: 16
- Counters: YES
- Water Leak Detection zone
- Quantity: 1
- Counters: NO
Outputs
- Relays standard
- Output load voltage: 120V AC/60V DC
- Output load current: 1000mA
- Quantity: 4
- Def. impulses out: YES
- Local condition output: YES
Alarms
- E-mail destinations: 100
- E-mail templates: YES
- SMS dest. (via SMS GW): 100
- SMS templates: YES
- Trap destinations: 100
- Group Alarm: YES
- Alarm reminder: YES
- Periodical status: YES
- Alarm escalation: YES
- IO over HTTP: NO
Box2Box
- >
- XML
- Quantity: 1000
- Client/server: Client
Interface
- Ethernet: 10/100Mbit
- WiFi: NO
- Mobile networks: LTE
- Wiegand: NO
- 1-Wire: YES
- RS-232: NO
- RS-485: YES
- Antenna: NO
Power supply
- Jack (barrel, inner 2,1 mm outer 5,5 mm)
- Power supply: 9-30V
- Consumption: 500mA
- Terminal Block
- Power supply: 9-30V
- Consumption: 500mA
- Terminal Block
- Power supply: 48V
- Consumption: 250mA
- RJ-45
- Power supply: PoE
- Consumption: 250mA
- PoE/48V: YES
- Operating environment: -30°C – 65°C / 5%RH – 95%RH
- Storage environment: -30°C – 65°C / 5%RH – 95%RH
- Dimensions: 300 x 145 x 38 (WxHxD) / 1120g
- Warranty: 24 months
Type
- Environment: Industrial, SoHo, IT
- Installation: Rack, Table
- IP Rating: IP40
- Housing: Metal
Others
- Radius: YES
- Scheduler: YES
- Lua scripts: YES
- SWITCH: NO
- Configuration: Web
