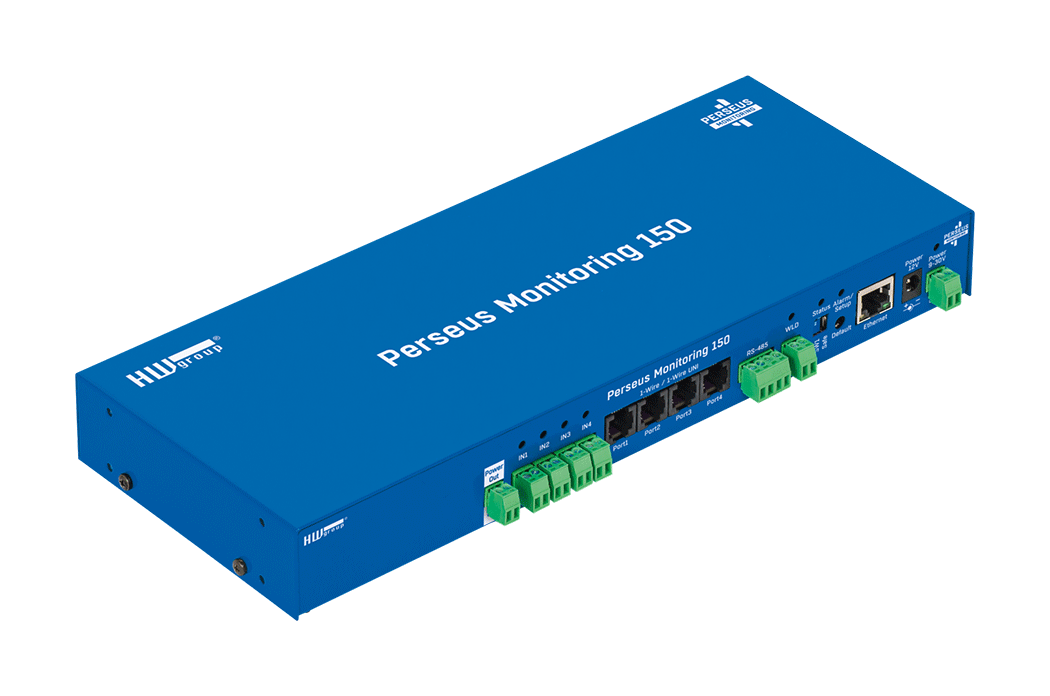

HW Group - Perseus Monitoring 150 Tset
Product information "HW Group - Perseus Monitoring 150 Tset"
Perseus Monitoring 150 is a complex 1U solution for a 19” rack remote monitoring system (data centers, AV installations). Connect external physical sensors (°C, %RH, A, V, …), Detectors (relay / dry contact) or WLD (Water Leak Detection) sensing cable. 3rd party meters (sensors) can also be connected via LAN or Modbus/RTU.
Perseus 150 combines data from external physical sensors / detectors with data from other HWg devices connected via LAN. Local conditions, Lua scripting, calendar or periodic scheduler help to analyze the measured data.
Email or SNMP Trap alert can be sent from the Perseus device. Measured values are available via Open API (XML, Modbus/TCP, MQTT).
Perseus Monitoring 150 can be connected to the Portal (SensDesk technology). Together with the Portal it’s a powerful solution for professional applications.
A unique feature of Perseus products is the Meters API. Perseus can read over LAN sensor values from other devices (e.g. STE2 R2) and use this data for analysis or alerting.
Typical Applications
- Remote site data concentrators from all local sensors / meters
- Remote environmental monitoring inside the cabinet or telco site
- Data Center / Single rack monitoring
- Remote technical room monitoring
- Telecommunication installations
- Remote infrastructure monitoring
PACKAGE CONTENTS: Perseus Monitoring 150, Universal power adaptor 12V 1.5A, Temp-1Wire 3m IP67
| Alerts: | E-Mail, SMS |
|---|---|
| Device: | Monitoring Device |
| Interface: | Ethernet |
| Monitoring: | Temperature |
| Mounting: | Rackmount |
| Temperature Range: | Standard Temperature Range |
Features
- Ethernet: RJ45 (100BASE-T); WEB: Built-in web server
- Sensors: 8xRJ11 port - max. 100 external sensors (1-Wire / 1-Wire UNI)
- RJ11 sensors: Temperature, Relative Humidity (Indoor / Outdoor), Voltage, Current (0-30A or 4-20mA) and much more
- RS-485 (Modbus/RTU): 1x terminal block
- WLD: 1 zone for external Water Leak Detection sensing cable
- DO (Digital Outputs): 4x DO (relays)
- DI (Digital Inputs): 16x DI (dry contact)
- Detectors: Smoke, door contact, fan failure detector, power presence, etc
- Device Alerts: SNMP trap, email, (SMS / Calls with external SMS GW)
- Portal Alerts: Email, SMS / Calls, Device Invalid Alert
- Open API: SNMP, XML, Modbus/TCP, MQTT
- Professional product: IPv6, SNMP Traps, SNMP v3
- Security: Radius - IEEE 802.1X, Admin and user accounts, HTTPs (customer certificate)
- Meters API (LAN): HWg devices XML, Modbus/TCP, SNMP, MQTT
- Data processing: Condition & Actions, Virtual sensors, Schedule
Protocols
- HTTP: YES
- HTTPS: YES
- DHCP: YES
- SNMP: SNMP v1 + SNMP v3
- COAP: NO
- SNMP trap: YES
- SNTP: YES
- SMTP: YES
- SMTP TLS: YES
- XML: YES
- HWg-Push (SensDesk): YES
- NB-Push: NO
- HWg-DCD: NO
- MQTT: YES
- IPv6: YES
- Modbus/TCP: YES
- Syslog: NO
- Net-GSM (SMS GW): YES
Sensors
- Meters limit: 100
- Variables limit: 1000
- 1-Wire values*: 100
- RS-485 values*: 100
Meters API
- Meters API: 1-Wire: YES
- Meters API: Modbus/RTU: YES
- Meters API: RS-485/HWg: NO
- Meters API: Modbus/TCP: YES
- Meters API: SNMP: YES
- Meters API: MQTT: YES
- Meters API: HWg XML : YES
- Meters API: M-Bus: NO
- Number of 1-Wire ports: 8
- Number of RS-485 ports: 1
- Comm monitor: NO
- Virtual Values (conversions): YES
- Calibration-shift: YES
Input
- Dry Contact
- Quantity: 16
- Counters: YES
- Water Leak Detection zone
- Quantity: 1
- Counters: NO
Outputs
- Relays standard
- Output load voltage: 120V AC/60V DC
- Output load current: 1000mA
- Quantity: 4
- Def. impulses out: YES
- Local condition output: YES
Alarms
- E-mail destinations: 100
- E-mail templates: YES
- SMS dest. (via SMS GW): 100
- SMS templates: YES
- Trap destinations: 100
- Group Alarm: YES
- Alarm reminder: YES
- Periodical status: YES
- Alarm escalation: YES
- IO over HTTP: NO
Box2Box
- XML
- Quantity: 1000
- Client/server: Client/server
Interface
- Ethernet: 10/100Mbit
- WiFi: NO
- Mobile networks: NO
- Wiegand: NO
- 1-Wire: YES
- RS-232: NO
- RS-485: YES
- Antenna: NO
Power and dimensions
- Power supply
- Jack (barrel, inner 2,1 mm outer 5,5 mm)
- Power supply: 9-30V
- Consumption: 500mA
- Terminal Block
- Power supply: 9-30V
- Consumption: 500mA
- Terminal Block
- Power supply: 48V
- Consumption: 250mA
- RJ-45
- Power supply: PoE
- Consumption: 250mA
- Jack (barrel, inner 2,1 mm outer 5,5 mm)
- PoE/48V: YES
- Operating environment: -30°C – 85°C / 5%RH – 95%RH
- Storage environment: -30°C – 65°C / 5%RH – 95%RH
- Dimensions: 300 x 145 x 38 (WxHxD) / 1120g
- Warranty: 24 months
Type
- Environment: Industrial, SoHo, IT
- Installation: Rack, Table
- IP Rating: IP40
- Housing: Metal
Others
- Radius: YES
- Scheduler: YES
- Lua scripts: YES
- SWITCH: NO
- Configuration: Web
