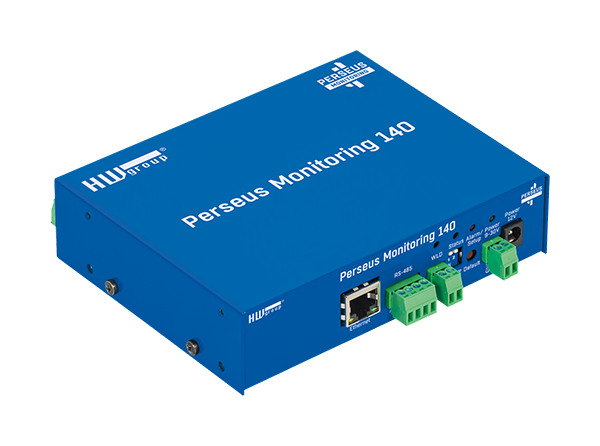

HW Group - Perseus Monitoring 140
Perseus Monitoring 140 is a solution for remote monitoring on site with LAN. External sensors (up to 1000 variables) - 4x RJ11 port (1W-UNI) or 1x RS-485 (Modbus/RTU). Multiple DI / DO (relay) and a WLD port.
Perseus 140 combines data from external physical sensors / detectors with data from other HWg devices connected via LAN. Local conditions, Lua scripting, calendar or periodic scheduler help to analyze the measured data.
Email or SNMP Trap alert can be sent from the Perseus device. Measured values are available via Open API (XML, Modbus/TCP, MQTT).
Perseus Monitoring 140 can be connected to the Portal (SensDesk technology). Together with the Portal it’s a powerful solution for professional applications with Graphs, SNMP and Device Invalid Alert.
A unique feature of Perseus products is the Meters API. Perseus can read over LAN sensor values from other devices (e.g. STE2 R2) and use this data for analysis or alerting.
Typical Applications
- Remote machine monitoring
- Remote environmental monitoring of warehouse / storage spaces
- Remote monitoring of technical room (sites)
- Remote site data concentrators of all local sensors / meters
- Remote environmental monitoring within the cabinet or telco site
- Pharmaceutical / warehouse environment monitoring
- Remote base transceiver station monitoring
- Greenhouse monitoring
PACKAGE CONTENTS: Perseus Monitoring 140
| Alerts: | E-Mail, SMS |
|---|---|
| Device: | Monitoring Device |
| Interface: | Ethernet |
| Monitoring: | Temperature |
| Mounting: | Rackmount |
| Temperature Range: | Standard Temperature Range |
Features
- Ethernet: RJ45 (100BASE-T); WEB: Built-in web server
- Sensors: 4xRJ11 port - max. 100 external sensors (1-Wire / 1-Wire UNI)
- RJ11 sensors: Temperature, Relative Humidity (Indoor / Outdoor), Voltage, Current (0-30A or 4-20mA) and much more
- RS-485 (Modbus/RTU): 1x terminal block
- WLD: 1 zone for external Water Leak Detection sensing cable
- DO (Digital Outputs): 2x DO (relays)
- DI (Digital Inputs): 4x DI (dry contact)
- Detectors: Smoke, door contact, fan failure detector, power presence, etc
- Device Alerts: SNMP trap, email, (SMS / Calls with external SMS GW)
- Portal Alerts: Email, SMS / Calls, Device Invalid Alert
- Open API: SNMP, XML, Modbus/TCP, MQTT
- Professional product: IPv6, SNMP Traps, SNMP v3
- Security: Radius - IEEE 802.1X, Admin and user accounts, HTTPs (customer certificate)
- Meters API (LAN): HWg devices XML, Modbus/TCP, SNMP, MQTT
- Data processing: Condition & Actions, Virtual sensors, Scheduler
Protocols
- HTTP: YES
- HTTPS: YES
- DHCP: YES
- SNMP: SNMP v1 + SNMP v3
- COAP: NO
- SNMP trap: YES
- SNTP: YES
- SMTP: YES
- SMTP TLS: YES
- XML: YES
- HWg-Push (SensDesk): YES
- NB-Push: NO
- HWg-DCD: NO
- MQTT: YES
- IPv6: YES
- Modbus/TCP: YES
- Syslog: NO
- Net-GSM (SMS GW): YES
Sensors
- Meters limit: 100
- Variables limit: 1000
- 1-Wire values*: 100
- RS-485 values*: 100
Meters API
- Meters API: 1-Wire: YES
- Meters API: Modbus/RTU: YES
- Meters API: RS-485/HWg: NO
- Meters API: Modbus/TCP: YES
- Meters API: SNMP: YES
- Meters API: MQTT: YES
- Meters API: HWg XML : YES
- Meters API: M-Bus: NO
- Number of 1-Wire ports: 4
- Number of RS-485 ports: 1
- Comm monitor: NO
- Virtual Values (conversions): YES
- Calibration-shift: YES
Input
- Dry Contact
- Quantity: 4
- Counters: YES
- Water Leak Detection zone
- Quantity: 1
- Counters: NO
Outputs
- Relays standard
- Output load voltage: 120V AC/60V DC
- Output load current: 1000mA
- Quantity: 2
- Def. impulses out: YES
- Local condition output: YES
Alarms
- E-mail destinations: 100
- E-mail templates: YES
- SMS dest. (via SMS GW): 100
- SMS templates: YES
- Trap destinations: 100
- Group Alarm: YES
- Alarm reminder: YES
- Periodical status: YES
- Alarm escalation: YES
- IO over HTTP: NO
Box2Box
- XML
- Quantity: 1000
- Client/server: Client/server
Interface
- Ethernet: 10/100Mbit
- WiFi: NO
- Mobile networks: NO
- Wiegand: NO
- 1-Wire: YES
- RS-232: NO
- RS-485: YES
- Antenna: NO
Power and dimensions
- Power supply
- Jack (barrel, inner 2,1 mm outer 5,5 mm)
- Power supply: 9-30V
- Consumption: 500mA
- Terminal block
- Power supply: 9-30V
- Consumption: 500mA
- Jack (barrel, inner 2,1 mm outer 5,5 mm)
- PoE/48V: NO
- Operating environment: -30°C – 85°C / 5%RH – 95%RH
- Storage environment: -30°C – 65°C / 5%RH – 95%RH
- Dimensions: 145 x 135 x 38 (WxHxD) / 550g
- Warranty: 24 months
Type
- Environment: Industrial, SoHo, IT
- Installation: Rack, Table
- IP Rating: IP40
- Housing: Metal
Others
- Radius: YES
- Scheduler: YES
- Lua scripts: YES
- SWITCH: NO
- Configuration: Web
