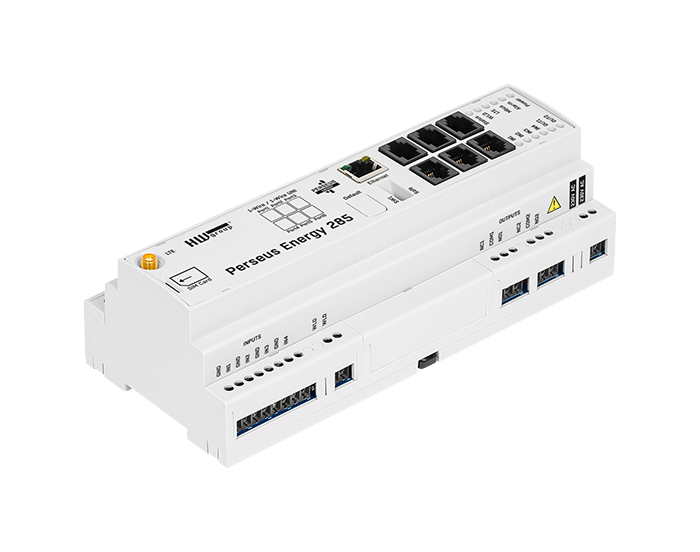

HW Group - Perseus Energy 285
Product information "HW Group - Perseus Energy 285"
Perseus Energy 285 combines data from external physical sensors, detectors and meters with data from other HWg devices connected via LAN. Local conditions, Lua scripting, calendar or periodic scheduler help to analyze the measured data.

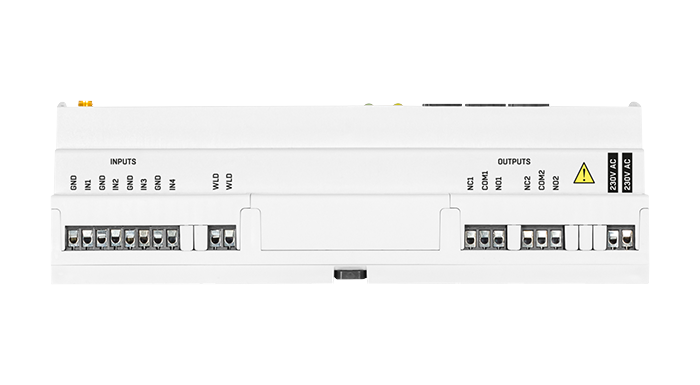

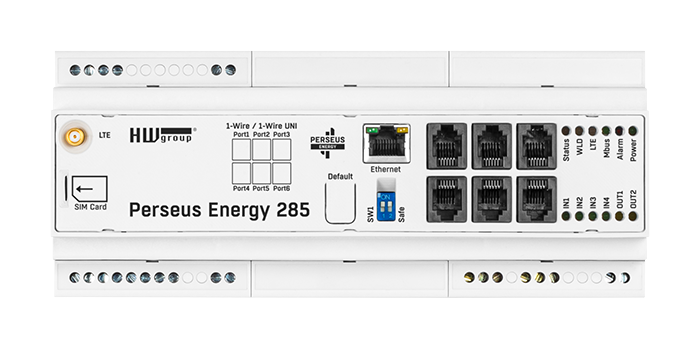

Within one DIN rail unit there are 6 1W-UNI (RJ11) ports, 4 DI (Digital Inputs) with S0 pulse counters, RS-485 (Modbus/RTU), one WLD (Water Leak Detection) zone input, M-Bus Master input, and 2 DO (Relay Outputs).
Up to 100 external sensors with 1000 values can be connected. SMS, Call, Email or SNMP Trap alert can be sent from the Perseus device. Measured values are available via Open API (XML, Modbus/TCP, MQTT).
The Perseus Energy 285 unit has a built-in LTE modem that serves as an SMS gateway for Perseus itself as well as other connected HW group devices, and also provides back up connectivity to the Portal.
A unique feature of all Perseus products is the Meters Open API. That means that Perseus can read over LAN sensor values from other devices (e.g. STE2 R2) and use this data for analysis or alerting.

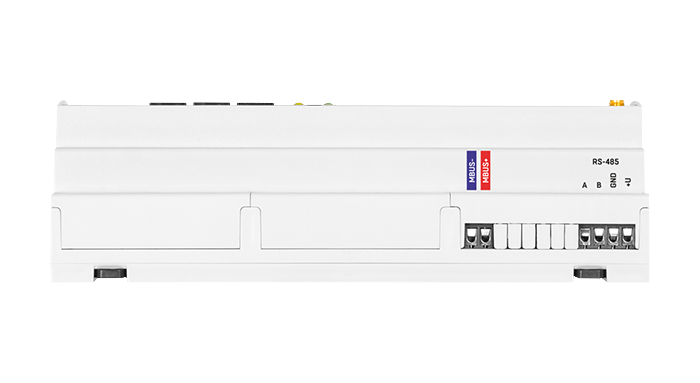

The combination of the RS-485 physical interface on the Perseus Energy 285, M-Bus Master and Modbus-RTU Meters Open API allows data to be read from 3rd party meters, UPS or air conditioning products.
PACKAGE CONTENTS: Perseus Energy 285
| Alerts: | Call, E-Mail, SMS |
|---|---|
| Connection: | Digitale I/O |
| Temperature Range: | Extended Temperature Range |
Features
- Integrated LTE modem for backup connectivity and SMS/Call alerts
- Support for 3rd party meters
- Support for 3rd party sensors
- Remote configuration with SensDesk Technology
- Meters API - ability to work with other HWg devices
- Variables can have multiple conditions and actions
- 802.1X central security management
- Templates repository for 3rd party sensors
- BACnet protocol integration
Specifications
Interfaces
- Sensors: 6× RJ11 port – 1-Wire / 1-Wire UNI
- Meters API: HWg XML, Modbus/TCP, MQTT, SNMP
- M-Bus (Master): 1× terminal block
- RS-485 (Modbus/RTU): 1× terminal block (with 12V)
- WLD: 1 zone for external Water Leak Detection sensing cable A/B
- DO (Digital Outputs): 2× DO (relays)
- DI (Digital Inputs): 4× DI (dry contact)
Features
- Alerts: SNMP trap, email, SMS/calls
- LTE: Global
- Open API: SNMP, XML, Modbus/TCP, MQTT
- Professional product: IPv6, SNMP traps, SNMPv3
- Security: Radius - IEEE 802.1X, Admin and user accounts, HTTPs (customer certificate)
Software / Services
- SensDesk.com: Online remote monitoring service.
Graphs, alerts, device management. - Portal on premise: Standalone individual SensDesk installation
- Portal Providers: Several SensDesk Technology portals
- HWg-cloud.com: Free of charge portal service
- HWg Monitor: Smart phone application (iOS, Android)
- Other software: 3rd party software, HWg-SDK
Technical specifications
- Ethernet: RJ45 (100BASE-T)
- Power: 230V
- Operating temperature: -30 °C to 65 °C (-22 °F to 149 °F)

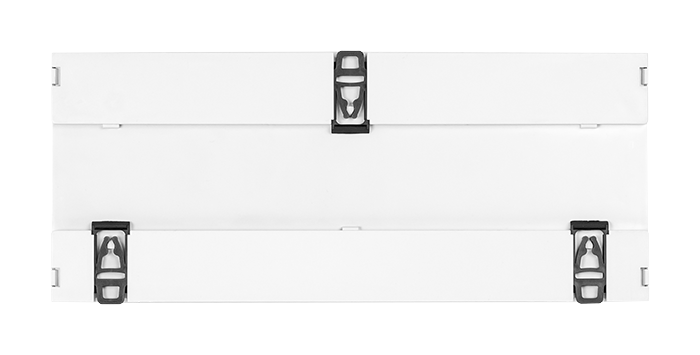

- Mechanical: Plastic case, DIN rail, 65 × 90 × 213 mm
- Warranty: 24 months
