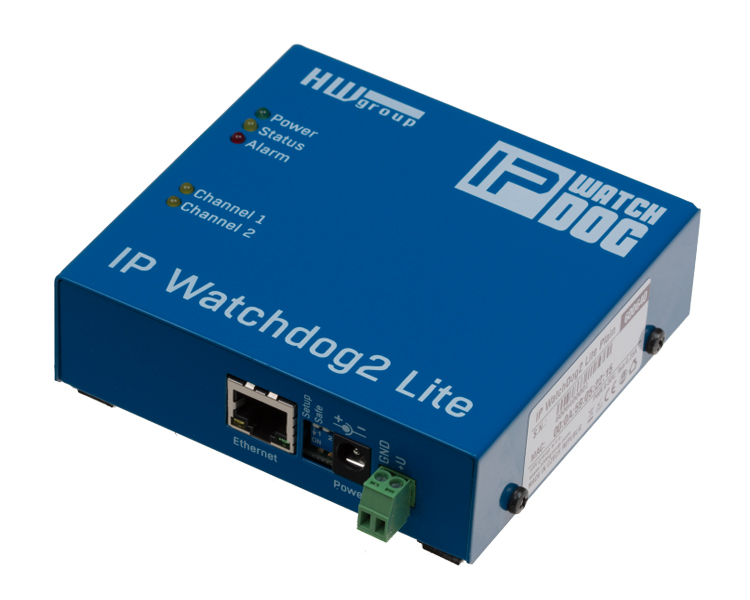

HW Group - IP WatchDog2 Lite Set - 600643
Monitoring of LAN devices and reboot 10x monitoring of LAN devices (ping out, ping in), 2x relay outputs, SNMP, email (incl. power supply unit)
Listepris:
2.763,95 kr.*
Forhandlerpris - Login
5 stykker til rådighed, leveringstid: 2 - 3 arbejdsdage
Producentens varenummer:
600643
Vores artikelnummer:
930086
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - IP WatchDog2 Lite Set - 600643"
During a user-defined period, the IP WatchDog2 Lite detects the status of the Internet connection and the devices connected to the LAN . The IP WatchDog2 Lite can monitor up to ten channels.
If the Internet connection or a monitored device stops responding, the IP WatchDog2 Lite can reboot up to two connected devices via the DO 50 V / 0.5 A (DC 30 V / 1A) relay.
If the status of one of the monitored channels changes, IP WatchDog2 Lite can send a notification directly as an SNMP trap as well as an e-mail to two addresses or indirectly via the HWg-SMS-GW3 gateway in the same LAN as an SMS or a ring to send a telephone number.
An integrated web server is used for configuration. The unit can be monitored remotely via the free SensDesk portal in combination with the SensDesk mobile app for iOS and Android. It works with HWg-PDMS and HWg-Trigger.
The IP WatchDog2 Lite uses the following four methods for status detection:
Scope of delivery : HW Group IP WatchDog2 Lite Set - 600643
If the Internet connection or a monitored device stops responding, the IP WatchDog2 Lite can reboot up to two connected devices via the DO 50 V / 0.5 A (DC 30 V / 1A) relay.
If the status of one of the monitored channels changes, IP WatchDog2 Lite can send a notification directly as an SNMP trap as well as an e-mail to two addresses or indirectly via the HWg-SMS-GW3 gateway in the same LAN as an SMS or a ring to send a telephone number.
An integrated web server is used for configuration. The unit can be monitored remotely via the free SensDesk portal in combination with the SensDesk mobile app for iOS and Android. It works with HWg-PDMS and HWg-Trigger.
The IP WatchDog2 Lite uses the following four methods for status detection:
- Ping Out : IP WatchDog2 periodically sends PING requests.
- Ping In : IP WatchDog2 waits for a PING from the monitored device
- Web Client : IP WatchDog2 monitors the accessibility of a web page
- Web server : IP WatchDog2 waits for a request for its internal WEB page
Scope of delivery : HW Group IP WatchDog2 Lite Set - 600643
| Device: | Monitoring Device |
|---|
Features
- 10x monitoring channel in LAN
- 2x relay output AC 50V / 0.5A (DC 30V / 1A)
- 1x SNMP trap; 2x e-mail; 1x "SMS + Ring" (via external GSM gateway).
- A change in the status of the monitored device sends a warning via e-mail, SMS, SNMP trap or activates the DO relay and an acoustic alarm.
- Connected via LAN. Configuration via built-in web server.
- For ring or SMS alarms, use the HWg-SMS-GW3 gateway on the same LAN.
- Data logger for up to 200 data sets. With the HWg-PDMS software, logged data can be exported to MS Excel.
- Compatible with a range of third-party SWs (SCADA, etc.). Examples for programmers to use the product can be found in the HWg SDK (Borland C ++, MS Visual, VB, C #, PHP, JAVA and more).
Technical details
Applications and use
Activating a backup Internet connection in case the primary connection fails.
Restarting an unresponsive device connected to the LAN.
Resetting or turning remote devices off and on again.
- Output load voltage: 24 V DC / 60 V AC
- Output load current: 1000mA
- Ethernet: 10/100 Mbit
- RS-232: Yes
- Power supply: 9-30V
- Power consumption: 250mA
- Protocols: HTTP, DHCP, SNMP, SNMP Trap, SNTP, SMTP, SMTP TLS, XML, HWg Push, Syslog
- PoE / 48V: Optional
- Operating environment: -30 ° C to 75 ° C / 0% rH - 100% rH
- Storage environment: -30 ° C to 60 ° C / 5% rH - 95% rH
- Dimensions: 105 x 94 x 33 (W x H x D) / 297 g
Applications and use
Activating a backup Internet connection in case the primary connection fails.
Restarting an unresponsive device connected to the LAN.
Resetting or turning remote devices off and on again.
- Routers and switches
- WiFi APs
- IP cameras
- PCs
