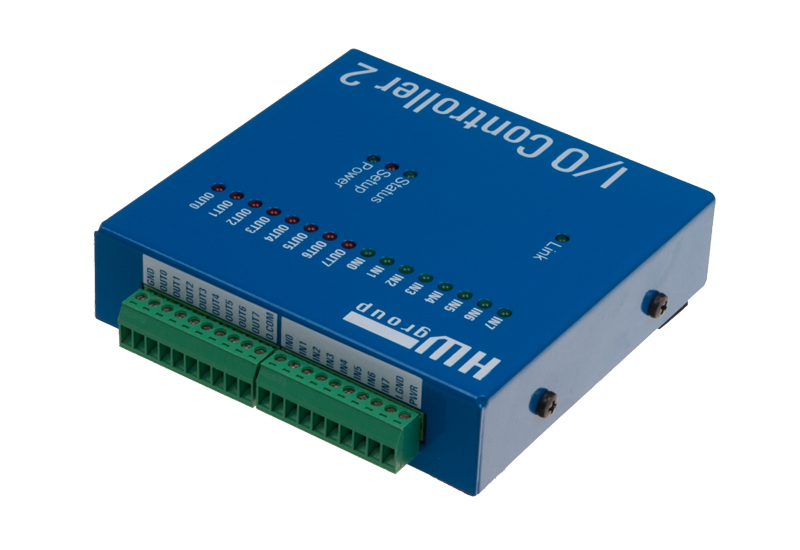

HW Group - I/O-Controller 2 Set - 600550
Connects serial interface and I/O to the internet 1x RS-232/485, 8x DI/DO, HTTP, Modbus/TCP, 2x box-to-box possible (incl. power supply)
Listepris:
3.710,10 kr.*
Forhandlerpris - Login
1 stykker til rådighed, leveringstid: 2 - 3 arbejdsdage
Producentens varenummer:
600550
Vores artikelnummer:
930016
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - I/O-Controller 2 Set - 600550"
The I/O controller 2 connects a full RS-232/485 serial port and a set of eight digital inputs and eight digital outputs to the Ethernet. The I/O controller 2 has a truly full RS-232 serial port (9-pin). The unit's serial port can be connected to a PC via the LAN, with the serial port accessible in Windows as a VSP (Virtual Serial Port). The digital inputs and outputs can be controlled via the Internet or via Modbus/TCP.
A built-in web server is used for configuration. With the free HW VSP3 application, up to 100 remote serial ports can be connected to a PC.
Two units can be connected in Box-2-Box mode. In this mode, the digital I/O and the RS232/485 serial line are extended via the LAN.
Scope of delivery: HW Group I/O Controller 2 Set - 600550
A built-in web server is used for configuration. With the free HW VSP3 application, up to 100 remote serial ports can be connected to a PC.
Two units can be connected in Box-2-Box mode. In this mode, the digital I/O and the RS232/485 serial line are extended via the LAN.
Scope of delivery: HW Group I/O Controller 2 Set - 600550
Features
- 1x full serial interface RS-232/485 with 9-bit communication support
- 8x digital input (for dry contacts, switches or 5-20 V DC)
- 8x digital output (output collector)
- M2M communication protocols: http, Telnet, TCP server, TCP client / server.
- Connected via LAN. Configuration via built-in Telnet web server.
- Full RS-232 serial port (9 pins: RxD, TxD, GND, CTS, RTS, DSR, DTR, RI, CD).
- RS-485 serial interface: up to 115,200 bd.
- Free SW HW VSP3: Virtual serial port for Windows (NT service, x64 systems). Supports up to 100 remote serial ports.
- Compatible with a range of third party SWs. Examples for programmers to use the product can be found in the HWg SDK (Borland C ++, MS Visual, VB, C #, PHP, JAVA and more).
Technical details
Applications and use
- Output load voltage: 50V
- Output load current: 500mA
- Ethernet: 10/100 Mbit
- RS-232: Yes
- RS-485: Yes
- Power supply: 9-30V
- Consumption: 250mA
- Protocols: HTTP, Modbus/TCP
- PoE / 48V: Optional
- Operating environment: -10 ° C to 75 ° C / 5% rH - 95% rH
- Storage environment: -30 ° C to 60 ° C / 5% rH - 95% rH
- Dimensions: 105 x 94 x 33 (W x H x D) / 372 g
Applications and use
- Connect up to eight buttons/switches to a SW application.
- Connect your RS-232 devices to your LAN - barcode / RFID scanners, serial printers, displays.
- Outputs can, for example, open a door, switch on a horn or disconnect the power supply - remotely via the network.
- I/O can be controlled by any SCADA system independent of the serial line via Modbus/TCP
- Remote control of power and other technology via RS-232 and RS-485
- Remote control of displays and signal lights
- Remote status checks of PIR sensors, door contacts and security systems
- Card readers, RFID
- Vending machines
- Security alarms
- Access control systems
- UPS control and logging devices
- Barcode scanners
