HW Group - HWg-SMS-GW3 - 600642

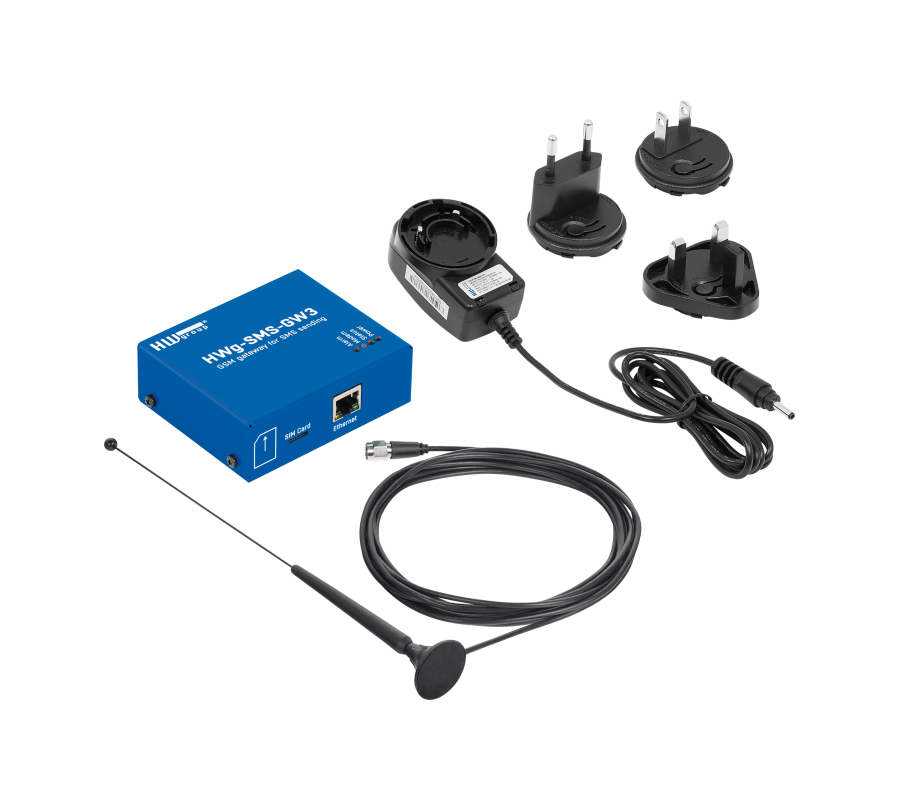

Central GSM-SMS gateway for HW group sensors. IP sensors connected via LAN. Including GSM modem, external antenna and mains adapter.
Producentens varenummer:
600642
Vores artikelnummer:
930076
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - HWg-SMS-GW3 - 600642"
HWg-SMS-GW3 is a central SMS gateway that HWg devices and applications in the same network can use to dial numbers or send SMS alerts. The destination numbers are specified in the sending device or in the HWg Trigger application.
The central SMS gateway HWg-SMS-GW3 significantly saves the cost of external GSM modems, as the entire installation requires only one SIM card. No additional software or internet connection is required.
Applications and use:
The central SMS gateway HWg-SMS-GW3 significantly saves the cost of external GSM modems, as the entire installation requires only one SIM card. No additional software or internet connection is required.
Applications and use:
- One SMS gateway for the entire network with web-based configuration.
- No additional software required to send SMS.
- The phone number of the SMS recipient is configured in the sending device.
- Supports an "SMS + Ring" function.
- Connection for an external antenna.
- Quad-band GSM.
- Examples for programmers available in the HWg SDK (Borland C++, MS Visual C, VB, C#, PHP, JAVA and more).
| Bandwidth: | GSM (2G) |
|---|---|
| Connection: | Ethernet Port, WLAN |
| Options: | 2G/3G |
| Temperature Range: | Standard Temperature Range |
Features
- Ethernet: 10/100 Mbit/s
- Configuration: WEB interface
- GSM antenna: External 3m cable, SMA
- GSM standard: Quad-band 850 / 900 / 1800 / 1900 MHz
- Can be used to send SMS from: Poseidon2, HWg-WLD, HWg-PWR 3 / 12 / 25, IP WatchDog2, Poseidon 2250
- Can be used to send SMS from the following software and services: HWg-Trigger software, HWg-DCD software, Nagios monitoring software (Netways: notify-poseidon-sms.pl), www.SensDesk.com online service.
- M2M communication protocols: SNMP, XML, netGSM (http, SOAP)
- Internal memory for outgoing SMS queue: 100 messages
- Support for programmers: HWg-SDK
- Mechanical: 76 x 93 x 28 mm, wall-mountable, fits on a DIN rail
Technical details
Connection
Ethernet: 100 Mbit/s
IP protocols: ARP, TCP/IP (HTTP, netGSM)
GSM: Quad band 850 / 900 / 1800 / 1900 MHz
Antenna: External, SMA quad-band, 3m
Message queue
SMS queue memory: 100 messages
Parameters
Power: 9-15 V / 0.4 A
Dimensions: 92 × 76 × 31 mm
Environment: From -10 °C to +65 °C (from +14 °F to +149 °F)
Supports: SWHWg-PDMS, HWg-Trigger
Connection
Ethernet: 100 Mbit/s
IP protocols: ARP, TCP/IP (HTTP, netGSM)
GSM: Quad band 850 / 900 / 1800 / 1900 MHz
Antenna: External, SMA quad-band, 3m
Message queue
SMS queue memory: 100 messages
Parameters
Power: 9-15 V / 0.4 A
Dimensions: 92 × 76 × 31 mm
Environment: From -10 °C to +65 °C (from +14 °F to +149 °F)
Supports: SWHWg-PDMS, HWg-Trigger
