HW Group - HWg-Ares 12 TSet - 600524
Remote monitoring and alarm 2x DI, max. 14x sensors, interface, TCP, HTTP, SNTP, SMTP, HWg-PUSH, PDMS, TCP, XML, SMS, Email (incl. temperature sensor 3m, QuadBand GSM antenna 3m, USB cable for configuration, mounting plate)
Listepris:
3.948,50 kr.*
Forhandlerpris - Login
Leveringstid: Varer er bestilt, vil være tilgængelige igen inden længe
Producentens varenummer:
600524
Vores artikelnummer:
930001
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - HWg-Ares 12 TSet - 600524"
Ares 12 is an industrial system for remote monitoring and alarming via GSM for sites without LAN access. Includes battery backup. Connect up to 14 external sensors and 2 dry contact detectors.
Ares monitors the readings of the connected sensors. When a value reaches the alarm threshold, the unit sends an email or text message (SMS) or dials specific numbers. Use the free SensDesk portal to view measurement data in a complex dashboard.
Ares products support FOTA (Firmware Over The Air) for remote firmware updates.
Scope of delivery: HW Group HWg-Ares 12 TSet - 600524
Ares monitors the readings of the connected sensors. When a value reaches the alarm threshold, the unit sends an email or text message (SMS) or dials specific numbers. Use the free SensDesk portal to view measurement data in a complex dashboard.
Ares products support FOTA (Firmware Over The Air) for remote firmware updates.
Scope of delivery: HW Group HWg-Ares 12 TSet - 600524
| Alerts: | E-Mail, SMS |
|---|---|
| Classification: | Small Server Rooms |
| Device: | Monitoring Device |
| Device Classes: | > 8 Sensors, Expandable with DI/DO, IP Thermometer |
Features

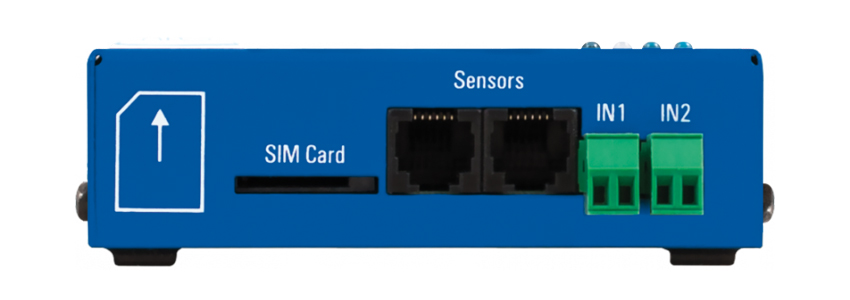

- 14x 1-wire UNI / 1-wire input; 2x digital input with S0 pulse counters; data logger for more than 250,000 data records; digital inputs have 32-bit pulse counters that retain their value even in the event of a power failure.
- 5x e-mail; 5x "SMS + Ring
- Internal battery provides up to 24 hours of emergency power.
- Use the USB interface to configure the unit from a PC without installing additional software. Remote configuration also possible via the "AresConf" tab in the SensDesk portal.
- The FOTA (Remote Firmware Upload) function makes Ares units ideal for large-scale deployments.
- Connected via GSM / GPRS.List of APN available worldwide.
- A sensor value outside a set safety range as well as a change in DI status send a warning via e-mail or "SMS + Ring" or activate a relay (via connected accessory "Relay Output 1-Wire UNI").
- Data can be sent in e-mail attachments or downloaded via USB.
- With the HWg PDMS software, S0 pulses can be converted into costs per period and exported to MS Excel.
- Compatible with a range of third party SWs (SCADA etc.). Examples for programmers to use the product can be found in the HWg SDK (Borland C ++, MS Visual, VB, C #, PHP, JAVA and more).
Technical details
Applications and use

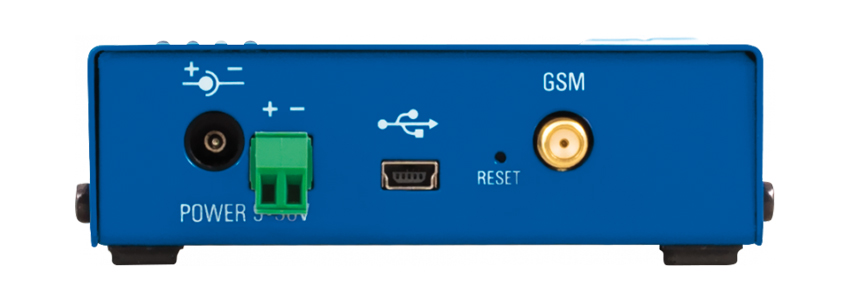

- Power supply: 9-30 VDC / 0.5 A external power supply
- Internal battery: powers the unit + sensors for max. 24 hours (depending on sensors and settings)
- Battery life: 3 to 5 years expected (depending on type, use and operating temperatures)
- GSM / GPRS: Quad-band 850/900 / 1800/1900 MHz - SMA antenna connector
- Roaming: GPRS is disabled when GSM roaming is detected
- Diagnostics: External power detection , battery status [%].
- Alarms: E-mail, HWg push, SMS
- SMS + ring on alarm: Supported
- Protocols: SMTP, NTP, HWg Push (http)
- Operating environment: -5 ° C to 50 ° C / 20% rH - 80% rH
- Storage environment: -25 ° C to 85 ° C / 5% rH - 95% rH
- Dimensions: 98 x 92 x 33 (W x H x D) / 255 g
Applications and use
- GPRS monitoring of machines and their environment
- ATMs - environmental monitoring without tampering with the connection
- Art exhibitions and storage locations
- Storage of food or materials
- Cooling systems and coolers
