HW Group - HTemp-1Wire Rack 19 - 600504
Temperature & humidity sensor for 1-Wire, 2 RJ12 connections. Sensor designed for 19"" rack cabinets
Producentens varenummer:
600889
Vores artikelnummer:
930193
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - HTemp-1Wire Rack 19 - 600504"
Combined temperature (-10°C to +80°C) and humidity sensor for IT environment (1-wire bus).
Fits in a 19" or 10" cabinet (1U size).

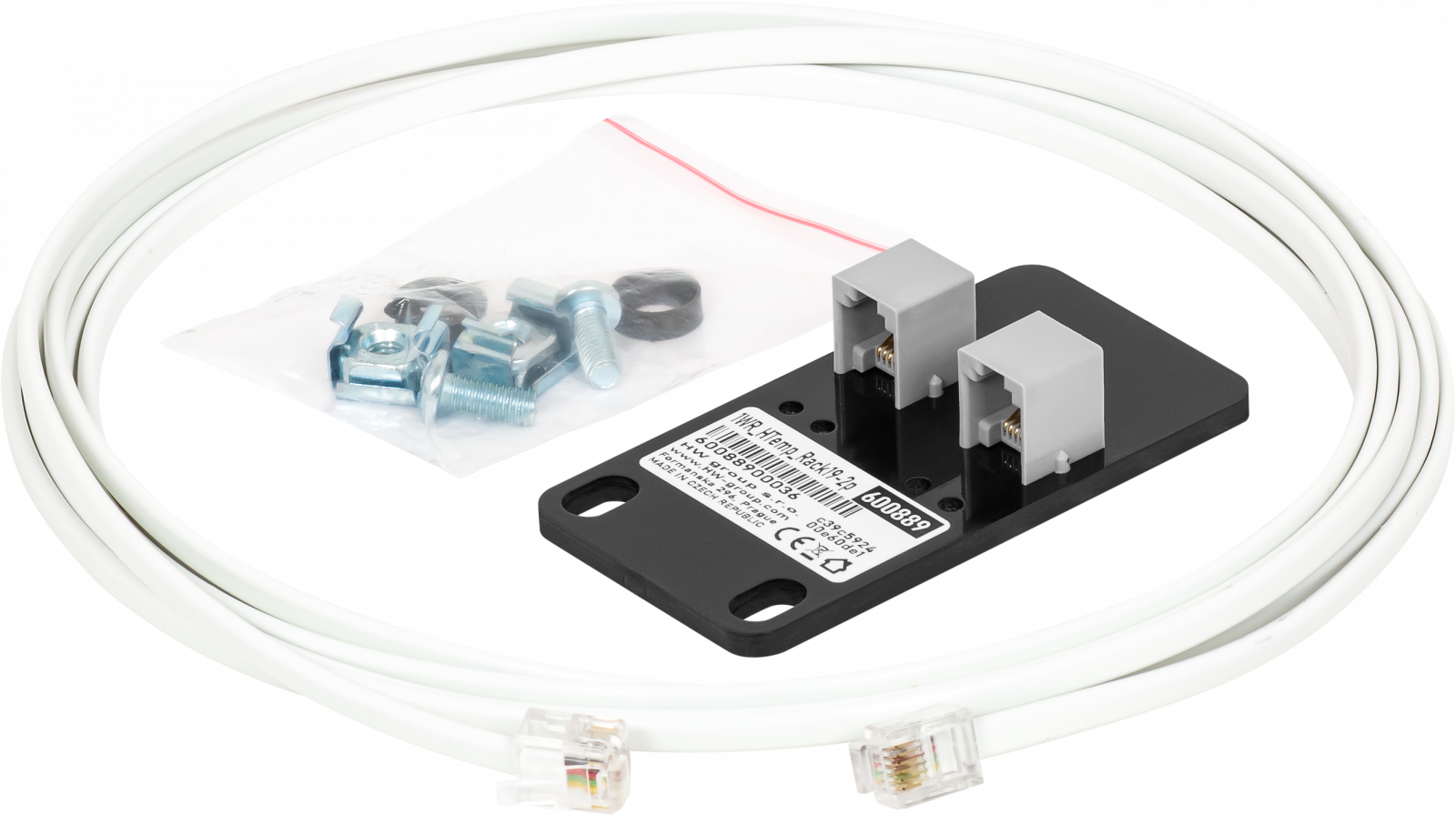

2 RJ11 connectors for daisy-chaining the sensors, RJ11 cable included.
Sensor can be placed in front or back as a 1U unit or mounted on the wall.
Designed for connection to Poseidon, Ares and STE2.
Fits in a 19" or 10" cabinet (1U size).
2 RJ11 connectors for daisy-chaining the sensors, RJ11 cable included.
Sensor can be placed in front or back as a 1U unit or mounted on the wall.
Designed for connection to Poseidon, Ares and STE2.
| Monitoring: | Humidity, Temperature |
|---|
Features
- Combined temperature (-10°C to +80°C) and humidity sensor
- 1U rack mounting, 2x RJ11, daisy-chain capable
- 3m connection cable included
- Temperature and humidity measurement in IT
Technical details
Temperature
Range : -10-80 °C
Accuracy : ±0,8
Resolution : 0,10
Technology : Semiconductor
Humidity (relative)
Range : 0-100 %RH
Accuracy : 5 % RH, 2-80 %RH non-condensing, 25 °C
Repeatability : ±0. 2 % RH
Resolution : 0.30
Technology : Semiconductor
Power supply
RJ-11 (from 1-Wire)
Power supply : 5V
Applications and use
Temperature
Range : -10-80 °C
Accuracy : ±0,8
Resolution : 0,10
Technology : Semiconductor
Humidity (relative)
Range : 0-100 %RH
Accuracy : 5 % RH, 2-80 %RH non-condensing, 25 °C
Repeatability : ±0. 2 % RH
Resolution : 0.30
Technology : Semiconductor
Power supply
RJ-11 (from 1-Wire)
Power supply : 5V
- Operating environment: -10°C to 80°C / 0%RH - 100%RH
- Storage environment: -30°C to 60°C / 5%RH - 95%RH
- Dimensions: 44 x 84 x 19 (WxHxD) / 27g
- Cable length: 3 metres
Applications and use
- Monitoring temperature and humidity in IT cabinets (racks)
- Monitoring of temperature and humidity in server rooms
- Flood and fire detection in hotels or dormitories
- Monitoring of Base Transceiver Station (BTS)
- SensDesk in BTS stations and technology
- SensDesk in data centres and server rooms
