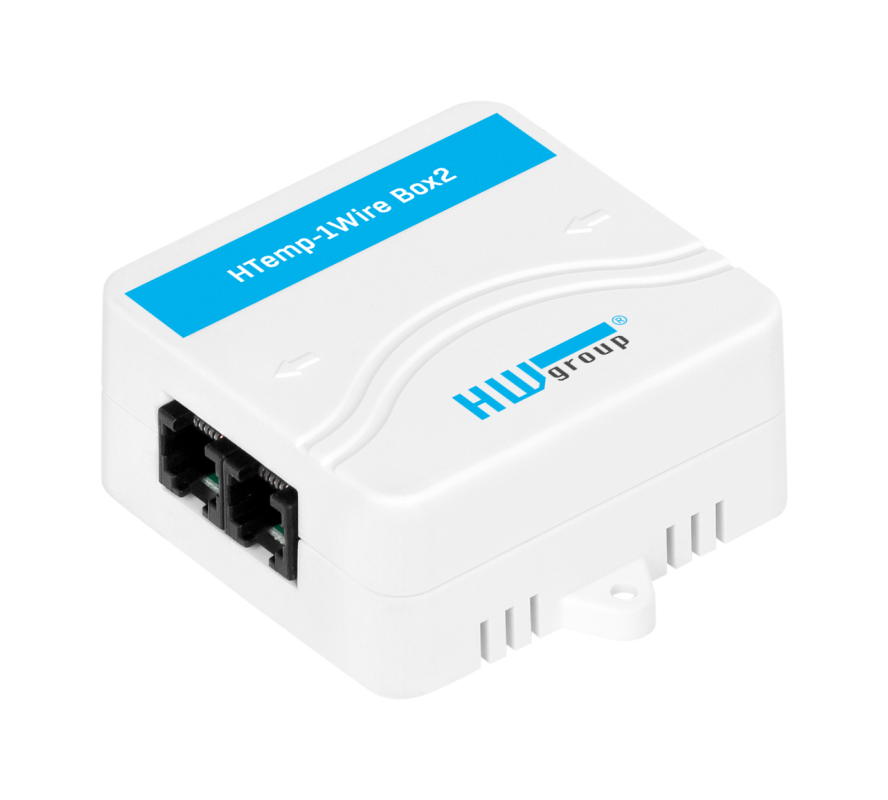

HW Group - HTemp-1Wire-Box2 - 600506
Temperature and humidity sensor for 1-Wire, 2 RJ12 connectors. Boxed sensor designed for internal use
Producentens varenummer:
600506
Vores artikelnummer:
930032
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - HTemp-1Wire-Box2 - 600506"
Wall-mounted temperature (-10°C to +80°C) and humidity sensor for internal use.
Two RJ11 connectors allow the sensors to be daisy-chained and connected to Poseidon, Ares and HWg-STE units.
Two RJ11 connectors allow the sensors to be daisy-chained and connected to Poseidon, Ares and HWg-STE units.
| Monitoring: | Humidity, Temperature |
|---|
Features
- Temperature measurement -10°C to +80°C
- Humidity measurement 0-100% RH
- Sensor can be mounted on the wall
- Sensors can be connected in series (two RJ11 sockets)
- Supplied with a 3 m connection cable
Technical details
Temperature
Range : -10-80 °C
Accuracy : ±0,8
Resolution : 0,10
Technology : Semiconductor
Humidity (relative)
Range : 0-100 %RH
Accuracy : 5 % RH, 2-80 %RH non-condensing, 25 °C
Repeatability : ±0. 2 % RH
Resolution : 0.30
Technology : Semiconductor
Power supply
RJ-11 (from 1-Wire)
Power supply : 5V
Consumption : 1mA
Applications and use
Temperature
Range : -10-80 °C
Accuracy : ±0,8
Resolution : 0,10
Technology : Semiconductor
Humidity (relative)
Range : 0-100 %RH
Accuracy : 5 % RH, 2-80 %RH non-condensing, 25 °C
Repeatability : ±0. 2 % RH
Resolution : 0.30
Technology : Semiconductor
Power supply
RJ-11 (from 1-Wire)
Power supply : 5V
Consumption : 1mA
- Cable length: 3 metres
- Operating environment: -10°C - 80°C / 0%RH - 100%RH
- Storage environment: -30°C - 60°C / 5%RH - 95%RH
- Dimensions: 79 x 71 x 30 (WxHxD) / 60g
- Environment: Industry , SoHo , IT
- Installation: Table , Wall
- Connector: RJ11
Applications and use
- Monitoring temperature and humidity in IT rooms and offices
- Monitoring temperature and humidity in warehouses
- Flood and fire detection in hotels or hostels
- Temperature monitoring in healthcare
- Monitoring of Base Transceiver Station (BTS)
- SensDesk in BTS stations and technology
- SensDesk in data centres and server rooms
- SensDesk in logistics and transport
