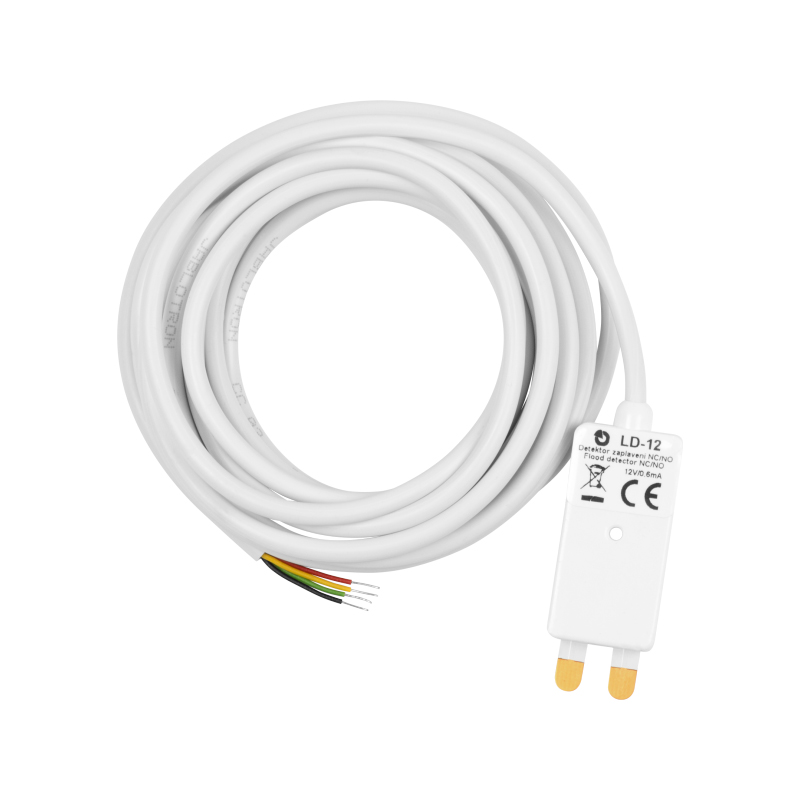

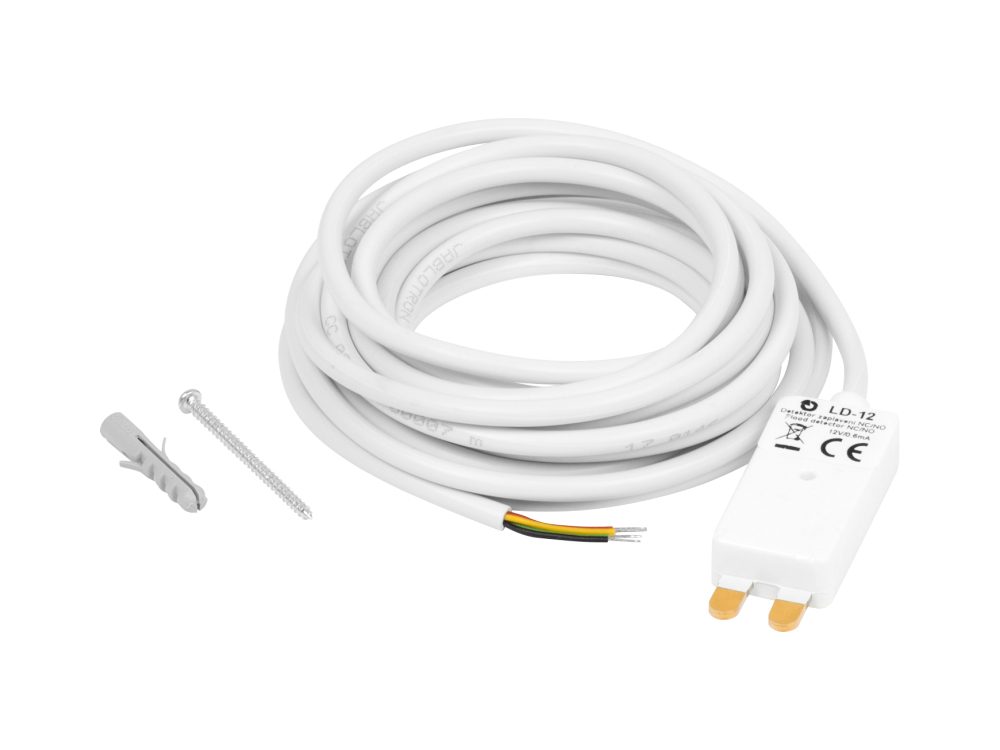

HW Group - Flood detector LD-12 - 600463
The flooding detector is supplied with 12V. The sensor is connected to the dry contact input (DI) of any Poseidon, Damocles or I/O controller.
Producentens varenummer:
600463
Vores artikelnummer:
930029
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktets levetid er udløbet!
Opfølgende produkt:
Produktinformation "HW Group - Flood detector LD-12 - 600463"
The LD-12 flood detector is designed to detect water leaks or to detect an excessively high water level.
The water detector can be connected to a dry contact digital input (Poseidon2, Damocles2, I/O Controller).
12 V power supply, transistor on output.
12 V power supply, transistor on output.
| Monitoring: | Water Leakage |
|---|
Features
- Flood detection
- Water level detection
Technical details
Applications and use
- Indoor use
- Power: 12V DC ± 15%; 2 mA
- Output power: max. 200 mA
- Operating temperature range: -10 to +40 °C
- Reacts to immersion in water
- Compliant with EN50130-4, EN 55022
Applications and use
- Flood detection in industry
- Flood detection in warehouses, production and technical rooms, living spaces
- Connection to a Poseidon unit - measurements in technical rooms and data transmission via Ethernet
- Monitoring of the Base Transceiver Station (BTS)
- Simple contact water detection
- 12V power supply
