HW Group - Ares 12 LTE TSet - 600705
Remote monitoring and alarm 2x DI, max. 14x sensors, interface, TCP, HTTP, SNTP, SMTP, HWg-PUSH, PDMS, TCP, XML, SMS, Email (incl. power supply, temperature sensor 3m, QuadBand GSM antenna 3m, USB cable for configuration)
Producentens varenummer:
600705
Vores artikelnummer:
930173
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - Ares 12 LTE TSet - 600705"
Ares 12 LTE is an industrial system for remote monitoring and alarming via GSM for sites without LAN access. Includes battery backup. Connect up to 14 external sensors and 2 dry contact detectors.
Ares 12 LTE monitors the readings of the connected sensors.
When a value reaches the alarm threshold, the unit sends an email or text message (SMS) or dials specific numbers. Use the free SensDesk portal to view measurement data in a complex dashboard.
Ares 12 LTE includes an internal battery that provides up to 24 hours of emergency power.
Ares 12 LTE products support FOTA (Firmware Over The Air) for remote firmware updates.
Ares 12 LTE monitors the readings of the connected sensors.
When a value reaches the alarm threshold, the unit sends an email or text message (SMS) or dials specific numbers. Use the free SensDesk portal to view measurement data in a complex dashboard.
Ares 12 LTE includes an internal battery that provides up to 24 hours of emergency power.
Ares 12 LTE products support FOTA (Firmware Over The Air) for remote firmware updates.
| Alerts: | Call, E-Mail, SMS, SMTP Get |
|---|---|
| Classification: | Several Small Server Rooms |
| Device: | Monitoring Device |
| Device Classes: | > 8 Sensors, Expandable with DI/DO |
Features
- 14x 1-wire UNI / 1-wire input; 2x digital input with S0 pulse counters; data logger for more than 250,000 data records; digital inputs have 32-bit pulse counters that retain their value even in the event of a power failure.
- 5x e-mail; 5x "SMS + Ring
- Internal battery provides up to 24 hours of emergency power.
- Use the USB interface to configure the unit from a PC without installing additional software. Remote configuration also possible via the "AresConf" tab in the SensDesk portal.
- The FOTA (Remote Firmware Upload) feature makes Ares units ideal for large-scale deployments.
- Connected via LTE and GSM / GPRS.
- A sensor value outside a set safety range as well as a change in DI status send a warning via email or "SMS + Ring" or activate a relay (via connected accessory "Relay Output 1-Wire UNI").
- Data can be sent in e-mail attachments or downloaded via USB.
- Compatible with a range of third-party SWs (SCADA, etc.). Examples for programmers to use the product can be found in the HWg SDK (Borland C ++, MS Visual, VB, C #, PHP, JAVA and more).
Technical details
Applications and use:
- E-mail destinations: 5
- SMS destinations: 5
- 1-wire sensors: 14
- Interface: GPRS / LTE
- Calibration shift: Yes
- Alarm reminder: Yes

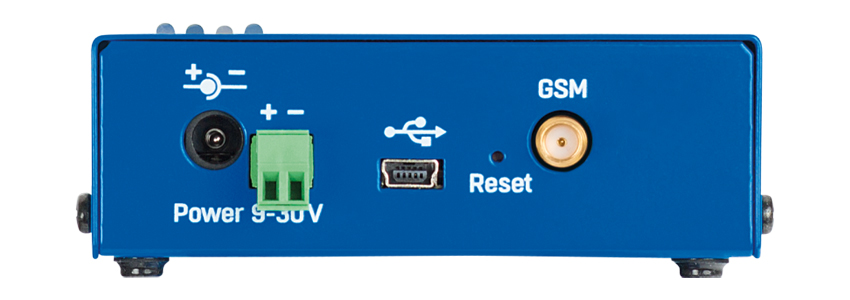

- Power supply: 9-30V
- Consumption: 250mA
- Protocols: SNTP, SMTP, SMTP TLS, XML, HWg push
- Operating environment: -5 ° C to 50 ° C / 20% rH - 80% rH
- Storage environment: -25 ° C to 80 ° C / 5% rH - 95% rH
- Dimensions: 98 x 92 x 33 (W x H x D) / 255 g
Applications and use:
- LTE connection
- GPRS monitoring of machines and their environment
- ATMs - environmental monitoring without tampering with the connection
- Art exhibitions and storage locations
- Storage of food or materials
- Cooling systems and coolers
