HW Group - 30A DC Current probe 1W-UNI - 600677
0 to 30 A DC current probe for the 1-Wire UNI bus. All Poseidon2 and Ares models, Poseidon 4002 and 2250.
Producentens varenummer:
600677
Vores artikelnummer:
930183
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - 30A DC Current probe 1W-UNI - 600677"

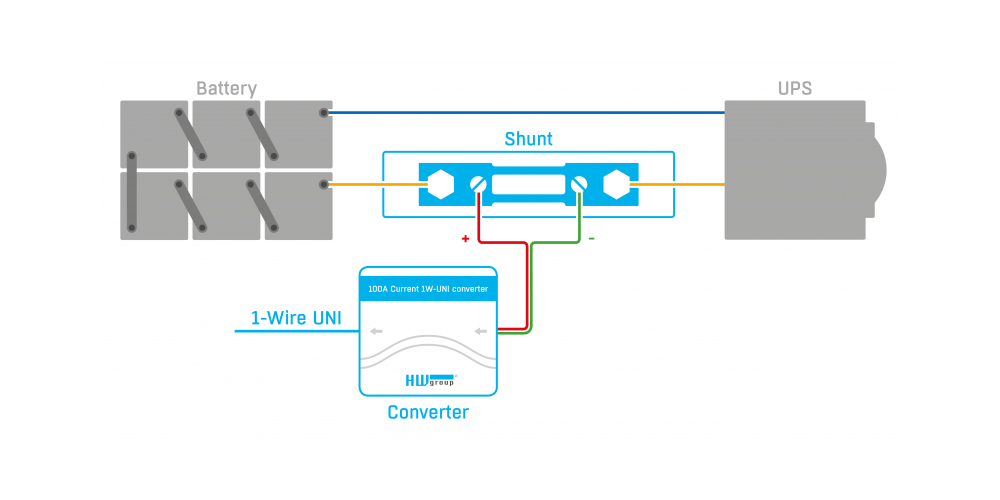

100A (30A) DC current probe 1W-UNI is a set of shunt and converter that can measure DC current up to 100A (30A). The shunt is connected directly (with interruption of the line) into the measured circuit. The direct current is measured in both directions (distinguished by the sign).
The 1W-UNI output can be connected to the Poseidon2 or Ares units. Together with one of these units, the current probe can be used for early warning in case of overload or change of current direction (charge/discharge).
The probe is suitable for monitoring input power in systems powered by 12 V / 24 V or 48 V DC, for battery charging or monitoring energy consumption in telecommunication applications.
The 1W-UNI output can be connected to the Poseidon2 or Ares units. Together with one of these units, the current probe can be used for early warning in case of overload or change of current direction (charge/discharge).
The probe is suitable for monitoring input power in systems powered by 12 V / 24 V or 48 V DC, for battery charging or monitoring energy consumption in telecommunication applications.
| Monitoring: | Power Outages |
|---|
Features
- Current range 0-100A DC; resolution 0.1A; measuring accuracy 2%.
- Shunt resistance / loss at 100A (100A version) 0.6 mOhm/60 mV; at 30A (30A version) 2 mOhm/60 mV
- The 1-wire UNI bus is galvanically isolated from the measuring circuit
- Measured voltage max. 60V
- Cable length between shunt and transducer 1m
- Bus-powered (1-Wire UNI), max. 2 sensors per active port
- 1-Wire UNI (2x RJ11 for daisy-chaining)
- Connection to Poseidon2 or Ares units
- Converter for indoor installation
Technical details
- DC current probe 1W-UNI 30A
- Current range DC 0-30 A DC
- Shunt resistance/voltage drop at max. current 2 mOhm / 60 mV
- Measuring accuracy 2
- Resolution 0.1 A
- Galvanic isolation The 1-Wire UNI bus is galvanically isolated from the measuring circuit.
- Measured voltage Max. 60V
- Cable length between shunt and transducer 1 m
- Power Bus-powered (1-Wire UNI) - max. 2 sensors per active connection
- Interface 2× 1W-UNI for daisy-chaining
- Connection Poseidon2 and Ares units
- Environment Indoor application
