HW Group - 30A Current probe 1W-UNI 2 - 600654
0 to 30A AC split-core current transformer to RJ11. Split-core current transformer for phase wire. 1-Wire UNI (RJ11), Ares and Poseidon2 compatible.
Producentens varenummer:
600654
Vores artikelnummer:
930113
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - 30A Current probe 1W-UNI 2 - 600654"
Sensor for indirect single-phase measurement of alternating current up to 30A without cutting the conductor.
The 30A current probe 1W-UNI 2 is a sensor for indirect single-phase measurement of AC current up to 30A without cutting the conductor.
The split-core current transformer can be opened to insert a lead wire.
The sensor is suitable for monitoring the power consumption of racks, BTS's or server rooms.
The sensor is suitable for the Poseidon and Ares product family.

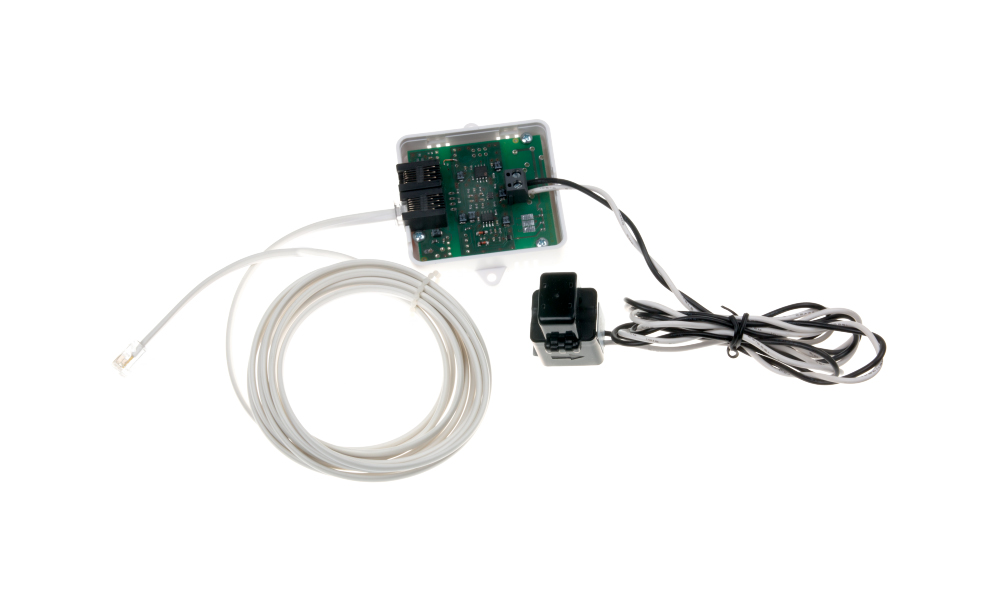

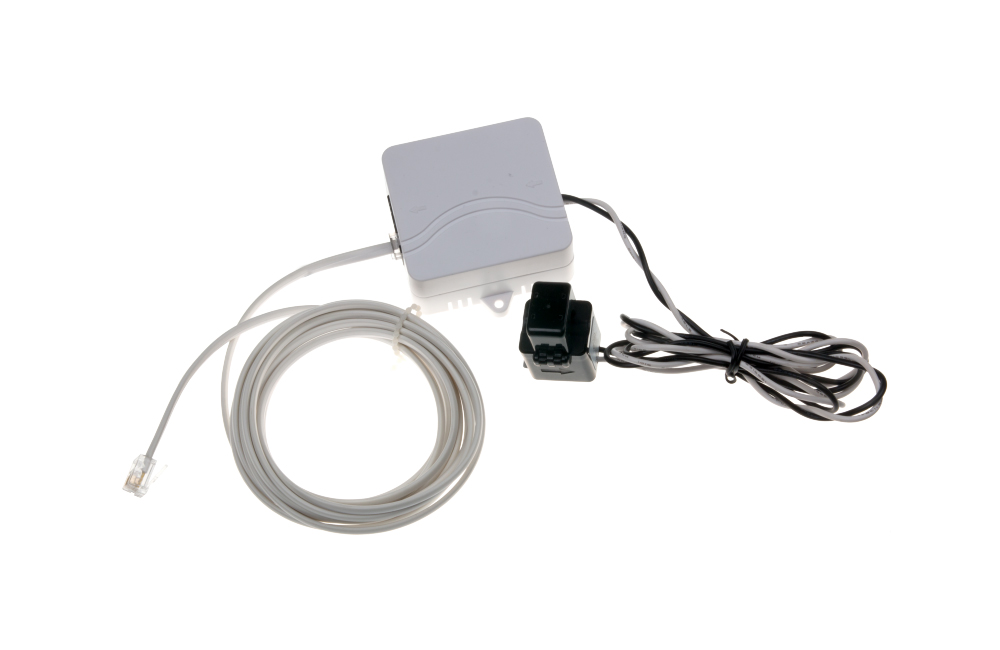

Together with a Poseidon unit, the sensor can serve as an early warning system against an overload of the power network or its individual lines. 30A current probe 1W-UNI 2 consists of a clamp current transformer (CLAMP METER) and a 1-wire converter unit.
The 30A current probe 1W-UNI 2 is a sensor for indirect single-phase measurement of AC current up to 30A without cutting the conductor.
The split-core current transformer can be opened to insert a lead wire.
The sensor is suitable for monitoring the power consumption of racks, BTS's or server rooms.
The sensor is suitable for the Poseidon and Ares product family.
Together with a Poseidon unit, the sensor can serve as an early warning system against an overload of the power network or its individual lines. 30A current probe 1W-UNI 2 consists of a clamp current transformer (CLAMP METER) and a 1-wire converter unit.
| Monitoring: | Power Outages |
|---|
Features
- Current range of the transmitter: 0-30A
- Measuring accuracy: 2%
- Electrical isolation: The 1-Wire UNI bus is galvanically isolated from the measuring circuit.
- Resolution of the A/D converter: 16 bit
- Display resolution: 0.1A
- Measured voltage: max. 400V
- Measurement without cutting the measuring cable
- Operating temperature/humidity: 0°C to 40°C (32°F to 104°F), RH < 80%
- Storage temperature/humidity: -10°C to +50°C (14°F to 122°F), RH < 70%
- Length of supply cable between transformer and inverter: 1 m
Technical details
Applications and use
- Current range of the transmitter: 0-30A
- Measuring accuracy: 2%
- Electrical isolation: The 1-Wire UNI bus is galvanically isolated from the measuring circuit.
- Resolution of the A/D converter: 16 bit
- Display resolution: 0.1A
- Measured voltage: max. 400V
- Measurement without cutting the measuring cable
- Operating temperature/humidity: 0°C to 40°C (32°F to 104°F), RH < 80%
- Storage temperature/humidity: -10°C to +50°C (14°F to 122°F), RH < 70%
- Length of supply cable between transformer and inverter: 1 m
Applications and use

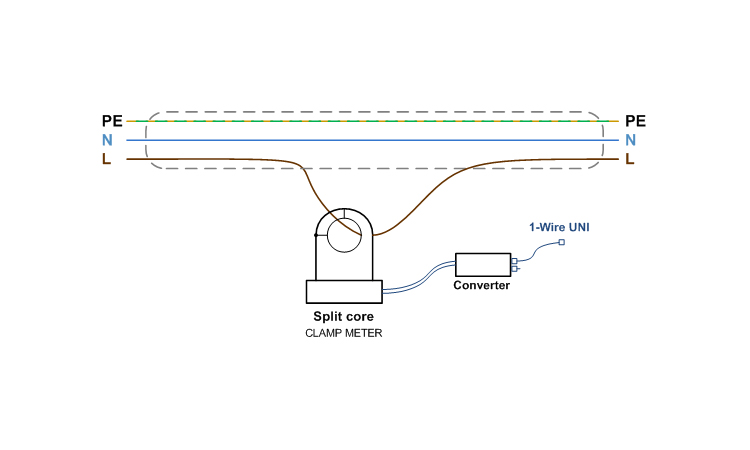

- The current transformer ("CLAMP METER") clamps around the line (L) or neutral (N) conductor that carries the measured current.
- The wire to be measured must be insulated!
- The "CLAMP METER" and the "transformer" must be connected with a double-insulated wire.
