HW Group - 1W-UNI USB calibrator - 600535
USB cable for calibration of 1-Wire UNI sensors. You can edit output scale, calibration points and units.
Producentens varenummer:
600535
Vores artikelnummer:
930132
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - 1W-UNI USB calibrator - 600535"

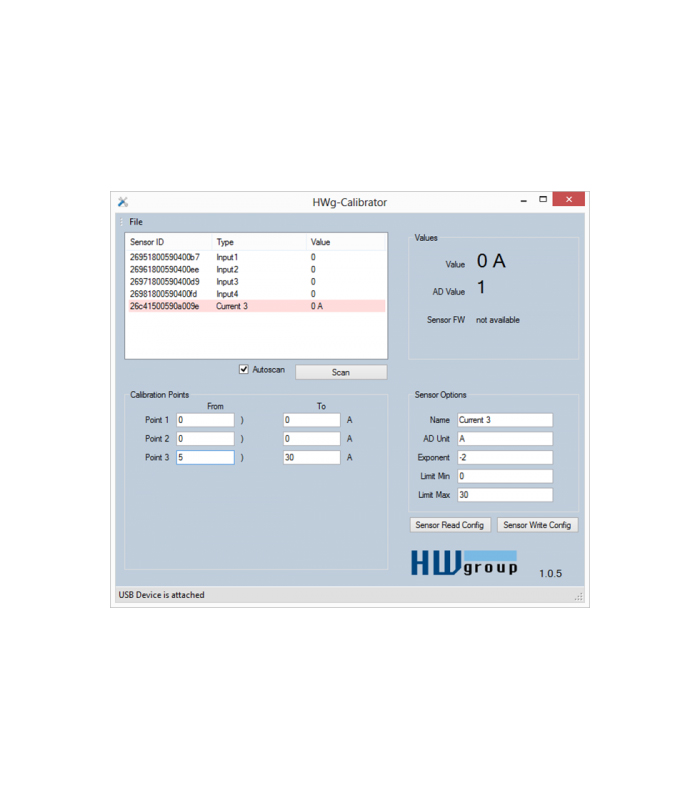

1-Wire UNI sensors allows setting and calibration of the measured values, including an option to change the unit type of the value, an exponent and, based on the sensor type, up to 8-point calibration diagram. This allows connection of various sensors with voltage or current output to Poseidon devices via the 1Wire UNI bus.
Applications and use:
Conversion of values from e.g. electricity meters. Sensor then displays the actual value (pressure, etc.)
Applications and use:
Conversion of values from e.g. electricity meters. Sensor then displays the actual value (pressure, etc.)
Features
- USB Calibrator for 1-Wire UNI Sensors
- Allows implementation of any conversion chart directly into 1-Wire UNI transducers
- Allows the use of 8-point (or 3-point for older sensors) conversion charts
Technical details
- Power supply:5V
- Consumption: 40mA
- Operating environment: -10°C - 80°C / 0%RH - 100%RH
- Storage environment: -30°C - 60°C / 5%RH - 95%RH
- Dimensions: 67 x 16 x 16 (WxHxD) / 8g
- Housing: Plastic
