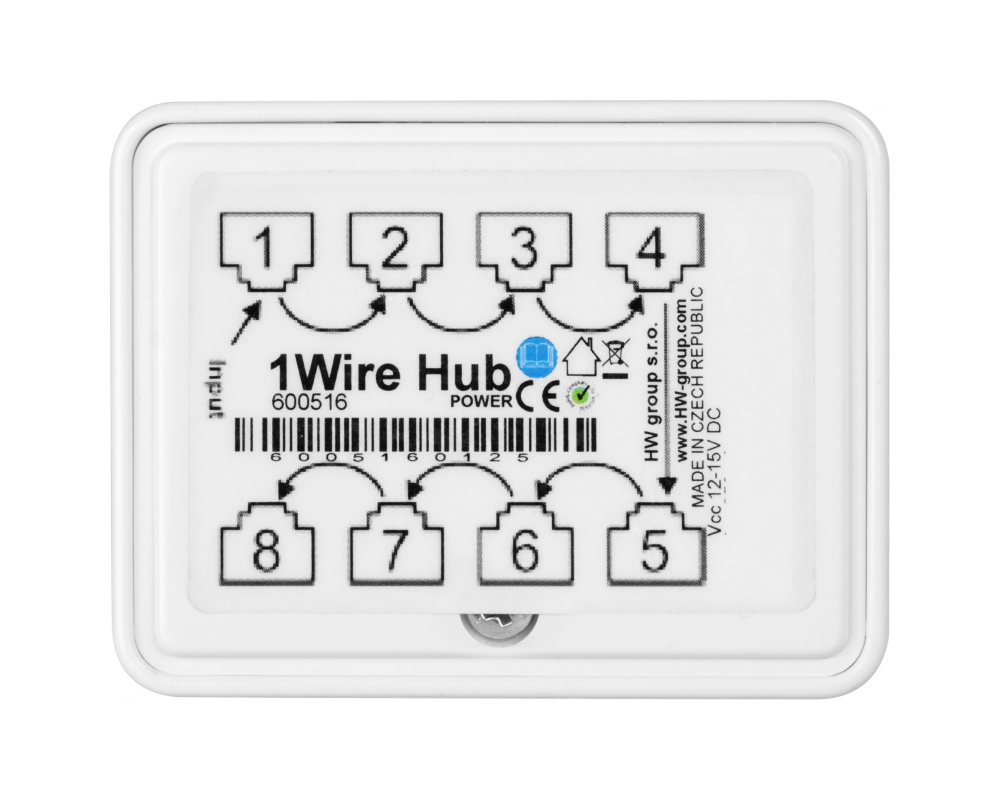

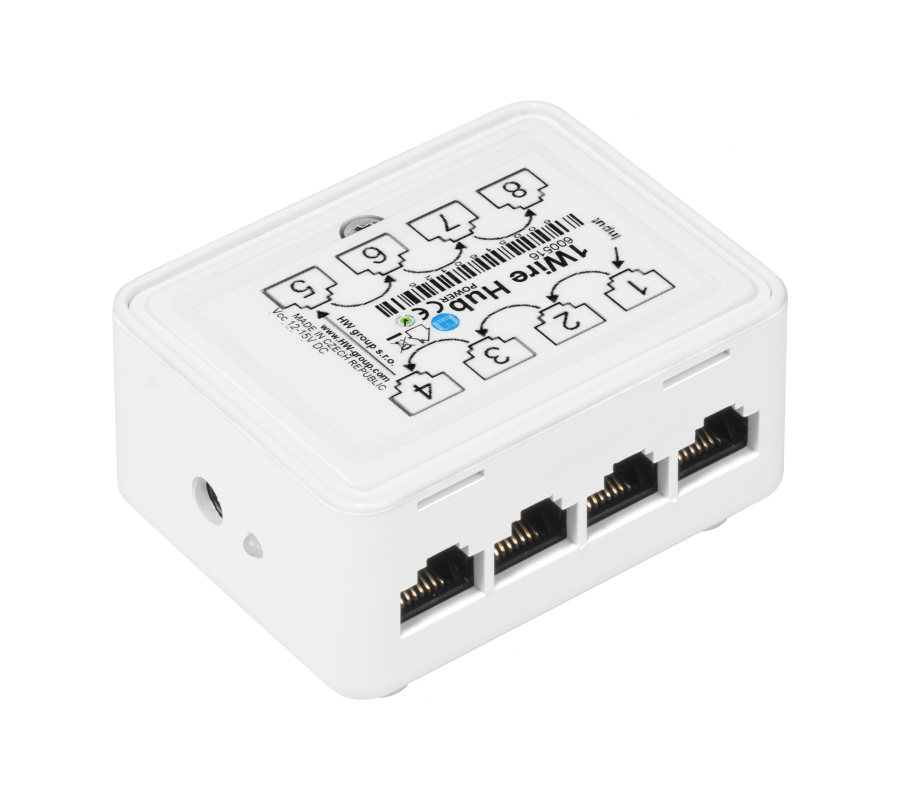

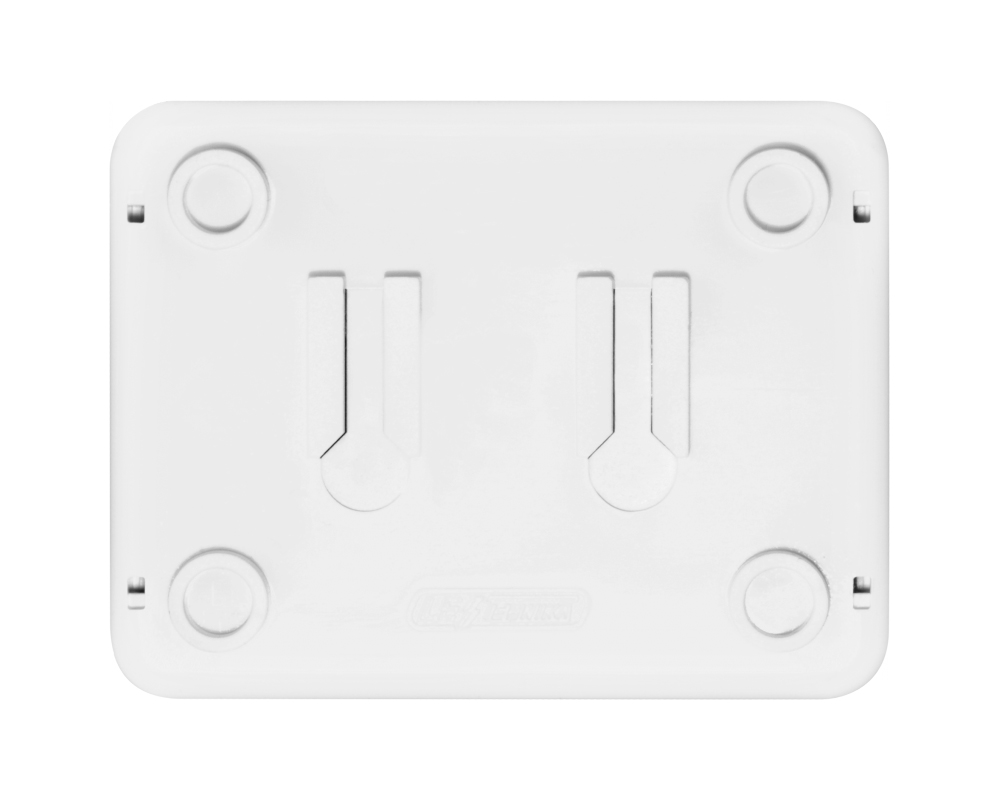

HW Group - 1-Wire hub Power Set - 600607
Power supply 12V and 1-Wire Power Hub package. Splitter hub for 1 to 8 sensors (8x RJ11) with power booster. Suitable for 1-Wire or 1-Wire UNI bus.
Producentens varenummer:
600607
Vores artikelnummer:
930098
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - 1-Wire hub Power Set - 600607"
Power boosted hub for the 1-Wire bus. Compatible with 1-Wire and 1-Wire UNI bus. With the 1-Wire Power hub, several sensors with higher power consumption (such as sensor 60V 1W-UNI or sensor 20mA 1W-UNI) can be connected to a single Poseidon2 or Ares12 device, as sensor 60V 1W-UNI v2, converter 2xPt100 1W-UNI or sensor 4-20mA 1W-UNI).
| Device: | Accessories |
|---|
Features
- Power Hub for connecting sensors to 1-Wire or 1-Wire UNI bus
- 1x 12V input
- 8x 1-Wire bus output
- Suitable for 1-Wire and 1-Wire UNI
Technical details
Applications and use
- Maximum cabling length: 60 meters total length per active port.
- 1-Wire UNI x 1-Wire Bus: UNI is the software extension for sensors other than temperature and humidity sensors.
- Sensor power supply: 5V/50 mA via RJ11 connector
- Sensor consumption: The power supply from the bus is sufficient for all connected sensors
- Communication cable: Telephone cable - 4-wire
- Sampling period: 800 ms to 10 seconds (depending on the number of connected sensors)
- Sensor address: Automatic, each sensor has its unique address
- Unconnected sensor detection: Yes, disconnected sensor responds with the value "-999.9".
- Sensor disconnection alarm: Disconnecting the sensor causes an alarm status if the sensor indicates alarm (value out of safe range).
Applications and use
- Power hub for connecting sensors to 1-Wire or 1-Wire UNI bus
