Gefen - TV Digital To Analog Decoder
Convert up to 5.1-channel audio encoded in Dolby Digital Surround to L/R analog audio
Producentens varenummer:
GTV-DD-2-AA
Vores artikelnummer:
910026
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
-
Beskrivelse Convert up to 5.1-channel audio encoded in Dolby Digital Surround to L/R analog audio — without additional costly equipment… Mere
-
Egenskaber Features Converts S/PDIF or TOSLINK digital audio to L/R analog audio Digital interpolation filter and digital to analog c… Mere
-
Tekniske detaljer Technical Details Inputs: Coaxial and Optical digital audio ports Outputs: Right and Left RCA-type Stereo analog output por… Mere
-
Datablad
Produktinformation "Gefen - TV Digital To Analog Decoder"
Convert up to 5.1-channel audio encoded in Dolby Digital Surround to L/R analog audio — without additional costly equipment. The GefenTV Digital Audio Decoder takes audio encoded in Dolby Digital (at up to 5.1 channels) from your multichannel S/PDIF or TOSLINK digital audio source and converts it to L/R analog audio — without the need for any other external equipment!
With the GefenTV Digital to Analog Decoder you can listen to digital audio sources such as DVD and CD players or digital computer audio on your legacy analog sound system, preserving your current investment.
With the GefenTV Digital to Analog Decoder you can listen to digital audio sources such as DVD and CD players or digital computer audio on your legacy analog sound system, preserving your current investment.
Audio : | Decoder (IP -> Audio) |
---|---|
Option: | Audio |
Features
- Converts S/PDIF or TOSLINK digital audio to L/R analog audio
- Digital interpolation filter and digital to analog converter (DAC)
- Supports up to 6 channels (up to 5.1 Surround) of audio encoded in Dolby Digital
- Auto samples at frequencies of 32, 44.1, 48 KHz
- 24-bit incoming bitstream on left and right channels
- Allows listening to digital audio sources on legacy analog sound systems
Technical Details
Inputs: Coaxial and Optical digital audio ports

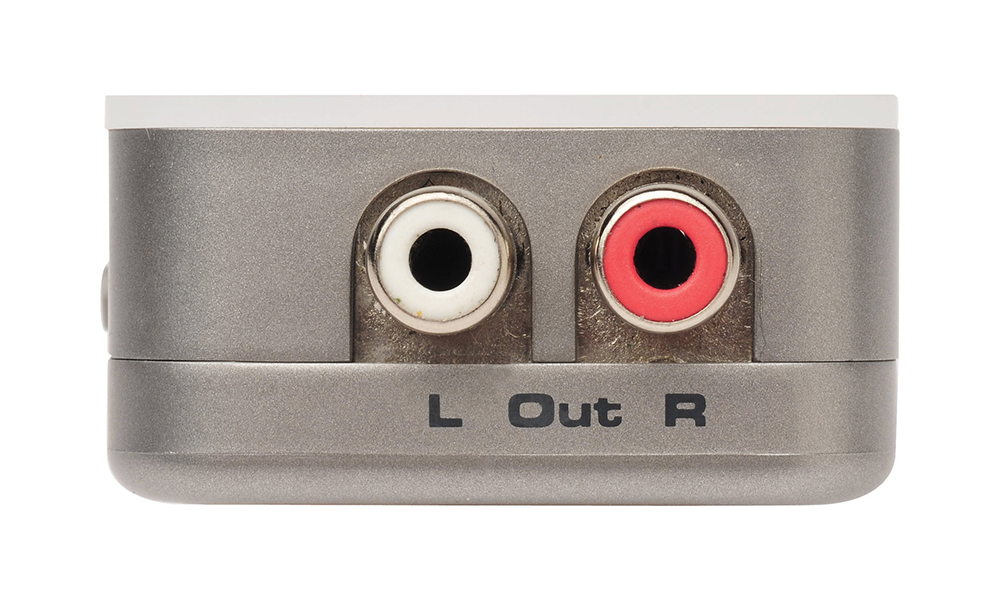

Outputs: Right and Left RCA-type Stereo analog output ports
Output Impedance: 500 Ohms
Output Voltage: 1.8V RMS @ Max Input (0dBFS)
Frequency Response: <+/-0.5dB
Signal to Noise Ratio: >90dB (20Hz - 20kHz A Weighting)
Power Supply/Power Consumption: 5V DC / 5W max.
Operating Temperature: 0°C - 70°C
Dimensions: 1.8" W x 1.8" H x 0.9" D
Shipping Weight: 1 lb.
Inputs: Coaxial and Optical digital audio ports
Outputs: Right and Left RCA-type Stereo analog output ports
Output Impedance: 500 Ohms
Output Voltage: 1.8V RMS @ Max Input (0dBFS)
Frequency Response: <+/-0.5dB
Signal to Noise Ratio: >90dB (20Hz - 20kHz A Weighting)
Power Supply/Power Consumption: 5V DC / 5W max.
Operating Temperature: 0°C - 70°C
Dimensions: 1.8" W x 1.8" H x 0.9" D
Shipping Weight: 1 lb.
