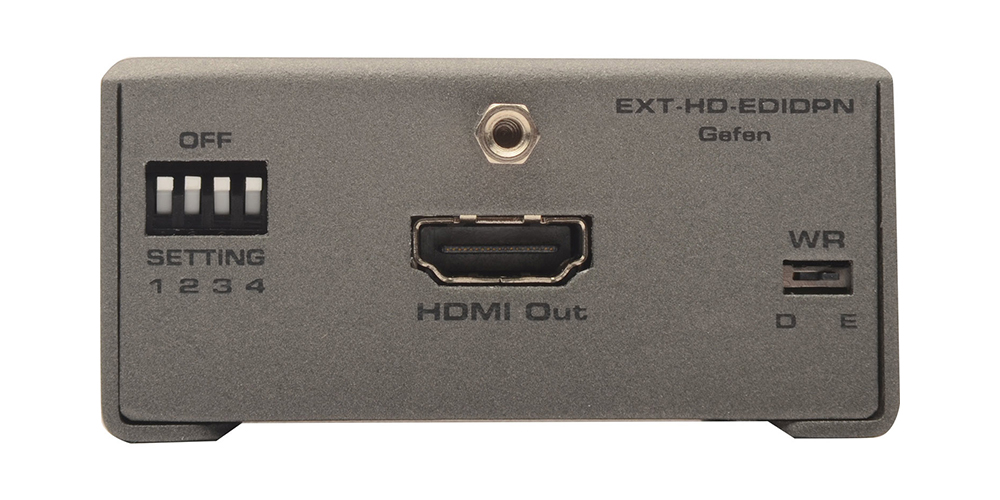

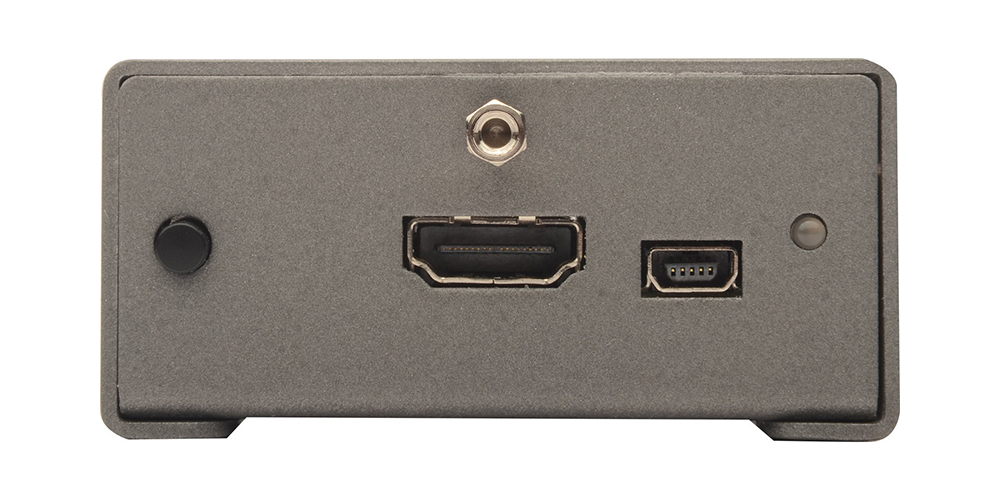

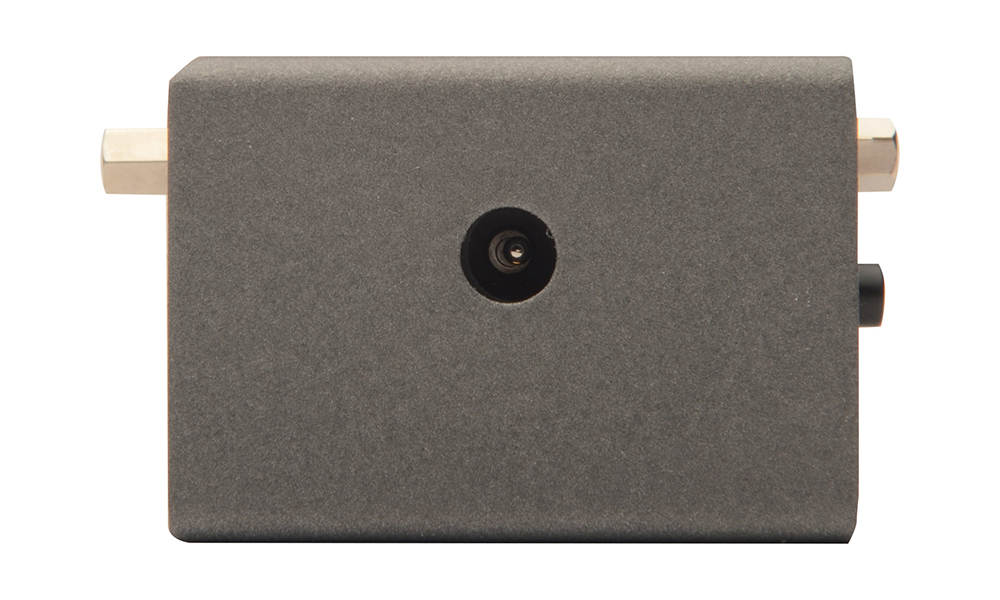

Gefen - HDMI Detective Plus
Use EDID to ensure that a connected Hi-Def source sends compatible audio and video signals
Producentens varenummer:
EXT-HD-EDIDPN
Vores artikelnummer:
910061
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "Gefen - HDMI Detective Plus"
High Definition displays with HDMI inputs use EDID (Extended Display Identification Data) to ensure that a connected Hi-Def source sends compatible audio and video signals. In some scenarios, this data can be lost, resulting in an incorrect signal or complete loss of audio and/or video. The Gefen HDMI EDID Detective Plus has been designed specifically to address this issue by recording the display EDID date and making it available to the Hi-Def source reliably and on a continuous basis. With DDC re-clocking technology, the reliability of HDCP handshaking is improved, ensuring that the Hi-Def source always receives the correct EDID. Using the Gefen Syner-G PC software or terminal emulation via USB, the installer can also manipulate/modify the EDID data to meet installation-specific requirements and resolve system-specific compatibility issues. The HDMI EDID Detective Plus has been designed for quick and easy programming and installation.
| Graphic Port: | HDMI |
|---|
Features
- Supports resolutions up to 1080p Full HD, and 1920 x 1200 (WUXGA)
- HDMI Features Supported:
- HDCP
- 12-bit Deep Color
- LPCM 7.1 audio, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
- 3DTV pass-through
- Lip-Sync pass-through
- CEC pass-through
- USB port for advanced programming of features such as EDID management.
- Configurable EDID using Gefen Syner-G software suite, downloadable from Gefen website.
- DDC Re-clocking
- Records the EDID from a display
- 6 pre-programmed EDID profiles
- 6 user-programmable EDID banks for copying/uploading EDIDs
- Selectable HDCP pass-through
- Field updatable firmware via USB port
- Compact and portable
Technical Details
Maximum Pixel Clock: Up to 225 MHz**
Maximum TMDS Clock: Up to 225 MHz**
Video Input Connector: (1) HDMI Type A 19-pin, female, locking
Video Output Connector: (1) HDMI Type A 19-pin, female, locking
USB port: (1) Mini-B
EDID Memory Size: 256 Bytes
EDID Write Protect Switch: (1) slide-type
EDID Program Button: (1) tact-type
EDID programming switches: (3) DIP-type
HDCP pass-thru/block switch: (1) DIP-type
Power Supply : 5V DC
Power Consumption: 5W (max.)
Dimensions (W x H x D): 2.7" x 1.3" x 1.8" (68mm x 33mm x 46mm)
Shipping Weight: 2 lbs (0.9kg)
** Pass-through. Actual performance depends on cable length and quality.
