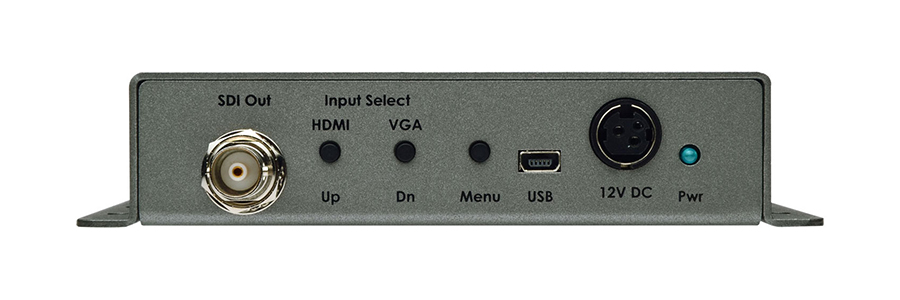

Gefen - HD & VGA to 3GSDI Scaler / Converter
Switch video and audio from an HDMI and a VGA source, scale the picture, and output it to an SDI device
Producentens varenummer:
EXT-HDVGA-3G-SC
Vores artikelnummer:
910082
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "Gefen - HD & VGA to 3GSDI Scaler / Converter"
The Gefen EXT-HDVGA-3G-SC scales and converts video from an HDMI or a VGA source to SDI formats, including 3G-SDI and single link HD-SDI. It can also embed HDMI audio or analog L/R audio into the SDI stream. Video can be scaled up to 1080p Full HD. An intuitive and comprehensive on-screen display (OSD) menu allows easy set-up and control. This product can be configured and updated using the Gefen Syner-G software suite. The Gefen Syner-G is a powerful set of software tools specifically designed to help discover, configure/ customize, manage, monitor, and upgrade Gefen products. Wide power supply operating range of 6V to 24V DC offers installation flexibility for mobile use, in complex studio systems with a common power supply, and with remotely located power sources. A locking power supply connector, small footprint, and a surface-mountable enclosure facilitate easy and secure installation.
| Graphic Port: | HDMI, VGA |
|---|---|
| Power Supply: | 12V DC |
Features
- Converts and scales HDMI and VGA and L/R analog audio to SDI
- Input resolutions up to 1920 x 1200 (WUXGA) and 1080p60
- Output resolutions up to 1080p60
- On-screen display (OSD) menu allows easy set-up and control
- Aspect Ratio Control: Full Screen, Panoramic, Letter/Pillar, Extract/Crop
- Test Pattern Generator for quick system configuration
- Embeds 2-channel analog stereo audio in SDI signal (VGA Input only)
- Up to LPCM 7.1 audio support (HDMI input only)
- Gefen Syner-G simplifies in-field firmware updates and advanced EDID management including custom input timings
- USB port for use with Gefen Syner-G
- Wide power supply operating range (6V to 24V DC)
- Locking power supply connector
- Surface mountable
Technical Details
Maximum Pixel Clock – HDMI and VGA Inputs: 165 MHz
Maximum Pixel Clock – SDI Output: 150 MHz
Maximum TMDS Clock: 225 MHz
Video Input Connectors:
(1) HDMI Type A 19-pin, female, locking
(1) VGA HD-15, female
Audio Input Connector: (1) 3.5mm mini-stereo jack
Video Output Connector: (1) SDI, BNC-type, female
USB Connector: (1) Mini-B
Input Select/Menu/Navigation Switches: (3) tact-type
HDMI Indicator: (1) LED, green
VGA Indicator: (1) LED, green
Power Indicator: (1) LED, blue
Power Supply Connector: (1) 3-pin, locking
Power Supply: 12V DC nominal (6V to 24V DC operating range)
Power Consumption: 5W maximum
Operating Temperature: +32 to +122 °F (0 to +50 °C)
Operating Humidity: 5% to 90% RH, non-condensing
Storage Temperature: -4 to +185 °F (-20 to +85 °C)
Storage Humidity: 0% to 95% RH, non-condensing
MTBF: 50000 hours
Dimensions (excluding connectors, W x H x D): 5.6" x 1.2" x 3.7" (141mm x 30mm x 93mm)
Net Unit Weight: 0.5 lbs. (0.23kg)
Maximum Pixel Clock – HDMI and VGA Inputs: 165 MHz
Maximum Pixel Clock – SDI Output: 150 MHz
Maximum TMDS Clock: 225 MHz
Video Input Connectors:
(1) HDMI Type A 19-pin, female, locking
(1) VGA HD-15, female
Audio Input Connector: (1) 3.5mm mini-stereo jack
Video Output Connector: (1) SDI, BNC-type, female
USB Connector: (1) Mini-B
Input Select/Menu/Navigation Switches: (3) tact-type
HDMI Indicator: (1) LED, green
VGA Indicator: (1) LED, green
Power Indicator: (1) LED, blue
Power Supply Connector: (1) 3-pin, locking
Power Supply: 12V DC nominal (6V to 24V DC operating range)
Power Consumption: 5W maximum
Operating Temperature: +32 to +122 °F (0 to +50 °C)
Operating Humidity: 5% to 90% RH, non-condensing
Storage Temperature: -4 to +185 °F (-20 to +85 °C)
Storage Humidity: 0% to 95% RH, non-condensing
MTBF: 50000 hours
Dimensions (excluding connectors, W x H x D): 5.6" x 1.2" x 3.7" (141mm x 30mm x 93mm)
Net Unit Weight: 0.5 lbs. (0.23kg)
