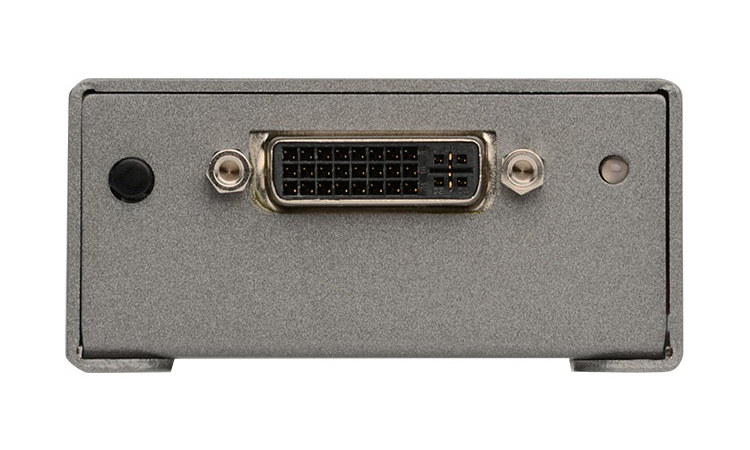

Gefen - DVI Detective N
Save the EDID. Now easier to use with external controls.
Producentens varenummer:
EXT-DVI-EDIDN
Vores artikelnummer:
910003
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "Gefen - DVI Detective N"
The Gefen DVI Detective solves issues related to EDID that prevent signal passing from source to display. DVI (and VGA) Displays use Extended Display Identification Data (EDID) to communicate the video resolutions and timings that they are capable of displaying to the source. In certain situations this data can be lost resulting in incorrect display settings, resulting complete loss of video. The Gefen EXT-DVI-EDIDN solves this problem by ensuring that the correct EDID information is constantly available to the DVI source, even if the display is switched to a different source or disconnected. Gefen has designed the DVI Detective N for quick and easy programming and installation. After a simple EDID recording process is completed, the Detective is placed at the DVI output of the DVI source (such as a computer’s video card) where it provides the video source with EDID information The DVI Detective N is equipped with DVI ports, but it is also compatible with VGA by using DVI to VGA adapter (not included).
| Graphic Port: | DVI |
|---|
Features
- Quick and easy way to store EDID information from any DVI display
- Provides a virtual EDID to maintain active monitor status when switching away from a source
- Supports resolutions up to 1920×1200, 2K, and 3840×2400 (Dual Link)
- EDID write protection switch
- No power is required after initial programming
Technical Details
Maximum Pixel Clock: 2x 165 MHz
Video Input Connector: (1) DVI-I 29-pin, female
Video Output Connector: (1) DVI-I 29-pin, female
Operating temperature range: +5 to +45 deg. Celsius
Power Supply: 5V DC (needed for programming only)
Power Consumption: 5 Watts (max)
Dimensions: 2.6" W x 1.8" D x 1.2" H
Shipping Weight: 1 lb.
Maximum Pixel Clock: 2x 165 MHz
Video Input Connector: (1) DVI-I 29-pin, female
Video Output Connector: (1) DVI-I 29-pin, female
Operating temperature range: +5 to +45 deg. Celsius
Power Supply: 5V DC (needed for programming only)
Power Consumption: 5 Watts (max)
Dimensions: 2.6" W x 1.8" D x 1.2" H
Shipping Weight: 1 lb.
