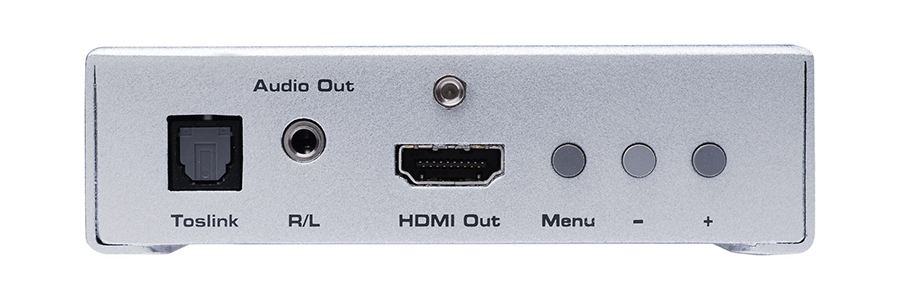

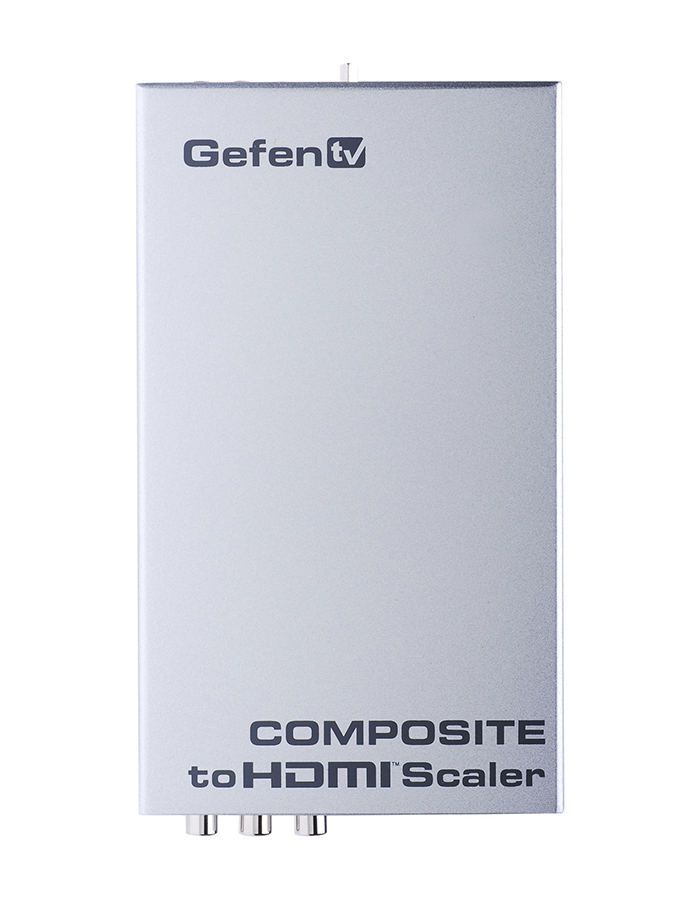

Gefen - Composite to HDMI Scaler
Transform Composite or S-Video into crisp, scaled HDMI video
Producentens varenummer:
GTV-COMPSVID-2-HDMIS
Vores artikelnummer:
910025
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
-
Beskrivelse The GefenTV Composite to HDMI Scaler takes either Composite or S-Video as input and converts it to digital HDMI video, scal… Mere
-
Egenskaber Features Inputs S-Video or Composite Video at 480i or 576i resolutions Outputs HDMI video at resolutions of up to 1080p In… Mere
-
Tekniske detaljer Technical Details Maximum Pixel Clock: 165 MHz Video Amplifier Bandwidth: 10 MHz Input DDC Signal: 5 Volts p-p (TTL) S-Vide… Mere
-
Datablad
Produktinformation "Gefen - Composite to HDMI Scaler"
The GefenTV Composite to HDMI Scaler takes either Composite or S-Video as input and converts it to digital HDMI video, scaling it up to a maximum output of 1080p resolution (or 1920×1200 when used with a computer monitor).
Graphic Port: | HDMI |
---|---|
Option: | Audio |
Features
- Inputs S-Video or Composite Video at 480i or 576i resolutions
- Outputs HDMI video at resolutions of up to 1080p
- Input resolution is automatically detected while the output resolution and refresh rate can be selected via the on-screen display (OSD) menu system and front panel push-buttons
- 48MB frame buffer for frame rate conversion
- Scales Composite Video and S-Video to HDMI with embedded audio
- Supports video output resolutions for computer equipment at up to 1920×1200
Technical Details
Maximum Pixel Clock: 165 MHz
Video Amplifier Bandwidth: 10 MHz
Input DDC Signal: 5 Volts p-p (TTL)
S-Video Connector: Mini-DIN
Composite Connector: RCA Jack
Power Consumption: 10 Watts (max)
Power Supply: 5V 2.6A DC, non-locking plug (2.1mm pin, 5.5mm barrel)
Dimensions: (W X H X D): 4.1″ x 1.2″ x 7″ (104.2mm x 30mm x 178mm)
Maximum Pixel Clock: 165 MHz
Video Amplifier Bandwidth: 10 MHz
Input DDC Signal: 5 Volts p-p (TTL)
S-Video Connector: Mini-DIN
Composite Connector: RCA Jack
Power Consumption: 10 Watts (max)
Power Supply: 5V 2.6A DC, non-locking plug (2.1mm pin, 5.5mm barrel)
Dimensions: (W X H X D): 4.1″ x 1.2″ x 7″ (104.2mm x 30mm x 178mm)
