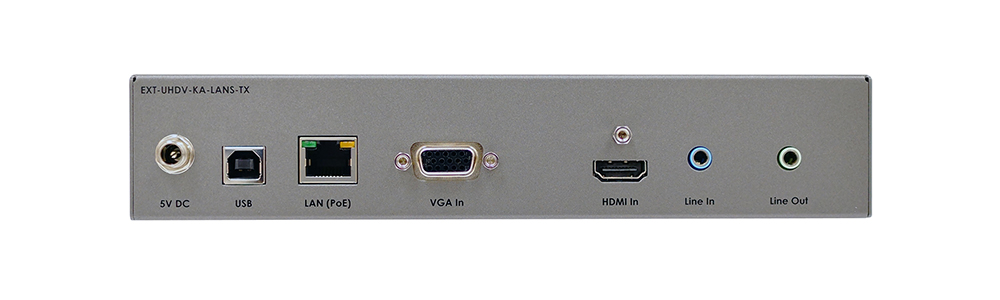

Gefen - 4K Ultra HD HDMI and VGA KVM over IP - Sender unit
Extend and Distribute 4K HDMI, VGA, USB, RS-232, IR, and 2-way audio over a Local Area Network
Producentens varenummer:
EXT-UHDV-KA-LANS-TX
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "Gefen - 4K Ultra HD HDMI and VGA KVM over IP - Sender unit"
Gefen’s Video over IP solutions continue our tradition of providing high performance, scalable, expandable, and secure AV routing and distribution over a standard Gigabit Local Area Network. The Gefen 4K Ultra HD and VGA KVM over IP extends HDMI, VGA, USB, 2-way audio, RS-232, and IR. The Sender features a 1U tall and half-rack-width enclosure, perfect for rack mounting using the Gefen EXT-RACK-1U-GRY rack tray (available separately). It can also be surface mounted or be placed on a shelf. The Receiver is also rack mountable using the rack tray, can be surface-mounted, or can be placed on a shelf. When used with the included IR Extender module, this low-profile unit can be hidden away behind a display or in the equipment closet.
| Connection: | 10 / 100 / 1000-TX (RJ45), Serial Ports RS232, RS422/485, USB Port |
|---|---|
| Graphic Port: | HDMI, VGA |
| Temperature Range: | 0°C to 50°C |
Features
- Extends HDMI, VGA, USB, RS-232, bi-directional stereo analog audio, and IR over IP, using a Gigabit Local Area Network
- Supports input resolutions up to 4K 60Hz 4:2:0 on HDMI and up to 1920×1200, 60 Hz on VGA (WUXGA).
- Supports output resolutions up to 4K 30Hz 4:4:4 on HDMI and up to 1920×1200 60 Hz or 1080p Full HD on VGA
- Supported HDMI Features:
- HDR
- HDCP 2.2 and 1.4
- Deep Color
- Lip-Sync pass-through
- Supports uncompressed LPCM digital audio up to 7.1 channels
- Supports up to 7.1 channels of HBR (High Bit Rate) digital audio including Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™
- When used with Gefen DVI-to-HDMI cables (not included), supports the use of DVI sources and DVI displays up to 1080p Full HD and 1920×1200 (WUXGA)
- Built-in video wall controller accommodates any number of rows and columns up to 16×16
- Quick mass-firmware-update, automated configuration, and enhanced control capabilities and system security when used with the Gefen EXT-CU-LAN Matrix Controller
- Built-in web interface, Telnet, and UDP
- Compatible with the Gefen Keyboard Switching Controller software, available for download at www.gefen.com
- Supports 39,900 Senders and a combination of just over 65,000 Sender and Receiver units, depending on the network bandwidth and number of ports on your network switch
- Two USB 2.0 ports with data rates up to 480 Mbps and backward-compatibility with USB 1.1
- Two USB 1.1 ports for use with Human Interface Devices (H.I.D.)
- PoE (Power over Ethernet) allows the new Sender and Receiver units to be powered through a standard PoE-enabled IP network switch, without the need for external power supplies
- Three-port Gigabit Ethernet switch built into the Receiver unit
- Mode switch on Sender for sharpness or motion optimization of image
- Field-updatable firmware via EXT-CU-LAN controller or the built-in web server interface
- Locking power supply connectors
- Half-rack width Sender and Receiver enclosures are rack-mountable using EXT-RACK-1U-GRY
- Sender and Receiver can also be surface-mounted using the included L-brackets
- Low profile Receiver enclosure features an IR Extender port and can be hidden away behind the display
Technical Details
Video Input connector (Sender): (1) HDMI Type A 19-pin, female, locking; (1) HDMI VGA HD-15, female
Video Output connector (Sender): (1) HDMI VGA HD-15, female
Video Output connector (Receiver): (1) HDMI Type A 19-pin, female, locking; (1) HDMI VGA HD-15, female
Line Input (Sender): (1) 3.5mm mini-stereo jack
Line Output (Sender): (1) 3.5mm mini-stereo jack
Line Input (Receiver): (1) 3.5mm mini-stereo jack
Line Output (Receiver): (1) 3.5mm mini-stereo jack
Optical Digital Audio Output (Receiver): (1) TOSLINK®
USB Host Interface port (Sender): (1) USB Type B, female
USB Device ports (Receiver): (2) USB 2.0 Type A, female; (2) USB 1.1 Type A, female
RS-232 port (Sender): (1) DB-9, female
RS-232 port (Receiver): (1) DB-9, male
IR Sensor (Receiver): (1) Located on front panel
IR In/Ext (Sender/Receiver): (1) 3.5mm mini-stereo jack
IR Out (Sender/Receiver): (1) 3.5mm mini-mono jack
IR Extender type: EXT-RMT-EXTIRN
Ethernet port (Sender): (1) RJ-45, shielded, PoE
Ethernet ports (Receiver): (3) RJ-45, shielded, 1 with PoE
Channel Up/USB-Request button (Receiver): (1) tact-type
Channel Down button (Receiver): (1) tact-type
HDMI/VGA Selector button (Receiver): (1) tact-type
Mode button (Sender): (1) tact-type, recessed
Reset button (Sender/Receiver): (1) tact-type, recessed
Program button (Sender/Receiver): (1) tact-type, recessed
Program Select switch (Sender/Receiver): (1) slide-type, recessed
Link Indicator (Sender/Receiver): (1) LED, green
Power Indicator (Sender/Receiver): (1) LED, blue
Power Supply jack (Sender/Receiver): 5V DC, 2.5mm pin and 5.5mm barrel, locking
Power Requirement (Sender/Receiver): 5V DC, or PoE
Power Consumption:
Sender: 8W
Receiver: 19W
Operating Temperature (Sender/Receiver): +32 to +122°F (0 to +50°C)
Operating Humidity (Sender/Receiver): 5% to 90% RH, non-condensing
Storage Temperature (Sender/Receiver): -4 to +185°F (-20 to +85°C)
Storage Humidity (Sender/Receiver): 0% to 95% RH, non-condensing
MTBF:
Sender: 50000 hours
Receiver: 50000 hours
Dimensions (W x H x D, without connectors or feet):
Sender: 8.4″ x 1.7″ x 4.3″ (214mm x 43mm x 108mm)
Receiver: 8.4″ x 1.0″ x 4.3″ (214mm x 25mm x 108mm)
Unit Weight:
Sender: 1.7 lbs. (0.8 kg)
Receiver: 1.5 lbs. (0.7 kg)
Shipping Weight:
Sender:2.7 lbs. (1.3 kg)
Receiver: 3.0 lbs. (1.4 kg)
