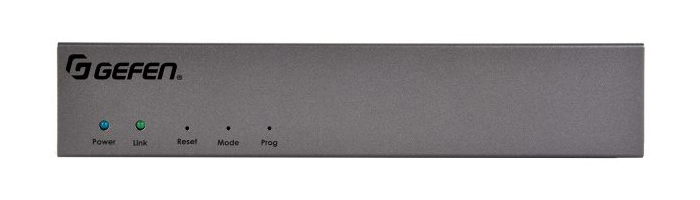

Gefen - 4K Ultra HD HDMI KVM over IP - Sender Package
Extend and Distribute 4K HDMI w/ HDR, USB, RS-232, IR, and 2-way audio over a Local Area Network
Producentens varenummer:
EXT-UHDKA-LANS-TX
Vores artikelnummer:
910173
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "Gefen - 4K Ultra HD HDMI KVM over IP - Sender Package"
Gefen’s AV over IP solutions continue our tradition of providing high performance, scalable, expandable, and secure AV routing and distribution over a standard Gigabit Local Area Network. Our Gen 2.0 KVM products offer enhanced performance, features, and functionality such as 4K Ultra HD with HDR support, built-in scalers, video-wall control, independent USB, RS-232, IR, and audio routing, and backward-compatibility with our first generation products. Each Sender and Receiver extends and routes video, USB, 2-way audio, RS-232, and IR.
The EXT-UHDKA-LANS-TX & RX feature maximum input resolution of 4K 60 Hz 4:2:0, and maximum output resolution of 4K 30 Hz 4:4:4. HDCP 2.2 and 1.4 are also supported. 7.1 channels of HBR (High Bit Rate) lossless and LPCM digital audio can pass through the system as well.
The Sender unit features a video output for local monitoring of the source. USB, RS-232 2-way IR, and audio can be routed independently** between any Sender and Receiver unit, allowing end-users to control any of the sources and the displays within their network. With this greatly expanded array of new cutting-edge features and performance, the new Gefen AV over IP products full(more…)
The EXT-UHDKA-LANS-TX & RX feature maximum input resolution of 4K 60 Hz 4:2:0, and maximum output resolution of 4K 30 Hz 4:4:4. HDCP 2.2 and 1.4 are also supported. 7.1 channels of HBR (High Bit Rate) lossless and LPCM digital audio can pass through the system as well.
The Sender unit features a video output for local monitoring of the source. USB, RS-232 2-way IR, and audio can be routed independently** between any Sender and Receiver unit, allowing end-users to control any of the sources and the displays within their network. With this greatly expanded array of new cutting-edge features and performance, the new Gefen AV over IP products full(more…)
| Connection: | 10 / 100 / 1000-TX (RJ45), Serial Ports RS232, RS422/485, USB Port, over IP |
|---|---|
| Graphic Port: | HDMI |
| Temperature Range: | 0°C to 50°C |
Features
- Extends HDMI, USB, RS-232, 2-way analog audio, and IR, using a Gigabit Local Area Network
- Independent video, USB, RS-232, IR, and audio routing
- Backward-compatible with first generation Gefen AV over IP products
- Supports input resolutions up to 4K 60Hz 4:2:0
- Supports output resolutions up to 4K 30Hz 4:4:4
- Supported HDMI Features:
- HDR
- HDCP 2.2 and 1.4
- Deep Color
- Lip-Sync
- Uncompressed LPCM digital audio up to 7.1 channels
- Up to 7.1 channels of HBR (High Bit Rate) digital audio including Dolby Atmos®, Dolby® TrueHD, DTS:X, and DTS-HD Master Audio
- When used with Gefen DVI-to-HDMI cables (not included), supports the use of DVI sources and DVI displays up to 1080p Full HD and 1920×1200 (WUXGA)
- Video output on Sender unit for local monitoring of the source
- KM Emulation feature facilitates real-time, simultaneous Keyboard and Mouse control of each source from all connected workstations
- Integrated scaler ensures maximum compatibility and best possible viewing experience with different contents and displays
- Built-in video wall controller accommodates any number of rows and columns up to 16×16
- Built-in (more…)
Technical Details

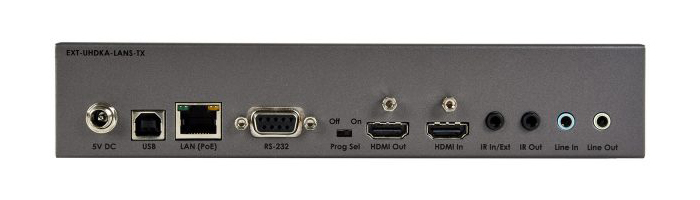

Video Input connector (Sender): (1) HDMI Type A 19-pin, female, locking
Video Output connector (Sender): (1) HDMI Type A 19-pin, female, locking
Video Output connector (Receiver): (1) HDMI Type A 19-pin, female, locking
Line Input (Sender): (1) 3.5mm mini-stereo jack
Line Output (Sender): (1) 3.5mm mini-stereo jack
Mic Input (Receiver): (1) 3.5mm mini-stereo jack
Headphones/Line Output (Receiver): (1) 3.5mm mini-stereo jack
Optical Digital Audio Output (Receiver): (1) TOSLINK ®
USB Host Interface port (Sender): (1) USB Type B, female
USB Device ports (Receiver): (2) USB 2.0 Type A, female; (2) USB 1.1 Type A, female
RS-232 port (Sender): (1) DB-9, female
RS-232 port (Receiver): (1) DB-9, male
IR Sensor (Receiver): (1) Located on front panel
IR In/Ext (Sender/Receiver): (1) 3.5mm mini-stereo jack
IR Out (Sender/Receiver): (1) 3.5mm mini-mono jack
IR Extender type: EXT-RMT-EXTIRN
Ethernet port (Sender): (1) RJ-45, shielded, PoE
Ethernet ports (Receiver): (2) RJ-45, shielded, one with PoE
Channel Up/USB-Request button (Receiver): (1) tact-type
Channel Down button (Receiver): (1) tact-type
Mode button (Sender): (1) tact-type, recessed (more…)
Video Input connector (Sender): (1) HDMI Type A 19-pin, female, locking
Video Output connector (Sender): (1) HDMI Type A 19-pin, female, locking
Video Output connector (Receiver): (1) HDMI Type A 19-pin, female, locking
Line Input (Sender): (1) 3.5mm mini-stereo jack
Line Output (Sender): (1) 3.5mm mini-stereo jack
Mic Input (Receiver): (1) 3.5mm mini-stereo jack
Headphones/Line Output (Receiver): (1) 3.5mm mini-stereo jack
Optical Digital Audio Output (Receiver): (1) TOSLINK ®
USB Host Interface port (Sender): (1) USB Type B, female
USB Device ports (Receiver): (2) USB 2.0 Type A, female; (2) USB 1.1 Type A, female
RS-232 port (Sender): (1) DB-9, female
RS-232 port (Receiver): (1) DB-9, male
IR Sensor (Receiver): (1) Located on front panel
IR In/Ext (Sender/Receiver): (1) 3.5mm mini-stereo jack
IR Out (Sender/Receiver): (1) 3.5mm mini-mono jack
IR Extender type: EXT-RMT-EXTIRN
Ethernet port (Sender): (1) RJ-45, shielded, PoE
Ethernet ports (Receiver): (2) RJ-45, shielded, one with PoE
Channel Up/USB-Request button (Receiver): (1) tact-type
Channel Down button (Receiver): (1) tact-type
Mode button (Sender): (1) tact-type, recessed (more…)
