Gefen - 2-way Audio Extender over one CAT-5
Extends Mic and Headphones to/from computer and workstation
Producentens varenummer:
EXT-AUD-1000
Vores artikelnummer:
910049
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "Gefen - 2-way Audio Extender over one CAT-5"

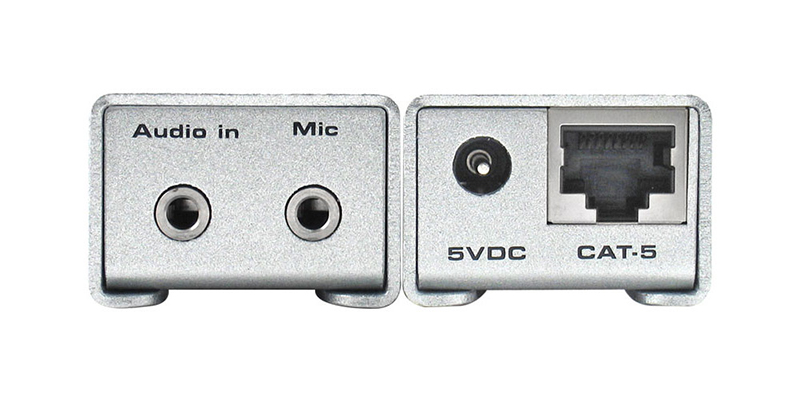

The Gefen EXT-AUD-1000 Audio Extender is capable of extending microphone and stereo analog audio up to 1000 feet. The sender unit sits next to your audio source. Stereo cables supplied with the Audio Extender package connects your audio source to the sender. The receiver unit connects to your speakers or audio output device. One CAT-5 cable connects the sender and the receiver.
Audio Support
The EXT-AUD-1000 supports stereo analog audio.
Audio Support
The EXT-AUD-1000 supports stereo analog audio.
| Connection: | 10 / 100 / 1000-TX (RJ45) |
|---|---|
| Usage / Type: | Audio |
Features
- Extends any unbalanced analog audio device up to 1000 feet (300 meters) from the source
- One CAT-5e cable used for extension
- Bidirectional transmission for speaker and mic
Technical Details
Frequency Response: 20Hz – 20kHz
Input impedance: 1K Ohm
Output impedance: 0.1 Ohm
Audio Connectors: Mini-phone Stereo 3.5mm
Link Connector: RJ-45 Shielded
Power Supply: 5V DC
Power Consumption: 5W (max)
Dimensions: 1.3″ W x 0.8″ H x 3.7″ D
Shipping Weight: 1.05 lbs.
Frequency Response: 20Hz – 20kHz
Input impedance: 1K Ohm
Output impedance: 0.1 Ohm
Audio Connectors: Mini-phone Stereo 3.5mm
Link Connector: RJ-45 Shielded
Power Supply: 5V DC
Power Consumption: 5W (max)
Dimensions: 1.3″ W x 0.8″ H x 3.7″ D
Shipping Weight: 1.05 lbs.
