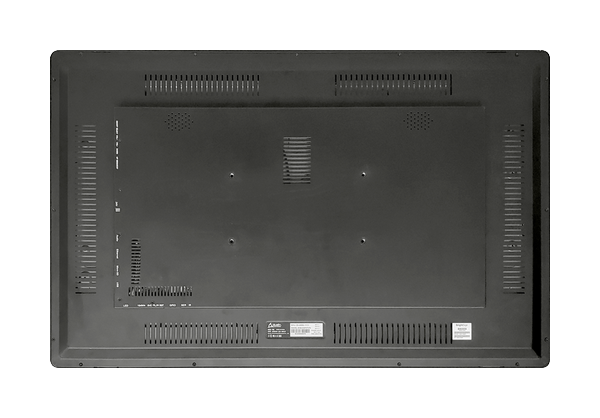

Bluefin - 27.0’’ Flex-OS Screen
Operating Systems Built In
Get your screen with your choice of system-on-chip built inside! Choose from options including:
BrightSign HS145
Intel Ocean (Windows, Linux x64, Chrome-OS Flex)
Rockchip (Android)
Our Most Flexible Display
Flex-OS Screens feature included HDMI connectivity, with no built in player required! If you do select a built in player, you can still plug in an external device and the screen will automatically change inputs. Upgrade, replace, or quickly swap between players without hanging a new screen!
PACKAGE CONTENTS: 27.0’’ Flex-OS Screen
Features
- Finished housing
- 1920x1080 Resolution
- 300nit Brightness
- Touch screen, optional Wi-Fi
- Built in SoC Options. Included HDMI connectivity
Specifications
DISPLAY
- 27.0'' LCD Screen
- Resolution: 1920x1080
- Max Brightness: 300 nits
- Viewing Angle: 89/89/89/89
- Contrast: 1000CR
- Capacitive Touch
SYSTEM
Included HDMI™ connectivity
mini-USB touch screen override
Optional Embedded Players:
- BrightSign HS145
- Bluefin Intel Ocean
- Rockchip RK3399
POWER
- Adapter Style: Micro Molex
- Adapter Output: 12V 4A
- Adapter SKU: 20-0150-0642
INPUT / OUTPUT
- HDMI™-In
- mini-USB touch screen control
- 1x Micro-SD
- 1x USB 2.0
- Phoenix GPIO (4-pin Bi-Directional)
- 3.5mm RS232 Serial
- RJ45 Ethernet
- 3.5mm Analog/Digital Audio Out
- Optional Wi-Fi
HOUSING / MOUNTING
Finished
- Size: 25.4 x 15.2 x 2.1’’
- Weight: 12.3kg
- Mounting: VESA 100x100mm M4x12mm
