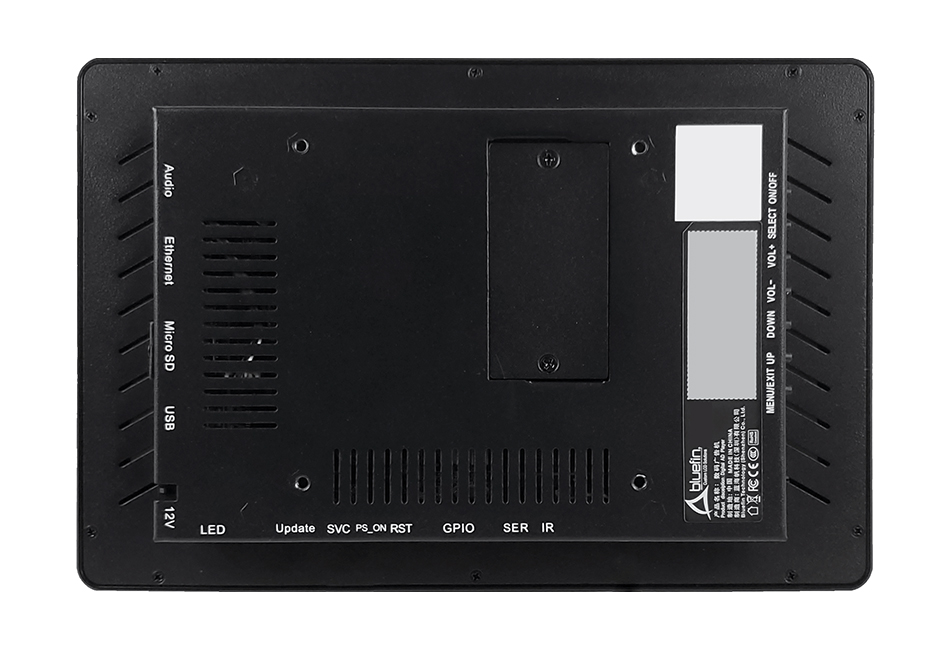

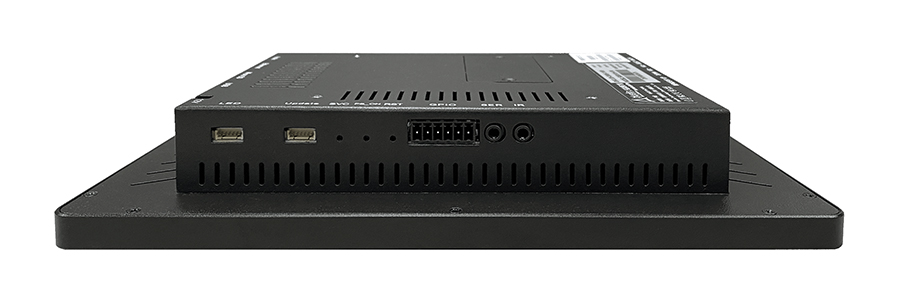

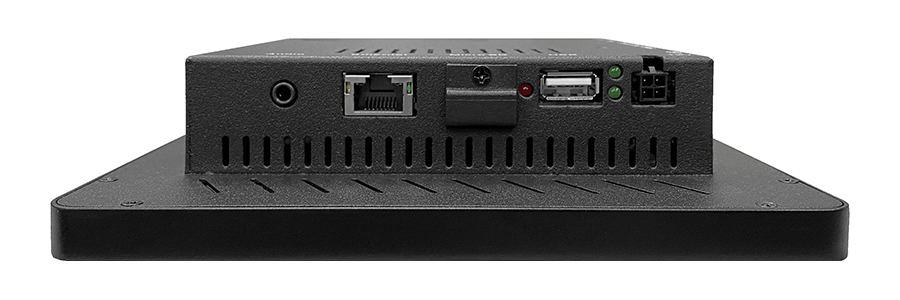

Bluefin - 10.1’’ Built-In Finished Touchscreen PoE
10.1’’ BrightSign Built-In Finished Touchscreen PoE
Listepris:
5.848,25 kr.*
Forhandlerpris - Login
10 stykker til rådighed, leveringstid: 2 - 3 arbejdsdage
Producentens varenummer:
20-3008-1085
Vores artikelnummer:
770061
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "Bluefin - 10.1’’ Built-In Finished Touchscreen PoE"
All-in-One LCD Screen with Touch & PoE.
Technical Details
DISPLAY
10.1'' LCD Screen
Resolution: 1280x800
Max Brightness: 400 nits
Viewing Angle: 89/89/89/89
Contrast: 800CR
Optional: Capacitive Touch
SYSTEM
BrightSign HS145 SoC
Single 4K60p video decoding
Dual HD video decoding
‘Mainstream’ HTML5 rendering
INPUT / OUTPUT
1x Micro-SD
1x USB 2.0
Phoenix GPIO (4-pin Bi-Directional)
3.5mm RS232 Serial
RJ45 Ethernet
2x Stereo 3W Speakers (Finished Units Only)
3.5mm Analog/Digital Audio Out
Optional Wi-Fi
HOUSING / MOUNTING
Size: 9.8'' x 6.7'' x 1.6''
Weight: 2.76 lbs (1.25kg)
Mounting: VESA 100x100mm M4x4mm
POWER
Adapter Style: Micro Molex
Adapter Output: 12V 2A
Adapter SKU: 20-0150-0603
Optional Power over Ethernet
PoE 802.3at (30W)
