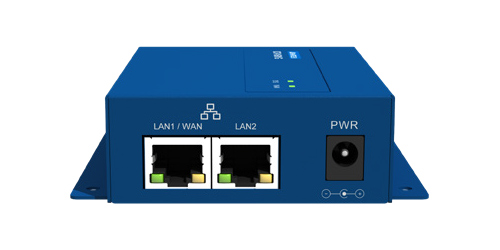

Advantech - ICR-1601W
Industrial Entry-Level Router with WiFi, EMEA, Cat.4, 2× ETH, no ACC
Producentens varenummer:
ICR-1601W
Vores artikelnummer:
263364
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
-
Beskrivelse ICR-1600, EMEA/LATAM/APAC, 2x Ethernet, Wi-Fi, Metal, Without Accessories Scope of delivery: Advantech - ICR-1601W Mere
-
Egenskaber Features LTE cat.4, 3G/HSPA+, GPRS/EDGE, EMEA, 2x SIM LTE B1, B3, B7, B8, B20 DIN and Wall mount options 2x ETH WiFi - 802… Mere
-
Tekniske detaljer Technical details Region EMEA: Yes Interface ETH Port(s): 2 Antenna Connectors Cellular Antennas: 2 x SMA WiFi Antennas:… Mere
-
Datablad
Produktinformation "Advantech - ICR-1601W"
ICR-1600, EMEA/LATAM/APAC, 2x Ethernet, Wi-Fi, Metal, Without Accessories
Scope of delivery: Advantech - ICR-1601W
Scope of delivery: Advantech - ICR-1601W
Features
- LTE cat.4, 3G/HSPA+, GPRS/EDGE, EMEA, 2x SIM
- LTE B1, B3, B7, B8, B20
- DIN and Wall mount options
- 2x ETH
- WiFi - 802.11n, AP, Multi SSID, WDS
- Operating temp. –30 °C to +70 °C, Power input : 5-18VDC (DC Jack), accessory with EU type power adapter
- Certifications: CE
- Diagnostics, VPN support, Firewall, WAN failover
Technical details
Region
EMEA: Yes
Interface
ETH Port(s): 2
Antenna Connectors
Cellular Antennas: 2 x SMA
WiFi Antennas: 1 x R-SMA
Power
Power Input (DC): 5 ~ 18 VDC
Sleep Mode: Yes
Environment
Temperature (Operating Range): -30 ~ 70°C (-22 ~ 158°F)
Humidity (Operating Range): 0~95%
Mechanism
Dimensions (W x H x D): 90 x 27 x 93 mm
Enclosure (Metal): Metal
Mounting (DIN-rail): Yes
Mounting (Wall): Yes
Software
Advances Software Tool: WA/DMP, WA/VPN
