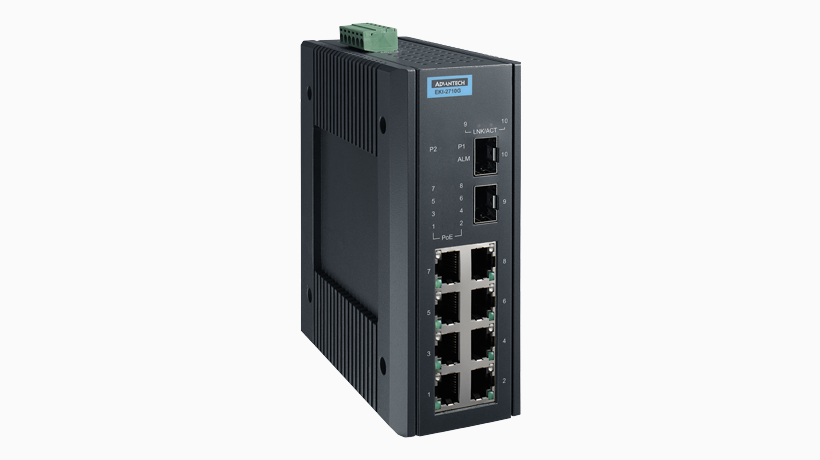

Advantech - EKI-2710G-2FPI
The EKI-2708G and EKI-2710G PoE switch are unmanaged Ethernet switches supporting 8 ports PoE+ (Power over Ethernet) and compliant with IEEE 802.3at/af standards. Provides up to 30 watts of power per port and fulfill the power budget of max. 240 watts on system with the power input from 12~48VDC . The switch provides a relay output for an event alarm which activate the alarm to notify administrators. Robust design for harsh environment, din rail mounting and fast startup with plug and work
The EKI-2708G and EKI-2710G support IEEE 802.3/802.3u/802.3z/802.3ab/802.3x with 10/100/1000 Mbps, full/half-duplex, auto-negotiation and MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network.
| Category: | Ethernet Switch |
|---|---|
| Mounting: | DIN-Rail, Panel / Wallmount |
| Port Number: | 8 Ports |
| Power Supply: | 12 - 48V DC |
| Temperature Range: | -40°C to 75°C, Extended Temperature Range |
| Management: | unmanaged |
Features
- 8 x Gigabit Ethernet ports or plus 2 Gigabit SFP ports
- Supports 8 x IEEE 802.3at/af PoE ports for PD requirements
- Up to 30 W power per PoE port
- Supports jumbo frame transmission up to 9k bytes
- DIN-rail mounting with IP30 metal mechanism
- 12 ~ 48 V DC redundant dual power input and 1 relay output
- Wide operating temperature range from -40 ~ 75°C
Specification
Interfaces / Communications
- I/O Port:

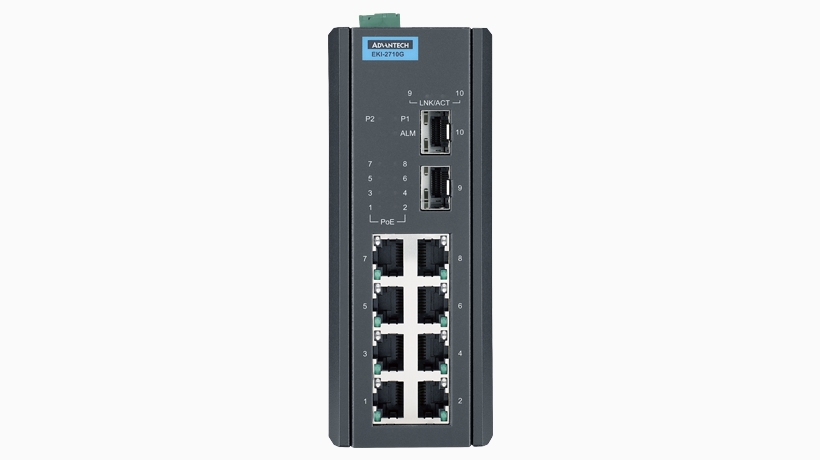

- 8 x 10/100/1000BASE-T/TX RJ-45
- 2 x SFP (mini-GBIC) 100/1000Mbps port
- Auto-Negotiation, Full/Half Duplex Mode
- Auto MDI/MDI-X Connection
- Standards:
- IEEE 802.3 for 10BaseT
- IEEE 802.3u for 100BaseT(X)/FX
- IEEE 802.3z for 1000BASE-X
- IEEE 802.3ab 1000BaseT(X)
- IEEE 802.3x for Flow Control
- PoE: Port 1 ~ Port 8: IEEE 802.3at/af

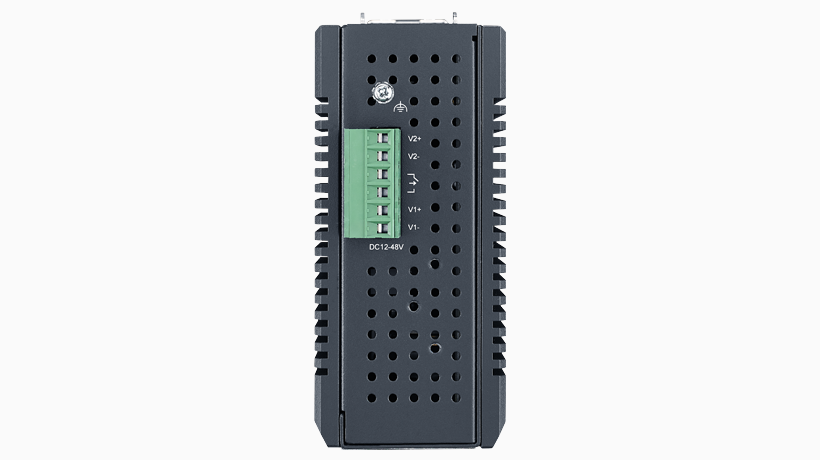

- Power Connector: 6-pin screw Terminal Block (including relay)
Physical
- Enclosure: Metal Shell
- Protection Class: IP 30

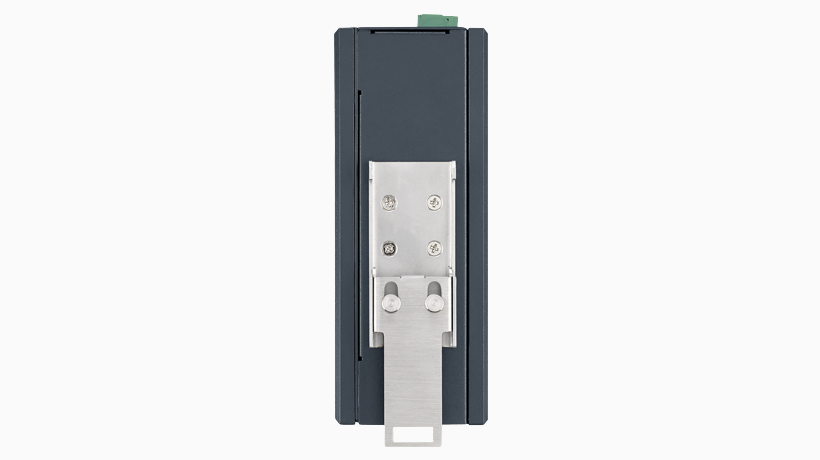

- Installation DIN-Rail, Wall-mount (optional)
- Dimensions (W x H x D) 54 x 140 x 120mm (2.126 x 5.511 x 4.724 inch)
- Weight 1.1kg
LED Indicators
- System LED: PWR1, PWR2, ALM
- Port LED: Link / Speed / Activity / PoE
Environment
- Operating Temperature: -40 ~ 75°C (-40 ~ 167°F)
- Storage Temperature: -40 ~ 85°C (-40 ~ 185°F)
- Ambient Relative Humidity: 5 ~ 95% (non-condensing)
- Overload Current Protection: Present
- Reverse Polarity Protection: Present
Power
- Power Consumption (system): Max. 5.28 W (system)
- Power Input:
- 12~48V DC
- redundant dual power input
- Power Budget:
- 240W @ 48VDC
- 120W@ 24VDC
- 80W @ 12VDC
- Fault Output 1 Relay Output, 1A@24V DC
Certification (Preliminary)
- Safety LVD EN62368-1
- EMI CE, CISPR 32, FCC Part 15B Class A, e-Mark compliant
- EMS:
- IEC 61000-4-2 ESD Level 4
- IEC 61000-4-3 RS
- IEC 61000-4-4 EFT Level 4
- IEC 61000-4-5 Surge Level 4
- IEC 61000-4-6 CS
- IEC 61000-4-8 PFM
- EMC:
- EN 55032
- EN 55035
- EN 61000-6-2
- EN 61000-6-4
- Shock: IEC 60068-2-27
- Freefall: IEC 60068-2-32
- Vibration: IEC 60068-2-6
- Traffic control: NEMA TS-2 compliant
- Railway Trackside: EN 50121-4 compliant
