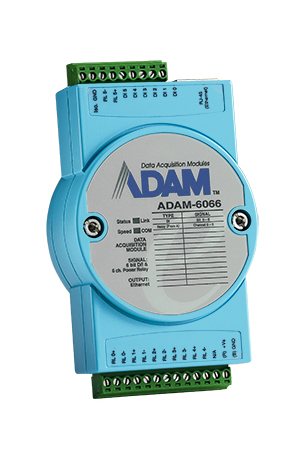

Advantech - ADAM-6066-D
6-channel digital input and 6-channel power relay Modbus TCP module
Listepris:
1.497,45 kr.*
Forhandlerpris - Login
64 stykker til rådighed, leveringstid: 2 - 3 arbejdsdage
Producentens varenummer:
ADAM-6066-D
Vores artikelnummer:
260005
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "Advantech - ADAM-6066-D"
ADAM-6000 enables easy integration of automation and enterprise systems via internet technology, allowing users to avoid changing the entire control system architecture and even monitor equipment status remotely with greater flexibility. ADAM-6000 modules are supported by peer-to-peer (P2P) and Graphic Condition Logic (GCL) and can be used as stand-alone products for measurement, control and automation. Instead of additional controls or programming, system configuration can be done in system configurations in extremely short time with the easy-to-use and intuitive graphical utility.
Scope of delivery: Advantech ADAM-6066-D
Scope of delivery: Advantech ADAM-6066-D
| I/O Interfaces: | Digital Input, Relais |
|---|---|
| Interface: | Ethernet |
| Protocol: | ModBus, TCP, UDP |
Features
- I/O: 6 channel relay / 6 channel digital input (counter)
- Protocols: MQTT(TLS), SNMP, Modbus TCP, RESTful, ASCII
- GCL to execute basic logical control rules
- Peer-to-peer function to map I/O status
- Cloud access: data update on Azure
- Built-in web server
- Watchdog timer for system recovery
Technical details
Display
Power supply
Digital I/O
General
Digital input
Digital output
Display
- LED indicators: Status, Comm, Link, Speed
Power supply
- Power requirement: 10~30 VDC
Digital I/O
- Frequency input: DI counter (32-bit + 1-bit overflow, 3kHz max.)
General
- Watchdog timer: System (1.6 seconds) & communication (programmable)
- Operating temperature: -40 ~ 70°C (-40 ~ 158°F)
- Humidity: 20~95 %RH
- Storage temperature: -40 ~ 80°C (-40 ~ 176°F)
- Interface: 10/100Base-T(X)
- Peer-to-peer: Yes
- GCL: Yes
- Isolation protection: 2000 VDC
- Communication protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, SNMP, MQTT
- Communication speed: Ethernet: 10/100Mbps
- Comm. Distance: Ethernet: 100 m
- Connection: 1 x RJ-45 (LAN) & 2 x plug-in terminal strip (I/O and power)
Digital input
- Input voltage: dry contact: Logic level 0: close to GND Logic level 1: open Wet contact: Logic level 0: 0~3 VDC Logic level 1: 10~30 VDC
- Channels: 6
Digital output
- Channels: 6-channel relay support pulse output
