Advantech - ADAM-6050-D1
1.288,85 kr.*
89 stykker til rådighed, leveringstid: 2 - 3 arbejdsdage
ADAM-6000 series Ethernet-based data acquisition and control (DA&C) modulesprovide I/O, data acquisition, and networking capabilities in one module, allowing youto build a cost-effective distributed monitoring and control solution for a wide varietyof applications.

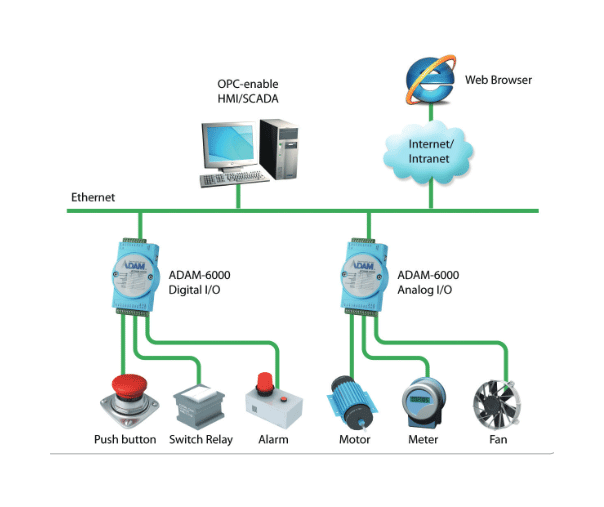

Through a standard Ethernet network, ADAM-6000 modules canretrieve I/O values from sensors and can publish them as real-time I/O values to net-working nodes via LAN, intranet, or the Internet. With Ethernet-enabled technology,ADAM-6000 modules allow you to build up a cost-effective DA&C system for buildingautomation, environmental monitoring, facility management, and e-manufacturingapplications
PACKAGE CONTENTS: ADAM-6050-D1
| I/O Interfaces: | Digital Input, Digital Output, I/O Sink |
|---|---|
| Interface: | Ethernet |
| Protocol: | ModBus, TCP, UDP |
| Temperature Range: | Standard Temperature Range |
Features
- 12ch digital input(counter)/6ch digital output(pulse output)
- Protocols: MQTT(TLS), SNMP, Modbus TCP, RESTful API, ASCII
- GCL to perform basic logic control rules
- Peer-to-Peer function to map I/O status
- Cloud access: Data update to Azure
- Built-in web server
- Watchdog timer to recover the system
Technical Specifications
General
- Certification: FCC, CE, UL *Class I, Division 2, Groups A, B, C and D Hazardous Locations
- LAN: 1-port 10/100Base-T(X)
- Power Consumption: 2 W @ 24 V DC
- Connectors: 1 x RJ-45 (LAN), Plug-in screw terminal block (I/O and power)
- Watchdog System (1.6 second) and Communication (programmable)
- Power Input: 10 ~ 30 V DC
- Supports Peer-to-Peer, GCL
- Supports User Defined Modbus Address
- Supports Modbus/TCP, TCP/IP, UDP, RESTful, MQTT (D version), SNMP (D version) Protocol
Protection
- Power Reversal Protection
- Isolation Protection: 2,000 V DC
Environment
- Operating Temperature: -20 ~ 70°C (-4 ~ 158°F) D version -40 ~ 70°C (-40~158°F)
- Storage Temperature: -30 ~ 80°C (-22 ~ 176°F) D version -40 ~ 85°C (-40~185°F)
- Operating Humidity: 20 ~ 95% RH (non-condensing)
- Storage Humidity: 0 ~ 95% RH (non-condensing)
Digital Input
- Channels: 12
- Dry Contact Logic level 0: Closed to GND; Logic level 1: Open
- Wet Contact Logic level 0: 0 ~ 3 V DC; Logic level 1: 10 ~ 30 V DC or floating
- Supports DO type: Sink (NPN)
- Supports 3 kHz Counter Input (32-bit + 1-bit overflow)
- Keep/Discard Counter Value when Power-off
- Supports 3 kHz Frequency Input
Digital Output
- Channels: 6 (sink type), open collector to 30 V, 100 mA maximum load
- Supports 5 kHz Pulse Output
- Supports High-to-Low and Low-to-High Delay Output
Ordering Information
- ADAM-6050-D1: 18-ch Isolated DI/O Modbus TCP Module
