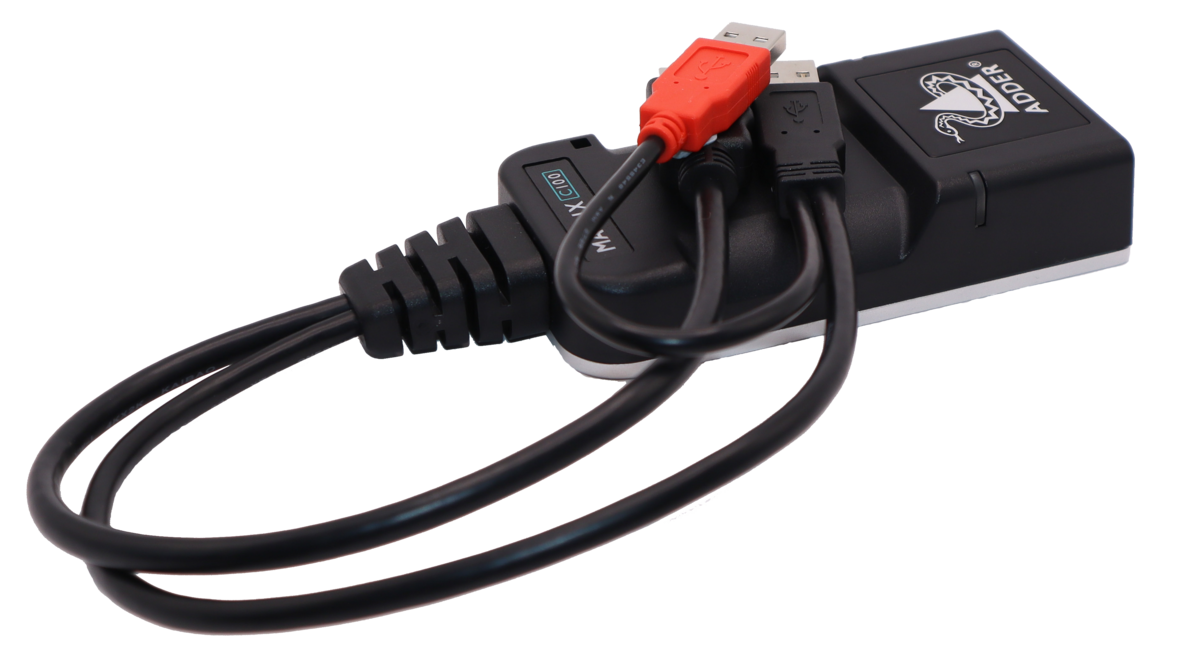

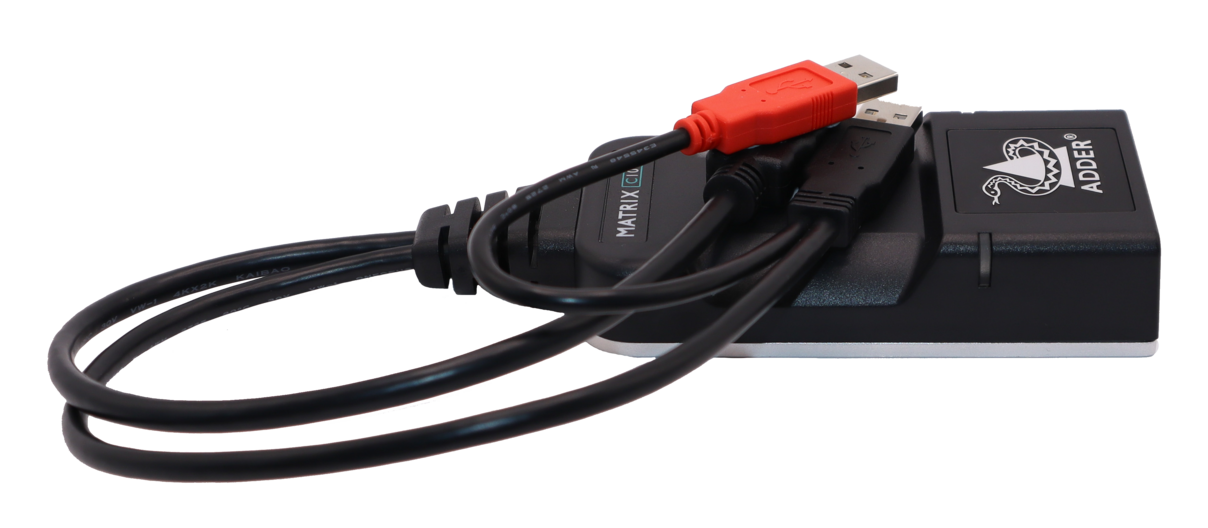

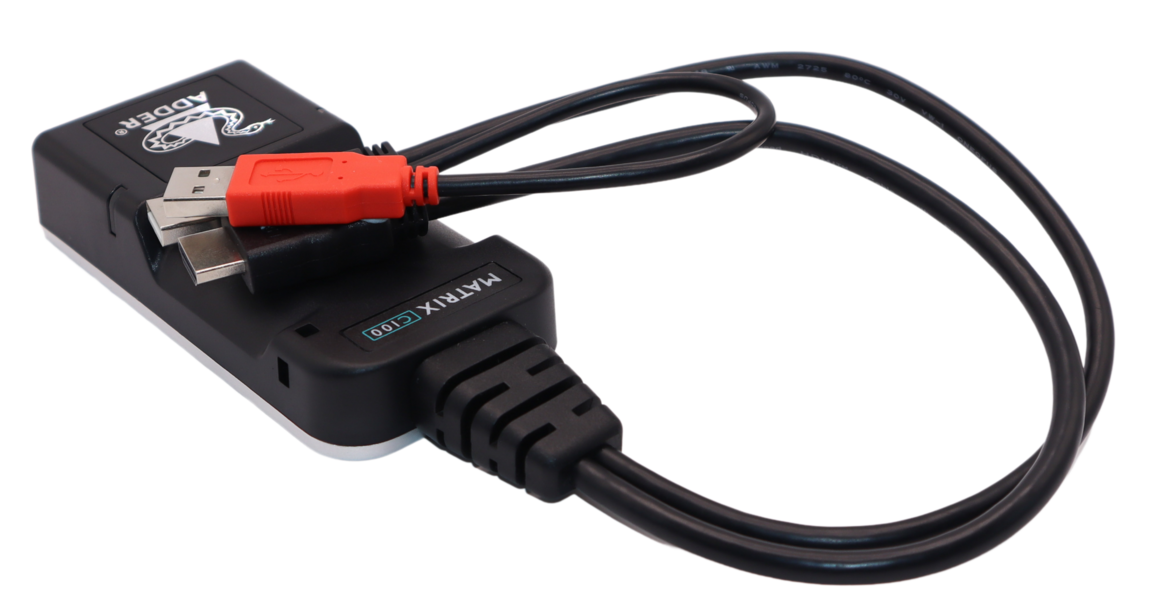

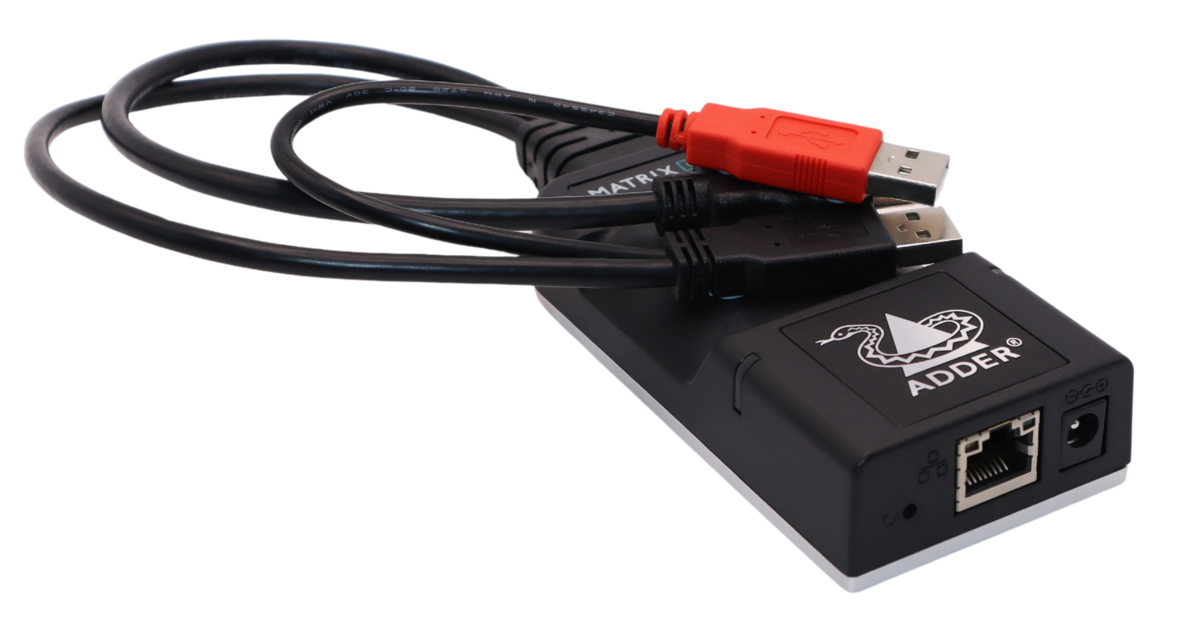

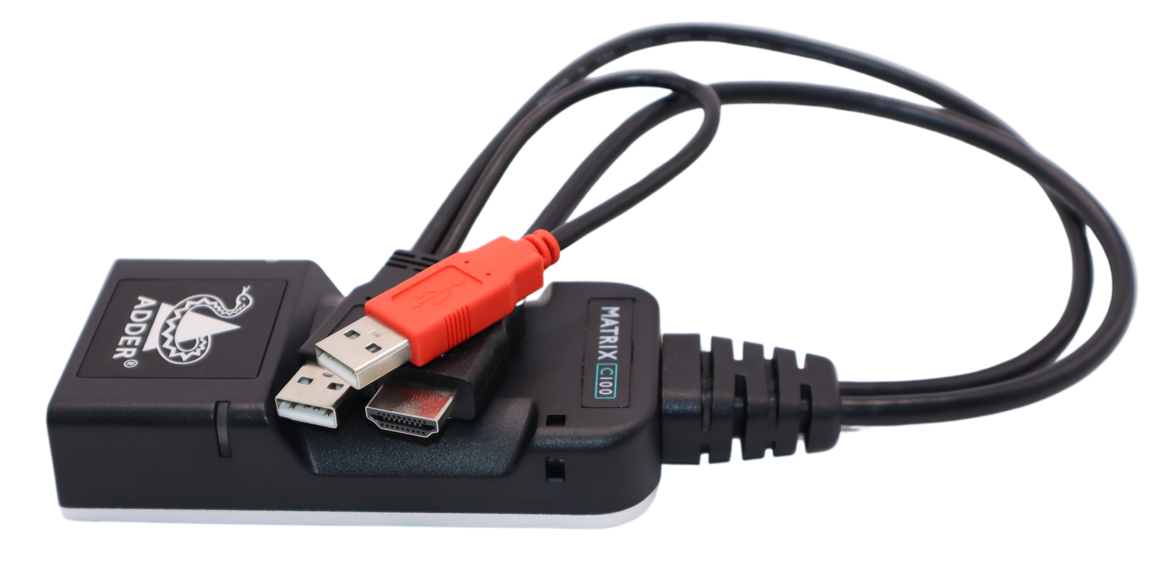

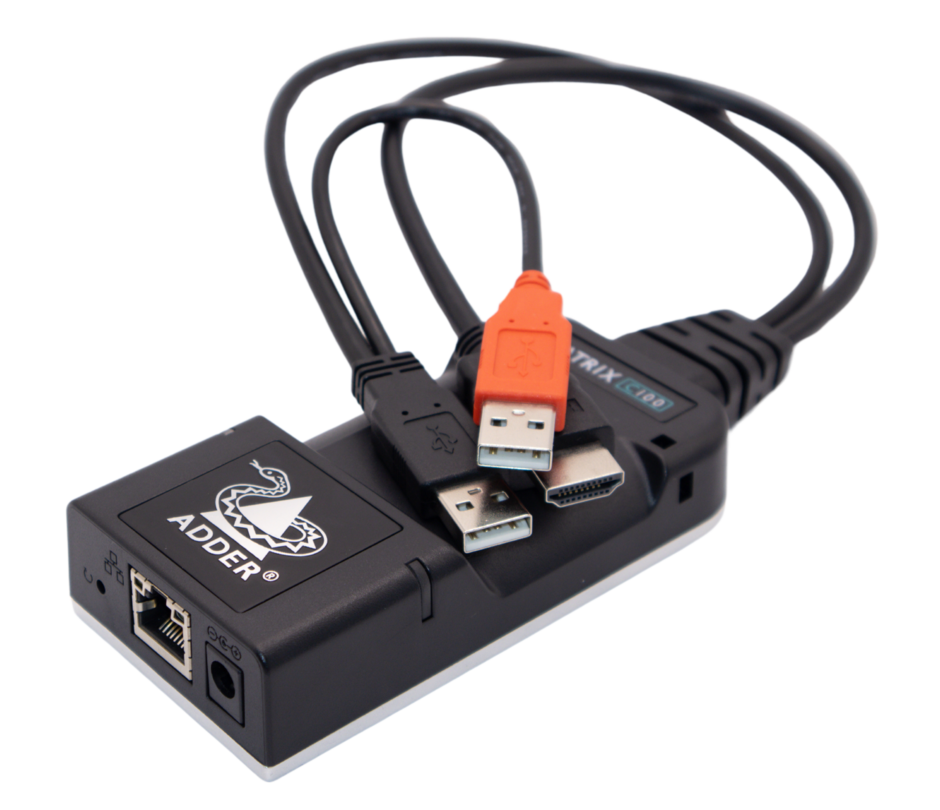

ADDERView - Matrix C110 (HDMI)
An ADDERView Matrix C100 Series ZeroU™ IP KVM dongle for extension and matrix of video, audio and USB over a single cable.
Producentens varenummer:
AVM-C110-CAM-HM
Vores artikelnummer:
490582
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "ADDERView - Matrix C110 (HDMI)"
The ADDERView Matrix C110 (HDMI) is a ZeroU™ Computer Access Module (CAM) with a HDMI connecter to enable computer systems to be attached to an ADDERView KVM system.
PACKAGE CONTENTS: ADDERView Matrix C110 Computer Access Module (HDMI), Quick start guide
| Temperature Range: | 0°C to 50°C |
|---|
Features
- ZeroU™ Form Factor
- USB Powered
- USB 2.0 with Class Control
- Perfect Digital Video in Real-Time
- Support for Dithered Video
- EDID Management
- Digital Audio
- Plug and Play
Specifications
Video Information (1 Screen)
- Maximum Resolution (1 Screen): 2560 x 1600
- Frame Rate (1 Screen): 60
- Color Depth (1 Screen): 8 bpc
Computer Connections
- USB A: 2x 2.0, True Emulation,Full Speed,Low Speed,High Speed
- HDMI®: 1x
Link Ports
- 8p8c (RJ45): 1x
- SFP: 1x
Audio Connections
- Audio Type: Digital
- Channels: 2x
- Audio Direction: Bi-directional
- Audio Additional Information: Digital Audio 2 channel linear PCM
- Size (bit): 16
- Speed (kHz): 48
- Audio In Port: 1x USB
Cable Requirements
- CAT5e and above: 100m / 328ft
Network Support
- Bandwidth: 1GbE
- 10/100 Support: No
Environmental
- Operating Temperature Range °C / °F: 0 to 50 °C / 32 to 122 °F
- Storage Temperature °C / °F Range: 0 to 50 °C / 32 to 122 °F
- Operating Humidity (%): 10% - 90% (non-condensing)
- Storage Humidity (%): 10% - 90% (non-condensing)
- Altitude m/ft: 2,000 / 6562
- Mean Time Between Failure (MTBF): 836,000
- MTBF Standard: Telcordia SR332 Issue 4 March 2016 Calculated @ 55C
- Temperature Regulation: Fanless
Power Source
- USB powered: 2x
- 5V: 1x
- Power Additional Information: USB power: 2x USB2.0 (2x 500mA @5V) 5W• External power: 5VDC, 1A, (LPS)
Power Consumption
- Maximum Power (Watts): 5
- Typical Power (Watts): 3
Physical Design
- Construction Material: ABS and aluminum construction
- Width (mm) / (in.): 55 / 2.2
- Height (mm) / (in.): 25 / 1
- Depth (mm) / (in.): 110 / 4.3
- Flying Lead Length (mm): 300
- Weight (kg) / (lb): 0.2 / 0.4
Compatibility
- OS Compatibility: All known operating systems
- System Requirements: Does not support HDCP or CEC control
Approvals and Standards
- Approvals: CE, cULus - E476334, FCC, ICES, UKCA
- Standards: ANSI 63.4, EN55032 /CISPR 32, EN55035/CISPR 35, EN63000, FCC pt15B, ICES003
- Other: Cal Prop 65, China ROHS, EU REACH, UK REACH
