ADDERView - DDX30
30-port matrix KVM switch for DVI/DisplayPort/VGA and audio
Producentens varenummer:
DDX30
Vores artikelnummer:
490399
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
-
Beskrivelse The ADDERView DDX30 is a high-performance KVM switch that offers powerful features in a small, compact form factor. Featuri… Mere
-
Egenskaber Features Thumbnail view on the screen in multiple views Provides users with a live preview of the permitted computers direc… Mere
-
Tekniske detaljer Technical details Approvals / Compliance CE FCC Standards Resolutions up to 1920x1200 at 60Hz Cable requirements DDX30,… Mere
-
Datablad
-
Tilbehør
Produktinformation "ADDERView - DDX30"
The ADDERView DDX30 is a high-performance KVM switch that offers powerful features in a small, compact form factor. Featuring Adder's trusted lossless KVM extension technology with flexi-port switching, the DDX30 allows multiple users to access multiple computers securely located in your server room. When combined with DDX CAM and DDX USR, the DDX30 forms an integral part of a KVM matrix. It is also available with 10 ports.
Optional accessories:
- Flexible
A 30-port extender with matrix capabilities, its ports can be reconfigured as inputs or outputs as required. - Installing a secure matrix
Direct Connect matrix running on proprietary KVM hardware outside your network. - Ergonomically optimised
Hardware can be located up to 50 m away from desks at the user console, reducing noise levels and increasing worker comfort and productivity. - Intuitive user interface
Thumbnail view with multiple views on screen and user permissions - High quality video
lossless HD video in real time
Optional accessories:
- RMK8: Two DDX-USR rack brackets plus four retaining clips and screws.
- RMK5V: VESA mounting kit (plus screws)
- VSCD1: DVI-D 2m cable
- VSC24: USB cable 2m (type A to B)
- VSC22: Audio cable 3m (3.5mm)
Graphic Port: | DVI, DisplayPort, VGA |
---|---|
KVM Ports: | 24 Ports |
Power Supply: | Dual AC |
Remote Users: | 8 Users |
Features
Thumbnail view on the screen in multiple views
Provides users with a live preview of the permitted computers directly on their screen.
Connection mode selection
The user can choose between exclusive mode, which provides full KVM control while sharing video content with other colleagues. Users can also switch to private mode if they wish to work privately.
Intuitive web interface
Users have personal logins, while system administrators can securely access management tools to configure system settings, set access rights and control video connections.
Built-in security measures
The web interface is secured using HTTPS, administrators must log in for each connection, and an API allows switch control via a third-party control system.
Lossless HD video support
Delivers lossless HD video at resolutions up to 1920 x 1200 at 60 Hz, providing a real-time experience on the PC.
Multi-head video support
DDX transmitters (CAMs) and receivers (USRs) offer multi-head video support and can be grouped into "computers" and "consoles" that support dual-head and quad-head connectivity.
USB emulation
USB supports only basic USB HID (Human Interface Device), including keyboards, mice and Windows-supported touchscreens.
Rugged yet lightweight
Small form factor and rack-mountable unit
Thumbnail view on the screen in multiple views
Provides users with a live preview of the permitted computers directly on their screen.
Connection mode selection
The user can choose between exclusive mode, which provides full KVM control while sharing video content with other colleagues. Users can also switch to private mode if they wish to work privately.
Intuitive web interface
Users have personal logins, while system administrators can securely access management tools to configure system settings, set access rights and control video connections.
Built-in security measures
The web interface is secured using HTTPS, administrators must log in for each connection, and an API allows switch control via a third-party control system.
Lossless HD video support
Delivers lossless HD video at resolutions up to 1920 x 1200 at 60 Hz, providing a real-time experience on the PC.
Multi-head video support
DDX transmitters (CAMs) and receivers (USRs) offer multi-head video support and can be grouped into "computers" and "consoles" that support dual-head and quad-head connectivity.
USB emulation
USB supports only basic USB HID (Human Interface Device), including keyboards, mice and Windows-supported touchscreens.
Rugged yet lightweight
Small form factor and rack-mountable unit
Technical details
Approvals / Compliance
Resolutions up to 1920x1200 at 60Hz
Cable requirements
DDX30, DDX10, DDX CAM and DDX USR cables must use a minimum specification of STP (Shielded Twisted Pair) cables. Recommended cables are SFTP:
Notes:
Unshielded cables are not suitable for DDX. Distances are achieved with single lengths of SFTP trunk / bulk cable with two 3 m SFTP patch cables. Reduce the distance by 5 m for each additional trunk / patch connection. Patch cables must be SFTP.
Operating temperature
0 to 40ºC / 32 to 104ºF
Connectors
Compact enclosure, robust metal construction.
Designed for 19-inch rack mounting:
435 mm (17.13 in (W), 31 mm (1.22 in (H)), 160 mm (6.3 in (D)), 1.9 kg (4.2 pounds). Rack mount included.
Power
2 x locking, 3-pin socket (1 x power supply included), 100-240 VAC, 50/60 Hz, 0.7 A, input to power supply, 12 V DC, 18 W output from power supply.
Approvals / Compliance
- CE
- FCC
Resolutions up to 1920x1200 at 60Hz
Cable requirements
DDX30, DDX10, DDX CAM and DDX USR cables must use a minimum specification of STP (Shielded Twisted Pair) cables. Recommended cables are SFTP:
- Daetwyler 7702 Flexible Patch Cable.
- Daetwyler 7120 Bulk Cable
Res (@ 60Hz) | Cable | Patches | Distance |
---|---|---|---|
1920 x 1200 | SFTP | 0 | 50m |
1920 x 1200 | SFTP | 2 | 40m |
Notes:
Unshielded cables are not suitable for DDX. Distances are achieved with single lengths of SFTP trunk / bulk cable with two 3 m SFTP patch cables. Reduce the distance by 5 m for each additional trunk / patch connection. Patch cables must be SFTP.
Operating temperature
0 to 40ºC / 32 to 104ºF
Connectors

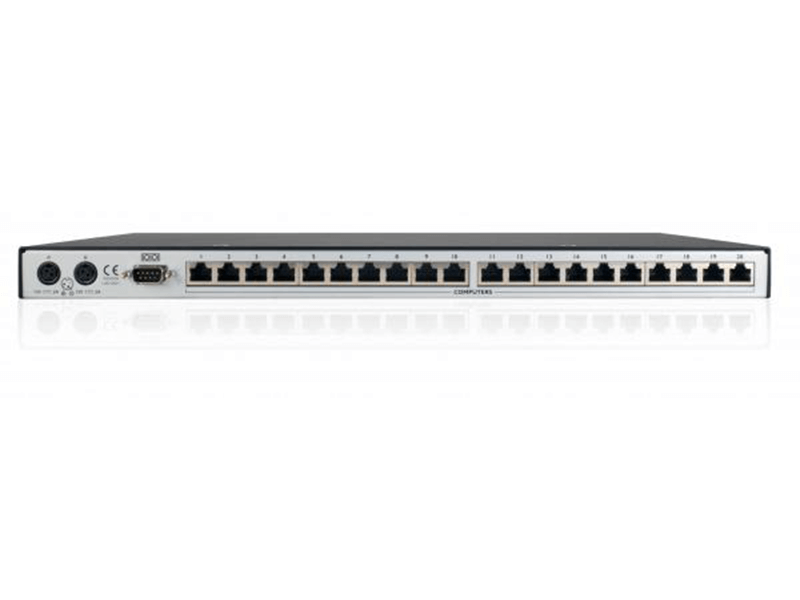

- 1 x 8p8c for 10/100/1000 Ethernet connection
- 1 x 9-pin RS232 type D option connector

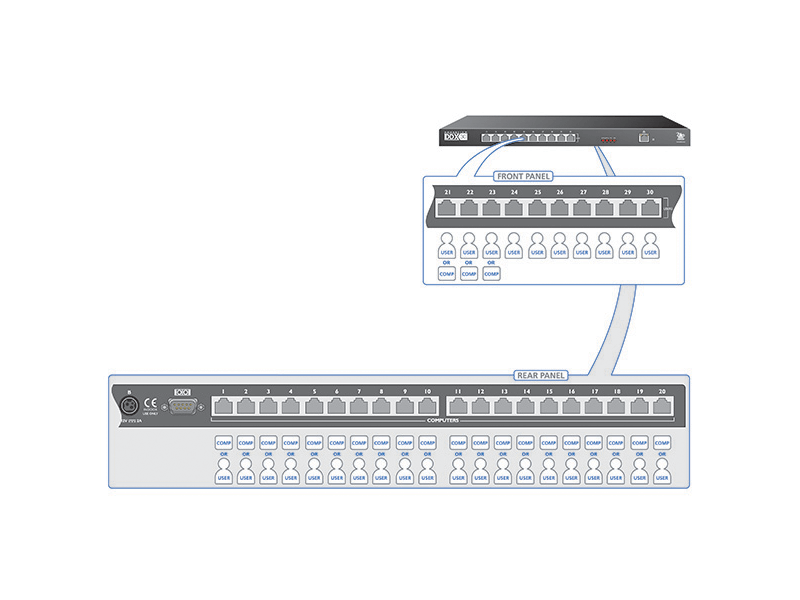

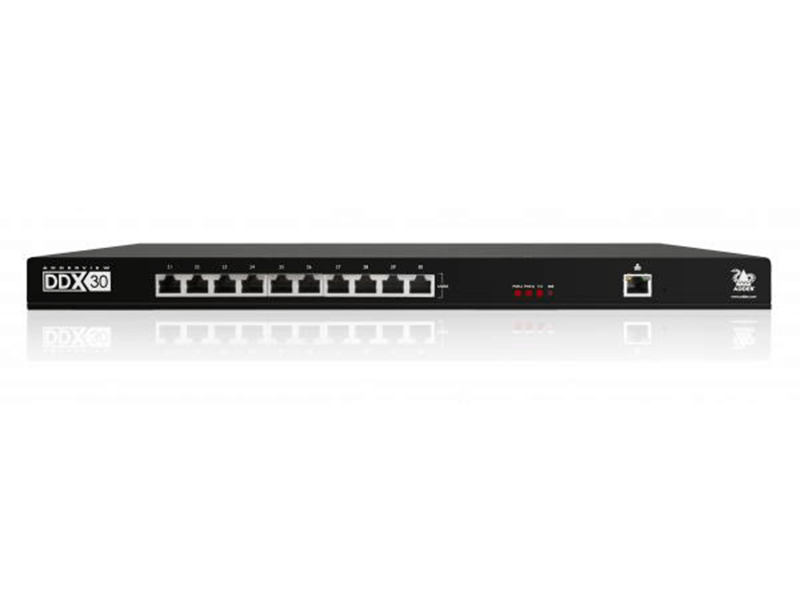

- 30 x 8p8c connectors for computer or user connections (7 connectors on the front are for users)
- Maximum 23 computer connections, minimum 1 computer.
- Maximum 29 user connections, minimum 7 user.
Compact enclosure, robust metal construction.
Designed for 19-inch rack mounting:
435 mm (17.13 in (W), 31 mm (1.22 in (H)), 160 mm (6.3 in (D)), 1.9 kg (4.2 pounds). Rack mount included.
Power
2 x locking, 3-pin socket (1 x power supply included), 100-240 VAC, 50/60 Hz, 0.7 A, input to power supply, 12 V DC, 18 W output from power supply.
