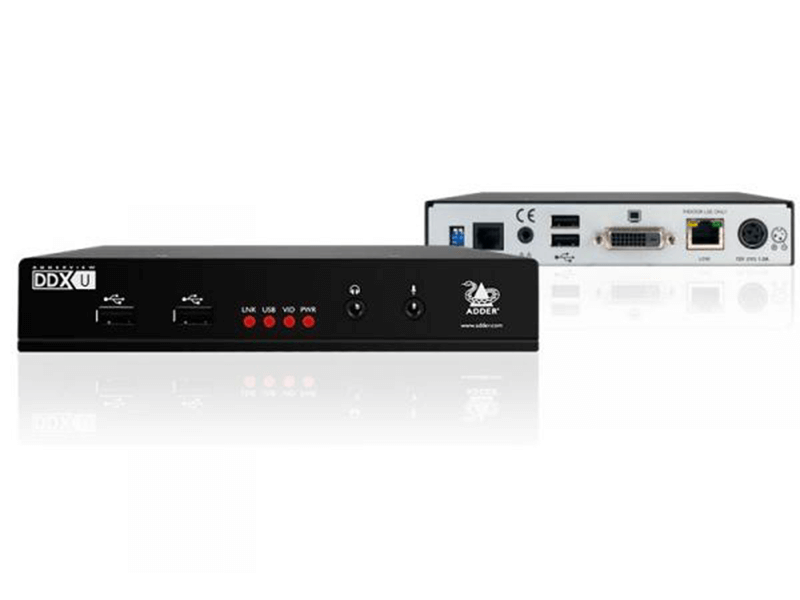

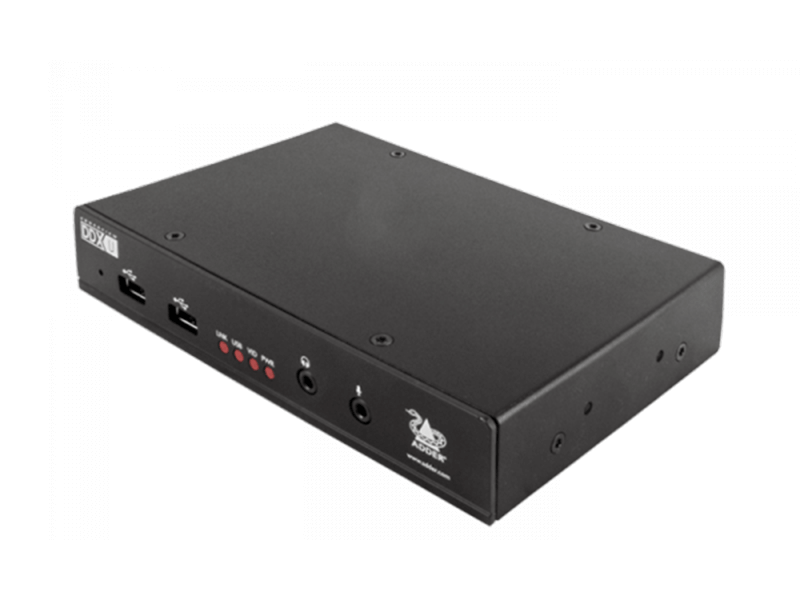

ADDERView - DDX-USR
Userstation mit DVI und 2x USB für DDX10/DDX30
Producentens varenummer:
DDX-USR
Vores artikelnummer:
490400
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktets levetid er udløbet!
Opfølgende produkt:
We will find a suitable replacement product for your requirements - please contact our sales department.
Produktinformation "ADDERView - DDX-USR"
The DDX USR is part of the ADDERView DDX- series and is the user station for the DDX series, a high performance KVM matrix that offers powerful features in small, compact form factors. When connected directly to the DDX-CAM, a KVM extender is created. When combined with the DDX10 or DDX30, it is an integral part of a KVM matrix.
Optional accessories:
- User station for the Direct Connect Matrix system
Hardware can be located up to 50 m away from desks at the user console, reducing noise levels and increasing staff comfort and productivity - Easily expand your installation
Simply add a USR and CAM module for each new computer system and user to protect your investment - High quality video
Real-time lossless HD video
Optional accessories:
- RMK8: Two DDX-USR rack brackets plus four retaining clips and screws.
- RMK5V: VESA mounting kit (plus screws)
- VSCD1: DVI-D 2m cable
- VSC24: USB cable 2m (type A to B)
- VSC22: Audio cable 3m (3.5mm)
| Graphic Port: | DVI, DisplayPort |
|---|---|
| Keyboard & Mouse: | USB |
| Option: | Audio |
Features
Perfect digital video
Uncompressed video technology provides ultra-low latency and pixel-perfect digital video at up to 24 bits per colour at a maximum of 1920 x 1200 over 60 Hz, including 1080p, with real-time control.
EDID management
EDID (Extended Display Identification Data) allows the remote system to accurately reflect the date coming from the source monitor.
Plug and Play
Comes in a zero configuration state, so they work as soon as they are connected, with no drivers or software required.
Simple CATx cabling
Analogue audio, video and USB 2.0 HID are transmitted over a widely used SFTP cable that also connects the central switch to the user console (up to 50 m) and computer dongles (up to 10 m).
Perfect digital video
Uncompressed video technology provides ultra-low latency and pixel-perfect digital video at up to 24 bits per colour at a maximum of 1920 x 1200 over 60 Hz, including 1080p, with real-time control.
EDID management
EDID (Extended Display Identification Data) allows the remote system to accurately reflect the date coming from the source monitor.
Plug and Play
Comes in a zero configuration state, so they work as soon as they are connected, with no drivers or software required.
Simple CATx cabling
Analogue audio, video and USB 2.0 HID are transmitted over a widely used SFTP cable that also connects the central switch to the user console (up to 50 m) and computer dongles (up to 10 m).
Technical details
Approvals / Compliance
DDX30, DDX10, DDX CAM and DDX USR cables must use a minimum specification of STP (Shielded Twisted Pair) cables. Recommended cables are SFTP:
Distances are achieved with single lengths of SFTP trunk / bulk cable with two 3 m SFTP patch cables.
Reduce the distance by 5 m for each additional trunk / patch connection. Patch cables must be SFTP.
Operating temperature
0 to 40ºC / 32 to 104ºF
Connectors
Compact housing, robust metal construction.
170 mm (6.65 in. (W), 31 mm (1.22 in. (H)), 120 mm (4.8 in. (D)), 0.6 kg (1.3 lb.)
Power
Locking 3-pin DC socket, 100-240 VAC, 50/60 Hz, 0.7 A, input to power supply unit, 12 V DC, 18 W, output to power supply unit
Software
All known operating systems
Approvals / Compliance
- CE
- FCC
- Resolutions up to 1920 x 1200 at 60 Hz are supported, including 1080p.
- Supports USB 2.0 HID devices (Low, Full Speed).
DDX30, DDX10, DDX CAM and DDX USR cables must use a minimum specification of STP (Shielded Twisted Pair) cables. Recommended cables are SFTP:
- Daetwyler 7702 Flexible Patch Cable.
- Daetwyler 7120 Bulk Cable
Distances are achieved with single lengths of SFTP trunk / bulk cable with two 3 m SFTP patch cables.
Reduce the distance by 5 m for each additional trunk / patch connection. Patch cables must be SFTP.
Operating temperature
0 to 40ºC / 32 to 104ºF
Connectors

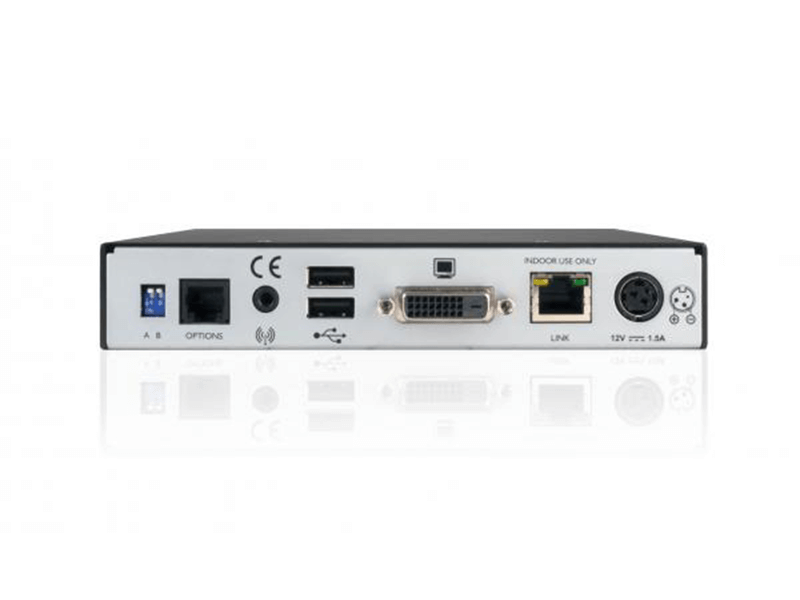

- DVI-D, USB type A x 4, 6p6c option port, 3 x 3.5 mm jacks for headphone out, microphone in and line out.
- Network connection 30 x 8p8c ports for user connection
Compact housing, robust metal construction.
170 mm (6.65 in. (W), 31 mm (1.22 in. (H)), 120 mm (4.8 in. (D)), 0.6 kg (1.3 lb.)
Power
Locking 3-pin DC socket, 100-240 VAC, 50/60 Hz, 0.7 A, input to power supply unit, 12 V DC, 18 W, output to power supply unit
Software
All known operating systems
Tilbehør
ADDER - RMK5V
VESA Rackmount Kit for ADDERLink XDIP, ADDERView DDX-USR, ADDERLink XD150 and ADDERLink XD150FX
ADDER - RMK8
Rackmount Kit for ADDERLink XDIP, ADDERLink XD150, ADDERLink XD150FX, ADDERView DDX USR and ADDERLink ipeps+
