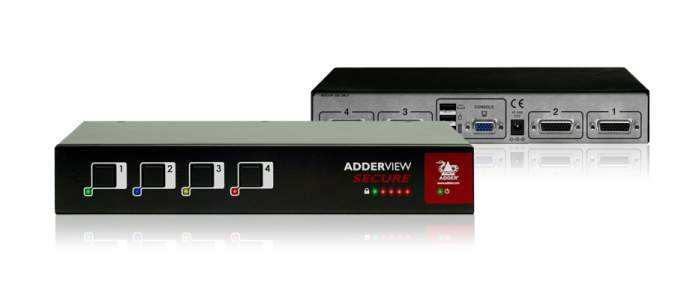

ADDERView - AVSV1002
KVM Switch with USB, VGA (2 port EAL4+, EAL2+ certified & Tempest qualified)
Producentens varenummer:
AVSV1002
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Product information "ADDERView - AVSV1002"

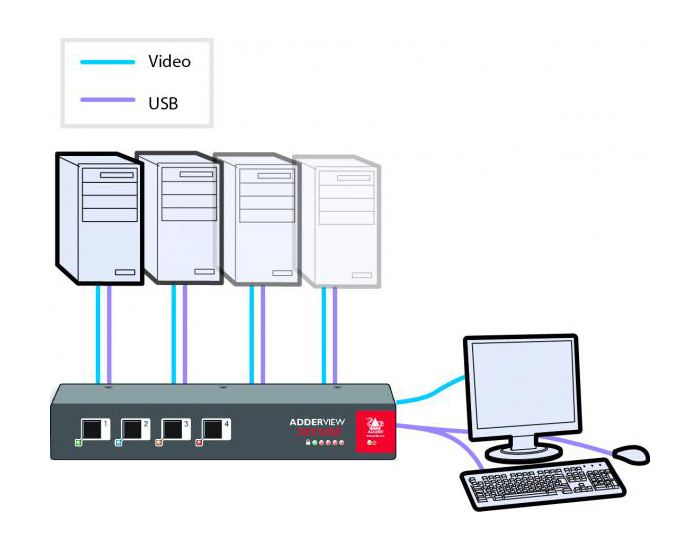

The ADDERView Analog Enhanced SecureSwitch enables keyboard, monitor and mouse sharing between high and low security systems, "red and black networks" and secure smart card reader sharing. The high-density, highly robust, small form factor unit ensures maximum security to prevent critical data from being compromised.
Scope of delivery: ADDER AVSV1002, power supply, rubber feet, CD-ROM
- Secured Channel Switching: The unit can only be controlled directly, not via peripheral devices.
- Data security: Unidirectional data flow and controlled memory restrict access to information
- Tamper-proof design: The physical enclosure and circuitry minimise the risk of unauthorised access
- Industry recognised: Designed to meet common criteria; EAL4 + certified
- Secure smartcard reader release: between connected systems.
Scope of delivery: ADDER AVSV1002, power supply, rubber feet, CD-ROM
| Graphic Port: | VGA |
|---|---|
| KVM Ports: | 2 Ports |
| Keyboard & Mouse: | USB |
| Power Supply: | Single AC |
Features
TEMPEST qualified and EAL4 + certified
Tempest-certified design (USA NSTISSAM Level I and NATO SDIP-27 Level A), EAL4 + Common Criteria Evaluation Assurance Level 4 (extended by ALC_FLR.2 and ATE_DPT.2)
Physical port identification
Channel switching is controlled by front panel buttons only. No keyboard or mouse switching commands are allowed. Two port sizes and four port sizes are available as standard or enhanced versions.
Hardwired port isolation
Data diodes implemented in hardwired electronic circuits ensure unidirectional flow of critical data paths and protect vulnerable peripherals by preventing information from being read or transmitted by another system. Peripherals are always powered down and reinitialised when a channel change occurs to provide additional protection against hidden peripheral malware.
No critical dependence on software
Minimal use of software within the unit eliminates the possibility of subversive reprogramming. One-time programmable memory replaces flash memory in all security-critical areas of the unit.
Designed to minimise emissions and isolate electrical crosstalk.
Electromagnetic emissions are reduced and transmission of signals to other computers is prevented by extensive shielding of the outer casing and internal circuitry. External probes and unauthorised internal access are prevented by the unit design with as few openings as possible.
TEMPEST qualified and EAL4 + certified
Tempest-certified design (USA NSTISSAM Level I and NATO SDIP-27 Level A), EAL4 + Common Criteria Evaluation Assurance Level 4 (extended by ALC_FLR.2 and ATE_DPT.2)
Physical port identification
Channel switching is controlled by front panel buttons only. No keyboard or mouse switching commands are allowed. Two port sizes and four port sizes are available as standard or enhanced versions.
Hardwired port isolation
Data diodes implemented in hardwired electronic circuits ensure unidirectional flow of critical data paths and protect vulnerable peripherals by preventing information from being read or transmitted by another system. Peripherals are always powered down and reinitialised when a channel change occurs to provide additional protection against hidden peripheral malware.
No critical dependence on software
Minimal use of software within the unit eliminates the possibility of subversive reprogramming. One-time programmable memory replaces flash memory in all security-critical areas of the unit.
Designed to minimise emissions and isolate electrical crosstalk.
Electromagnetic emissions are reduced and transmission of signals to other computers is prevented by extensive shielding of the outer casing and internal circuitry. External probes and unauthorised internal access are prevented by the unit design with as few openings as possible.
Technical details
Approvals / Conformity
Standards
Compatible with all known hardware platforms with VGA video and USB HID or PS / 2 connectivity
Support for all popular software and operating systems, including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS and NetWare
Video analogue: up to 1920 x 1200 at 60 Hz
Cable guidelines
The special cables available for connections to each system are carefully constructed with braiding and foil to provide excellent shielding against signal emissions that could otherwise be intercepted. A similarly constructed cable is also available for the monitor connection (VSCD9).
The special cables are already equipped with ferrite cores to support signal suppression. For USB peripheral connections, we strongly recommend adding ferrite cores to these cables (if not already present) to further support emission suppression.
Operating temperature
0 to 40 ° C / 32 to 104 ° F.
Computer connections Transmitter (TX)
2 x USB HID (keyboard/mouse), HD-15 VGA, 2 or 4 x system connection, smart card USB
Physical design
Compact housing, robust metal construction, extensive shielding
Power supply
100-240 V AC 47/63 Hz
Approvals / Conformity
- CE
- FCC
- Designed to meet general criteria EAL4 + certified (EAL4 + certificate available)
- Tempest-qualified design
Standards
Compatible with all known hardware platforms with VGA video and USB HID or PS / 2 connectivity
Support for all popular software and operating systems, including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS and NetWare
Video analogue: up to 1920 x 1200 at 60 Hz
Cable guidelines
The special cables available for connections to each system are carefully constructed with braiding and foil to provide excellent shielding against signal emissions that could otherwise be intercepted. A similarly constructed cable is also available for the monitor connection (VSCD9).
The special cables are already equipped with ferrite cores to support signal suppression. For USB peripheral connections, we strongly recommend adding ferrite cores to these cables (if not already present) to further support emission suppression.
- Shielded interconnect cable (VGA, PS/2 keyboard, PS/2 mouse) Part code: VSCD5 (length 1.8 m)
- Shielded connection cable (VGA, USB keyboard/mouse, USB card reader) Part code: VSCD6 (length 1.8 m / 6 ft.)
- Shielded interconnect cable (VGA, USB keyboard/mouse) Part code: VSCD7 (length 1.8 m / 6 feet)
- Shielded connection cable (VGA only) Part code: VSCD9 (length 1.8 m / 6 feet)
Operating temperature
0 to 40 ° C / 32 to 104 ° F.
Computer connections Transmitter (TX)
2 x USB HID (keyboard/mouse), HD-15 VGA, 2 or 4 x system connection, smart card USB
Physical design
Compact housing, robust metal construction, extensive shielding
Power supply
100-240 V AC 47/63 Hz
