ADDERLink - XD150
DVI, USB 2.0, Audio KVM Extender Set
Producentens varenummer:
XD150
Vores artikelnummer:
490362
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Product information "ADDERLink - XD150"
The ADDERLink XD150 high-performance KVM extender (keyboard, video, mouse) allows you to locate your critical hardware in a secure and temperature-controlled environment away from the user workstation while maintaining the original user desktop experience. The extension of high-resolution video, USB 2.0 and audio signals is complemented by support for a wide range of USB devices.
Optional accessories:

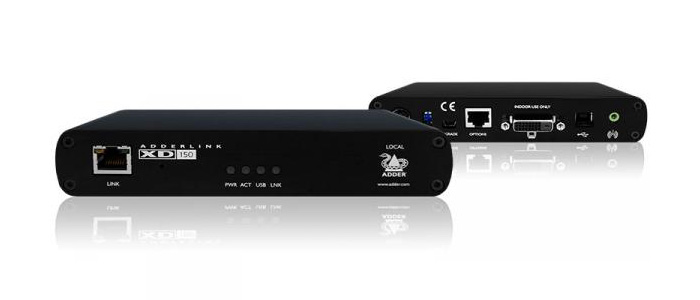

- Set consisting of transmitter and receiver
Optional accessories:
- RMK8: Two XD150 rack brackets incl. four retaining clips and screws.
| Graphic Port: | DVI, HDMI |
|---|---|
| Keyboard & Mouse: | USB |
| Option: | Audio, Point-to-Point |
| Screen: | Single |
Features
Extension distances

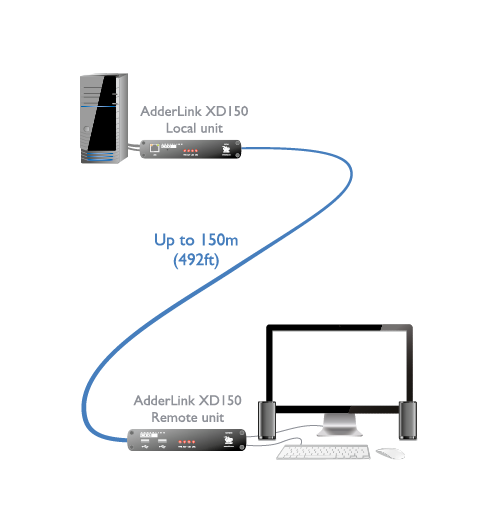

Flexible resolution vs. extension distance options ranging from 150 m extension distance for a single 1920 x 1080 screen to 100 m extension distance for a single 1920 x 1200 screen
Transparent USB 2.0 (low, full, high speed)
For a whole range of USB devices, including keyboards, mice, tablets, touchscreens and mass storage devices connected via the built-in 4-port USB hub
Perfect digital video, real-time control
Uncompressed video extension, transmitting every pixel of every frame lossless and in real time
Simple CATx extension cable
Shared video, USB 2.0, audio and RS232 signals; RS232 can be transferred between units via the option port to a maximum baud rate of 115K2. Adder's RC4 remote key switch is also supported
Plug and Play
Easy installation without additional drivers or software
Locking of the power connections
Locking of the 3-pin DC socket with 2 supplied power supplies
CD-quality analogue audio
44.1 kHz sampled 16-bit stereo channel is available to transmit stereo audio for line out from local to remote
Intelligent operation, compatibility and future-proofing
EDID (Extended Display Identification Data) allows the actual characteristics of the monitor to be returned to the computer. KVM switching mode for optimal KVM device compatibility; the entire system can be flash updated from the computer
Space-saving rackmount kit
Easily accessible 19" rack mount kit with two units per 1U rack space
Extension distances
Flexible resolution vs. extension distance options ranging from 150 m extension distance for a single 1920 x 1080 screen to 100 m extension distance for a single 1920 x 1200 screen
Transparent USB 2.0 (low, full, high speed)
For a whole range of USB devices, including keyboards, mice, tablets, touchscreens and mass storage devices connected via the built-in 4-port USB hub
Perfect digital video, real-time control
Uncompressed video extension, transmitting every pixel of every frame lossless and in real time
Simple CATx extension cable
Shared video, USB 2.0, audio and RS232 signals; RS232 can be transferred between units via the option port to a maximum baud rate of 115K2. Adder's RC4 remote key switch is also supported
Plug and Play
Easy installation without additional drivers or software
Locking of the power connections
Locking of the 3-pin DC socket with 2 supplied power supplies
CD-quality analogue audio
44.1 kHz sampled 16-bit stereo channel is available to transmit stereo audio for line out from local to remote
Intelligent operation, compatibility and future-proofing
EDID (Extended Display Identification Data) allows the actual characteristics of the monitor to be returned to the computer. KVM switching mode for optimal KVM device compatibility; the entire system can be flash updated from the computer
Space-saving rackmount kit
Easily accessible 19" rack mount kit with two units per 1U rack space
Technical details
Approvals / Compliance
All computers with DVI, USB and audio
DVI interface
The system supports resolutions up to 1920 x 1200 at 60 Hz.
USB 2.0
Supports USB 2.0 devices (low, full and high speed). Isochronous devices are supported
Cable guidelines
Important information about the expansion distance
For resolutions above 1920 x 1080, the recommended cables are CAT7 shielded foil twisted pair: Daetwyler 7702 Flexible Patch Cable / Daetwyler 7120 Bulk Cable.
CAT5e (or better) shielded twisted pair cable is recommended for resolutions of 1920 x 1080 and below and must be used to connect local and remote units to ensure compliance with RF emissions regulations and to provide a reasonably high level of immunity to electromagnetic interference.
Note: Distances are achieved with single lengths of trunk / bulk cables using two 2 m CAT7a patch cables
Operating temperature
0 to 40ºC / 32 to 104ºF

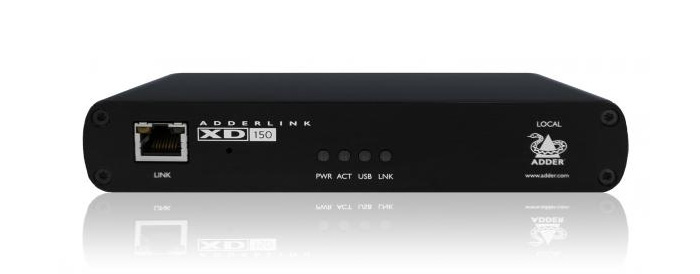

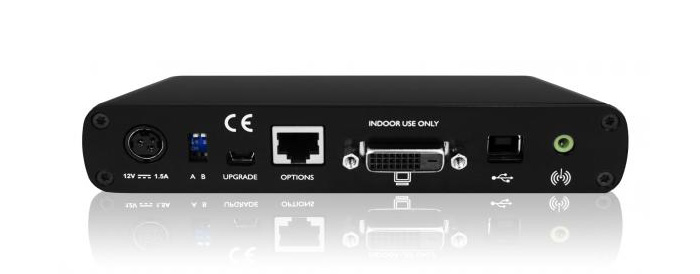

Connections - Transmitter (Tx)
DVI, audio 3.5 mm, USB type B, RS232 10p10c option port, mini-USB for firmware update

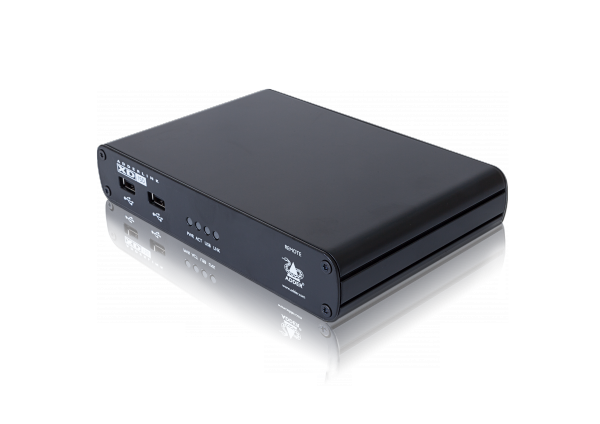

Connections - receiver (Rx)
DVI, audio 3.5 mm output, USB type A x 4, RS232 10p10c option connector
Physical design
3-pin DC locking socket (2 x power supply included), 100-240 V AC 50/60 Hz, 0.7 A, input to power supply unit, 12 V DC 18 W output from power supply unit
Software compatibility
All known operating systems
Approvals / Compliance
- CE
- FCC
All computers with DVI, USB and audio
DVI interface
The system supports resolutions up to 1920 x 1200 at 60 Hz.
USB 2.0
Supports USB 2.0 devices (low, full and high speed). Isochronous devices are supported
Cable guidelines
| Resolution | Cable Type | Patch Connections | Distance |
|---|---|---|---|
| 1920x1200@60Hz | CAT7 Patch | 2 | 100 Meter |
| 1920x1080@60Hz | CAT5e | 2 | 150 Meter |
Important information about the expansion distance
For resolutions above 1920 x 1080, the recommended cables are CAT7 shielded foil twisted pair: Daetwyler 7702 Flexible Patch Cable / Daetwyler 7120 Bulk Cable.
CAT5e (or better) shielded twisted pair cable is recommended for resolutions of 1920 x 1080 and below and must be used to connect local and remote units to ensure compliance with RF emissions regulations and to provide a reasonably high level of immunity to electromagnetic interference.
Note: Distances are achieved with single lengths of trunk / bulk cables using two 2 m CAT7a patch cables
Operating temperature
0 to 40ºC / 32 to 104ºF
Connections - Transmitter (Tx)
DVI, audio 3.5 mm, USB type B, RS232 10p10c option port, mini-USB for firmware update
Connections - receiver (Rx)
DVI, audio 3.5 mm output, USB type A x 4, RS232 10p10c option connector
Physical design
- Compact housing, rugged metal construction
- 169 mm (6.65 in. (W), 31 mm (1.22 in. (H)), 120 mm (4.8 in. (D))
- Weight: 600 g
3-pin DC locking socket (2 x power supply included), 100-240 V AC 50/60 Hz, 0.7 A, input to power supply unit, 12 V DC 18 W output from power supply unit
Software compatibility
All known operating systems
