ADDERLink - X-DVIPRO-MS2
USB & Dual Head Single Link DVI KVMA CATx Extender Pair
Listepris:
10.243,75 kr.*
Forhandlerpris - Login
3 stykker til rådighed, leveringstid: 2 - 3 arbejdsdage
Producentens varenummer:
X-DVIPRO-MS2
Vores artikelnummer:
490296
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
-
Beskrivelse As part of the ADDERLink X-DVI PRO range, the powerful X-DVI PRO-MS digital KVM (keyboard, video and mouse) and USB extende… Mere
-
Egenskaber Features Pixel-perfect digital video with real-time control. Uses uncompressed video extension; no visible artefacts or lat… Mere
-
Tekniske detaljer Technical details Audio The system provides analogue stereo audio (line out). 8 HDMI audio channels are provided with sampl… Mere
-
Datablad
-
Tilbehør
Produktinformation "ADDERLink - X-DVIPRO-MS2"

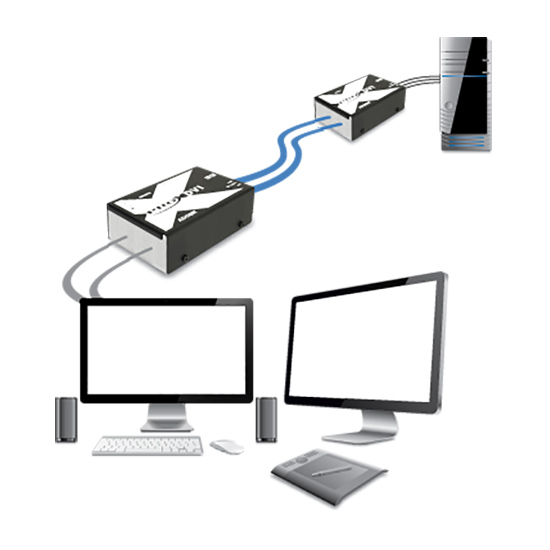

As part of the ADDERLink X-DVI PRO range, the powerful X-DVI PRO-MS digital KVM (keyboard, video and mouse) and USB extender allows you to locate your critical computer hardware in a secure and temperature-controlled environment. Uncompressed digital video and audio is distributed to multiple screens in real time and without latency, allowing users to maintain a PC experience. The USB 2.0 interface ensures compatibility with a wide range of USB devices. It can transmit two single link DVI video streams, USB 2.0 and analogue audio up to 50 m over two CATx cables to multiple screens.
Optional accessories:
- Set consisting of transmitter and receiver
- Delivers uncompressed digital video with audio
- USB 2.0 low and full speed connection: To interface with a range of devices
- Accurately distributes content on the local monitor: up to 50 m over a single CATx cable
- Energy-efficient design: external power supplies are not required
- X-DVIPRO-MS: Enables two screens with a maximum resolution of 1920 x 1200 at 60 Hz
Optional accessories:
- X-RMK-CHASSIS: Rack-mount housing
- X-RMK-FASCIA-DUAL: Rack-mounting kit for X-DVIPRO-MS2
Graphic Port: | DVI, HDMI |
---|---|
Keyboard & Mouse: | USB |
Option: | Audio, Point-to-Point |
Screen: | Multi |
Features
Pixel-perfect digital video with real-time control.
Uses uncompressed video extension; no visible artefacts or latency are introduced, so you can be confident of quality and control.
Distribution of up to 50 m over a single CATx cable
Video, USB 2.0 (low and full speed) and audio are transmitted over a single cable, providing up to 50 m extension (distance depends on video resolution, CATx cable type and number of connections).
Connect any USB interface device
The ADDERLink X-DVIPRO extenders use a unique method of USB communication and offer the highest level of USB compatibility. All low/full speed USB 1.1 and 2.0 devices are supported.
HDMI video and audio extension functions
Digital audio for 8 HDMI audio channels supported simultaneously with analogue audio.
Pixel-perfect digital video with real-time control.
Uses uncompressed video extension; no visible artefacts or latency are introduced, so you can be confident of quality and control.
Distribution of up to 50 m over a single CATx cable
Video, USB 2.0 (low and full speed) and audio are transmitted over a single cable, providing up to 50 m extension (distance depends on video resolution, CATx cable type and number of connections).
Connect any USB interface device
The ADDERLink X-DVIPRO extenders use a unique method of USB communication and offer the highest level of USB compatibility. All low/full speed USB 1.1 and 2.0 devices are supported.
HDMI video and audio extension functions
Digital audio for 8 HDMI audio channels supported simultaneously with analogue audio.
Technical details
Audio
The system provides analogue stereo audio (line out). 8 HDMI audio channels are provided with sample sizes of 16, 20 or 24 bits at 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz or 192 kHz (simultaneously with the jack).
Approvals / Compliance
Recommended cables are CAT7 shielded, foil twisted pairs:
Operating temperature
0 to 40 ° C / 32 to 104 ° F.
Connections - Transmitter (Tx)
2x DVI-D, Audio 3.5 mm, USB type B.
Connections - receiver (Rx)
2x DVI-D, audio 3.5 mm output, USB type A x 4.
Physical design
Compatible with all known operating systems
Audio
The system provides analogue stereo audio (line out). 8 HDMI audio channels are provided with sample sizes of 16, 20 or 24 bits at 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz or 192 kHz (simultaneously with the jack).
Approvals / Compliance
- CE
- FCC
- DVI-D Interface - Digital Only The system supports resolutions up to 1920 x 1200 at 60 Hz
- Hardware Compatibility: All computers with DVI-D, USB and audio - as required.
- Transparent USB 2.0 (low and full speed) supporting HID and mass storage devices up to a maximum of 50 m. (Reduce the maximum cable length by 5 m if a USB hub is connected to the receiver unit).
Recommended cables are CAT7 shielded, foil twisted pairs:
- Daetwyler 7702 Flexible Patch Cable.
- Daetwyler 7120 Bulk Cable
Operating temperature
0 to 40 ° C / 32 to 104 ° F.
Connections - Transmitter (Tx)
2x DVI-D, Audio 3.5 mm, USB type B.
Connections - receiver (Rx)
2x DVI-D, audio 3.5 mm output, USB type A x 4.
Physical design
- Compact housing, robust metal construction
- 120 mm / 4,7" (W) x 75 mm / 3" (D) x 48 mm / 2" (H)
- Weight: 500 g
- Rx: 2.5 mm DC jack (power supply included), 100-240 VAC, 50/60 Hz, 0.4 A, input to power supply, 5 VDC, 12.5 W output from power supply.
- TX: Powered by a single USB connection. Optional 2.5 mm DC socket (power supply not included).
Compatible with all known operating systems
