ADDERLink - IPEPS-PLUS
5.609,85 kr.*
5 stykker til rådighed, leveringstid: 2 - 3 arbejdsdage
-
Beskrivelse The ADDERLink ipeps+ is a powerful and flexible KVM-over-IP product contained in a compact unit that provides secure, remot… Mere
-
Egenskaber Features Independent operation Allows full control even during start-up, BIOS level or crash status of the computer. The AD… Mere
-
Tekniske detaljer Technical details Controlled computer connections HDMI and USB Type B. Supports USB1.1 and USB2.0 HID devices (keyboard, m… Mere
-
Datablad
-
Tilbehør
The ipeps+ uses RealVNC client software specifically designed for secure, high-performance KVM-over-IP applications.
- Access multi-screen computers
- High-performance video streaming at up to 1920 x 1200 resolution at 30 frames per second
- Non-blocking access for up to 8 remote and one local user
- Compact metal housing
Optional accessories:
- RMK5V: VESA mounting kit (incl. screws).
- RMK10: Wall/table mounting kit (incl. screws)
- RMK8: double rack-mounting bracket incl. four retaining clips and bolts
Graphic Port: | HDMI |
---|---|
Local Users: | 1 User |
Remote Users: | 8 Users |
Independent operation
Allows full control even during start-up, BIOS level or crash status of the computer. The ADDERLink ipeps+ works even when the controlled device is not operational.
High video performance
The ipeps+ accepts HDMI input at 1920 x 1200 resolution. It includes RealVNC's popular VNC viewer, which allows frame rates of up to 30 fps, depending on available network bandwidth and content. Alternatively, it can be used with any VNC viewer that supports RFB v3 or v4. The unit can be connected to computers with DVI or DisplayPort DP++ (dual mode) using a converter cable.
High security
Enterprise-grade security (with AES 128- or 256-bit encryption and RSA 2048-bit public key authentication) is used as standard. This is further enhanced by VNC, which enables the creation of encrypted user communications.
User management
The ipeps+ can create up to 16 user profiles with defined access rights. LDAP integration with Active Directory is provided for enterprise-level user authentication. Up to 8 remote users can access the unit simultaneously.
EDID Management
The ipeps+ has intelligent EDID management that allows the user to define the video modes generated by the controlled device.
Local Consoles
KVM connections are available for local user access. This can be useful for emergency and system maintenance activities.
Computers with multiple screens
Access computers with up to 4 screens. Requires a computer operating system that supports absolute mouse mode. A separate ipeps+ and VNC Viewer is required for each screen.
Virtual media
The ipeps+ can be used as a channel to transfer files in both directions between remote users and the controlled computer.
Remote gateway to ADDERLink Matrix products
The ipeps+ can be used as a remote gateway to the ADDERLink INFINITY, DDX and XDIP matrix systems as well as the ADDERView 4 PRO switch. In this way, remote users can access any computer connected to the switch.

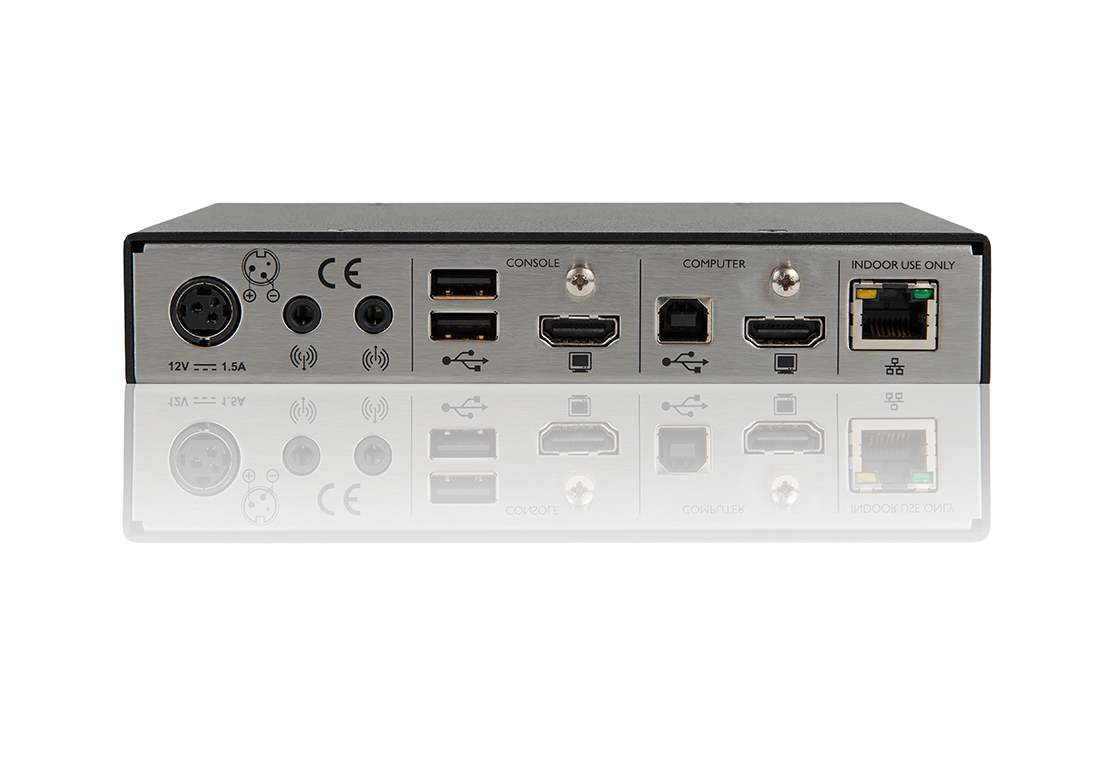

Controlled computer connections
- HDMI and USB Type B.
- Supports USB1.1 and USB2.0 HID devices (keyboard, mouse, tablet and touch).
- Can be connected to DVI and DisplayPort with suitable adapters
The system supports resolutions up to 1920 x 1200 at 60 Hz.
Software compatibility
- All known operating systems
- No drivers required
RJ45 (8p8c) Ethernet port
Local console connections
- HDMI, 3x USB type A.
- Audio 3.5 mm

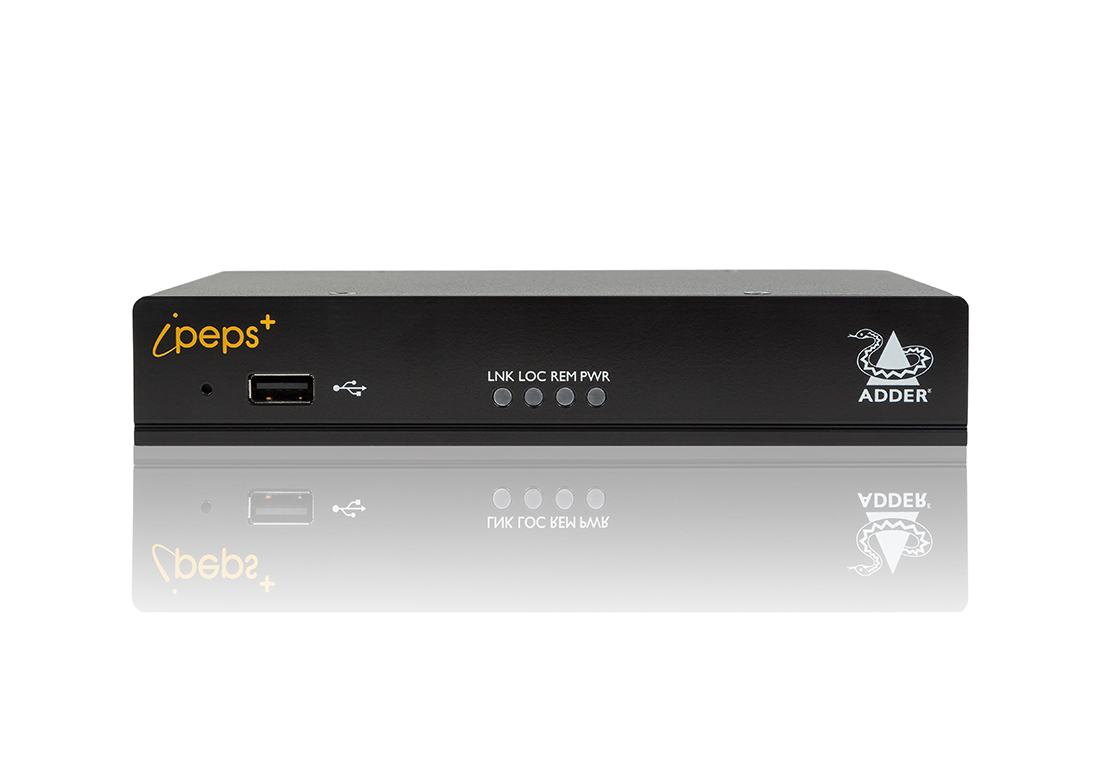

LED status indicators for network (LNK), local user connection (LOC), remote user connection (REM) and power / upgrade (PWR).
Physical design
- Compact housing, robust metal construction
- Dimensions: 169 mm (W) x 31 mm (1.22 in (H) x 120 mm / 4.8 in (D))
- Weight: 0.6 kg
- 100-240 VAC, 47 / 63Hz
- 12 VDC 18 W output from power supply
0ºC to 40ºC / 32ºF to 104ºF
Approvals
CE, FCC
