ADDERLink INFINITY dual - ALIF2000R
Dual-head receiver: 2 x DVI, USB, audio, RS232 via IP, receiver only
Producentens varenummer:
ALIF2000R
Vores artikelnummer:
490307
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktets levetid er udløbet!
Opfølgende produkt:
Produktinformation "ADDERLink INFINITY dual - ALIF2000R"
Network DVI Extender - 2560 x 1600@60Hz maximum resolution: 2560 x 1600 or two 1920 x 1200 sessions.
AdderLink Infinity dual is a high performance KVM extender (keyboard, video and mouse) that is part of the ALIF matrix solution. This allows you to place your sensitive computer hardware in a safe and temperature-controlled environment away from work areas. The existing display on the desktop is not affected by this.
Description
The next addition to the ADDERLink INFINITY digital KVM matrix range.
With ADDERLink INFINITY dual, you can build a flexible infrastructure like never before. Place computers anywhere, share connections to computers, monitor others' interactions with computers, share control, collaborate, switch computers and so on.
The ADDERLink INFINITY range is also the first of its kind to enable multicasting over your network. The ADDERLink INFINITY provides dual interfaces for USB peripherals such as a keyboard, mouse or graphics tablet along with DVI for video display over a Layer 3 standard Gigabit Ethernet network, on copper or fibre.
Dual Link DVI - Dual Head DVI - Dual IP Carrier Type (Copper & Fibre)
Fully compatible with the ADDERLink INFINITY Matrix range.
Scope of delivery: receiver, power supply, rubber feet, quick start guide.
Optional accessories:
AdderLink Infinity dual is a high performance KVM extender (keyboard, video and mouse) that is part of the ALIF matrix solution. This allows you to place your sensitive computer hardware in a safe and temperature-controlled environment away from work areas. The existing display on the desktop is not affected by this.
- Requires transmitter (transmitter unit) - ADDERLink INFINITY dual - ALIF2002T
Description
The next addition to the ADDERLink INFINITY digital KVM matrix range.
With ADDERLink INFINITY dual, you can build a flexible infrastructure like never before. Place computers anywhere, share connections to computers, monitor others' interactions with computers, share control, collaborate, switch computers and so on.
The ADDERLink INFINITY range is also the first of its kind to enable multicasting over your network. The ADDERLink INFINITY provides dual interfaces for USB peripherals such as a keyboard, mouse or graphics tablet along with DVI for video display over a Layer 3 standard Gigabit Ethernet network, on copper or fibre.
Dual Link DVI - Dual Head DVI - Dual IP Carrier Type (Copper & Fibre)
Fully compatible with the ADDERLink INFINITY Matrix range.
Scope of delivery: receiver, power supply, rubber feet, quick start guide.
Optional accessories:
- RMK4V: VESA mount (screws included), can also be used for mounting on walls and surfaces.
- Two mounting brackets for 19-inch racks (screws included):
- RMK4S: for one unit per 1 U rack insertion.
- RMK4D: for 2 units per 1 U rack insertion
- VSCD1: single-link DVI-D to DVI-D video cable
- VSC24: USB cable, 2 m (type A to B)
- SFP-MM-LC: Multimode fibre SFP module with LC connectors for up to 500m
- SFP-SM-LC: Singlemode fibre SFP module with LC connectors for up to 10km
- SFP-CATX- RJ45: SFP to CATx converter module
| Classification: | Enterprise |
|---|---|
| Graphic Port: | DVI |
| Keyboard & Mouse: | USB |
| Option: | Audio |
| Power Supply: | Single AC |
| Remote Users: | 2 Users |
| Screen: | Multi |
Features
- Standard IP network
- Ideal for CAT5/6/7 cables - see data sheet for recommendation
- Compatible: SUN, PC, Mac
- Interfaces: DVI, USB, RS232, RJ45
- Audio connection
- HD KVM Full 1080p
- 24 bit colours
- Plug and Play
- 100m extension distance over a single CATx; unlimited over a standard IP network
- 500m to 10km over fibre
- Dual Link or Dual Head configuration
- 2560 x 1600@60Hz maximum resolution 2560x 1600 or two 1920x 1200 sessions
- Supports USB mass storage, keyboard, mouse, tablet and touch
- Support for MacPro
- Redundant network operation
- Compatible with AdderLink Infinity Matrix
Technical details
Hardware compatibility
All computers with DVI (incl. Dual Head and Dual Link), USB, Audio, RS232 - depending on requirements.
Software compatibility
All known operating systems
Connections Transmitter (Tx)
DVI-D x 2, Audio 3.5mm in, Audio 3.5mm out, USB type B, RS232 9 pin D-Type, SFP slot

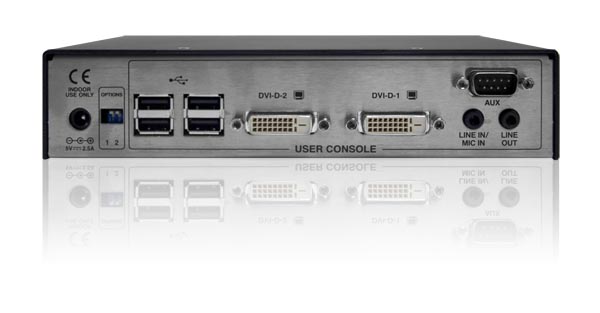

Receiver connections (Rx)
Video: DVI-D x 2, Audio 3.5mm in, Audio 3.5mm out, USB type A x 4, RS232 9 pin D-Type, SFP slot
Physical design
1 U compact housing, robust metal construction. 198mm/7.92" (W), 44mm/1.76" (H), 150mm/6" (D), 1.1kg/2.7lbs.
Power
2.5mm DC socket (mains adapter included), 100-240VAC 50/60Hz, 0.4A, input to mains adapter, 5VDC 12.5W output from mains adapter
Operating temperature
0 to 40 degrees C / 32 to 104 degrees F
Approvals
CE, FCC
Perfect digital video signals, real-time control
Using a spatially lossless encoding system with 1:1 pixel mapping, AdderLink Infinity delivers pixel-perfect and colour-accurate video without artefacts. The digital video you receive is the same as the digital video leaving the remote computer.
Dual Link or Dual Head DVI
The ADDERLink INFINITY dual provides full DVI connectivity for dual link or dual head applications. DVI delivers native digital video signals from your computer to your digital panel (e.g. LCD) without the need to convert signal types from the digital domain. By delivering native digital video throughout the ADDERLink INFINITY network, you can be assured of the accuracy of every pixel.
Network Topology - CATx or Fibre Optic
You can configure your network topology to best suit your needs. If you simply want to extend a computer Tx to a user Rx, you can do so by connecting both Tx and Rx units via low-cost CATx cable or fibre. There is no limit to the distance - a single copper network cable can carry IP traffic up to 100 meters away. If you want to go further, simply add a network switch to reach another 100 meters. This can be done as often as you like. The ADDERLink INFINITY network is considered a private network that you manage. As such, you can control the maximum data rates generated by each Tx unit to ensure absolute stability.
Perfect digital video signals
The ADDERLink INFINITY uses multiple video coding technologies developed by Adder to deliver the best possible picture. Our encoding systems are spatially lossless, with 1:1 pixel mapping, so the digital video you receive is the same as the digital video leaving the remote computer.
True USB emulation
Like the ADDERLink INFINITY, the ADDERLink INFINITY dual allows you to connect any USB human interface device from mice and keyboards to graphics tablets, jog shuttles, joysticks and 3D explorers. In addition, most other USB devices can also be connected, such as mass storage devices.
USB 2.0
The ADDERLink INFINITY dual uses USB 2.0 to connect to your keyboard and mouse and any other peripheral you want to use. USB is the most widely used interface standard for computer peripherals.
Digital Stereo Audio
ADDERLink INFINITY dual delivers crystal-clear stereo audio digitally over the network. This ensures continuous fidelity and channel separation between the Tx and Rx units or even in multicast environments.
A.I.M./API Control
Using A.I.M. provides access to advanced management features, including an EPG-style window that appears in front of the user's screen showing the channels available to them. An administrator can set different channels and permissions for each user.
RS232 interface
The ADDERLink INFINITY dual has a bi-directional RS232 interface that can be used to connect devices such as touch screens, simple printers or to control external devices and provide feedback from remote data sources.
Hardware compatibility
All computers with DVI (incl. Dual Head and Dual Link), USB, Audio, RS232 - depending on requirements.
Software compatibility
All known operating systems
Connections Transmitter (Tx)
DVI-D x 2, Audio 3.5mm in, Audio 3.5mm out, USB type B, RS232 9 pin D-Type, SFP slot
Receiver connections (Rx)
Video: DVI-D x 2, Audio 3.5mm in, Audio 3.5mm out, USB type A x 4, RS232 9 pin D-Type, SFP slot
Physical design
1 U compact housing, robust metal construction. 198mm/7.92" (W), 44mm/1.76" (H), 150mm/6" (D), 1.1kg/2.7lbs.
Power
2.5mm DC socket (mains adapter included), 100-240VAC 50/60Hz, 0.4A, input to mains adapter, 5VDC 12.5W output from mains adapter
Operating temperature
0 to 40 degrees C / 32 to 104 degrees F
Approvals
CE, FCC
Perfect digital video signals, real-time control
Using a spatially lossless encoding system with 1:1 pixel mapping, AdderLink Infinity delivers pixel-perfect and colour-accurate video without artefacts. The digital video you receive is the same as the digital video leaving the remote computer.
Dual Link or Dual Head DVI
The ADDERLink INFINITY dual provides full DVI connectivity for dual link or dual head applications. DVI delivers native digital video signals from your computer to your digital panel (e.g. LCD) without the need to convert signal types from the digital domain. By delivering native digital video throughout the ADDERLink INFINITY network, you can be assured of the accuracy of every pixel.
Network Topology - CATx or Fibre Optic
You can configure your network topology to best suit your needs. If you simply want to extend a computer Tx to a user Rx, you can do so by connecting both Tx and Rx units via low-cost CATx cable or fibre. There is no limit to the distance - a single copper network cable can carry IP traffic up to 100 meters away. If you want to go further, simply add a network switch to reach another 100 meters. This can be done as often as you like. The ADDERLink INFINITY network is considered a private network that you manage. As such, you can control the maximum data rates generated by each Tx unit to ensure absolute stability.
Perfect digital video signals
The ADDERLink INFINITY uses multiple video coding technologies developed by Adder to deliver the best possible picture. Our encoding systems are spatially lossless, with 1:1 pixel mapping, so the digital video you receive is the same as the digital video leaving the remote computer.
True USB emulation
Like the ADDERLink INFINITY, the ADDERLink INFINITY dual allows you to connect any USB human interface device from mice and keyboards to graphics tablets, jog shuttles, joysticks and 3D explorers. In addition, most other USB devices can also be connected, such as mass storage devices.
USB 2.0
The ADDERLink INFINITY dual uses USB 2.0 to connect to your keyboard and mouse and any other peripheral you want to use. USB is the most widely used interface standard for computer peripherals.
Digital Stereo Audio
ADDERLink INFINITY dual delivers crystal-clear stereo audio digitally over the network. This ensures continuous fidelity and channel separation between the Tx and Rx units or even in multicast environments.
A.I.M./API Control
Using A.I.M. provides access to advanced management features, including an EPG-style window that appears in front of the user's screen showing the channels available to them. An administrator can set different channels and permissions for each user.
RS232 interface
The ADDERLink INFINITY dual has a bi-directional RS232 interface that can be used to connect devices such as touch screens, simple printers or to control external devices and provide feedback from remote data sources.
